Products

Aluminum Shredding Equipment

Select equipment according to material type, feeding size, required capacity, output size and downstream recycling process.

Ask For Recommendation

Can Flattening Machine

Can flattening machine for reducing the volume of loose aluminum cans, UBCs and tinplate cans before storage, transportation, baling or further recycling.

Power: 3kW-10kW
Capacity: 0.6t/h-5t/h(View Specs)
Processing effect: Can flattening and forming
Applicable materials: Loose aluminum beverage cans, used beverage cans, tinplate cans, steel cans and other empty light-gauge metal containers within the machine feeding limits. Sealed, pressurized, contaminated or hazardous containers require separate preparation.

View Details →

Aluminum Crankcase Shredder

Aluminum crankcase shredder for low-speed coarse opening and pre-treatment of suitable housings before inspection, separation or secondary crushing.

Power: 2×11 kW–90 kW motors
Capacity: 0.6t/h-6t/h(View Specs)
Processing effect: 50–300 mm, coarse and irregular output
Applicable materials: Prepared aluminum crankcases, engine housings, gearbox housings, transmission housings, motor housings and other bulky hollow cast aluminum parts.

View Details →

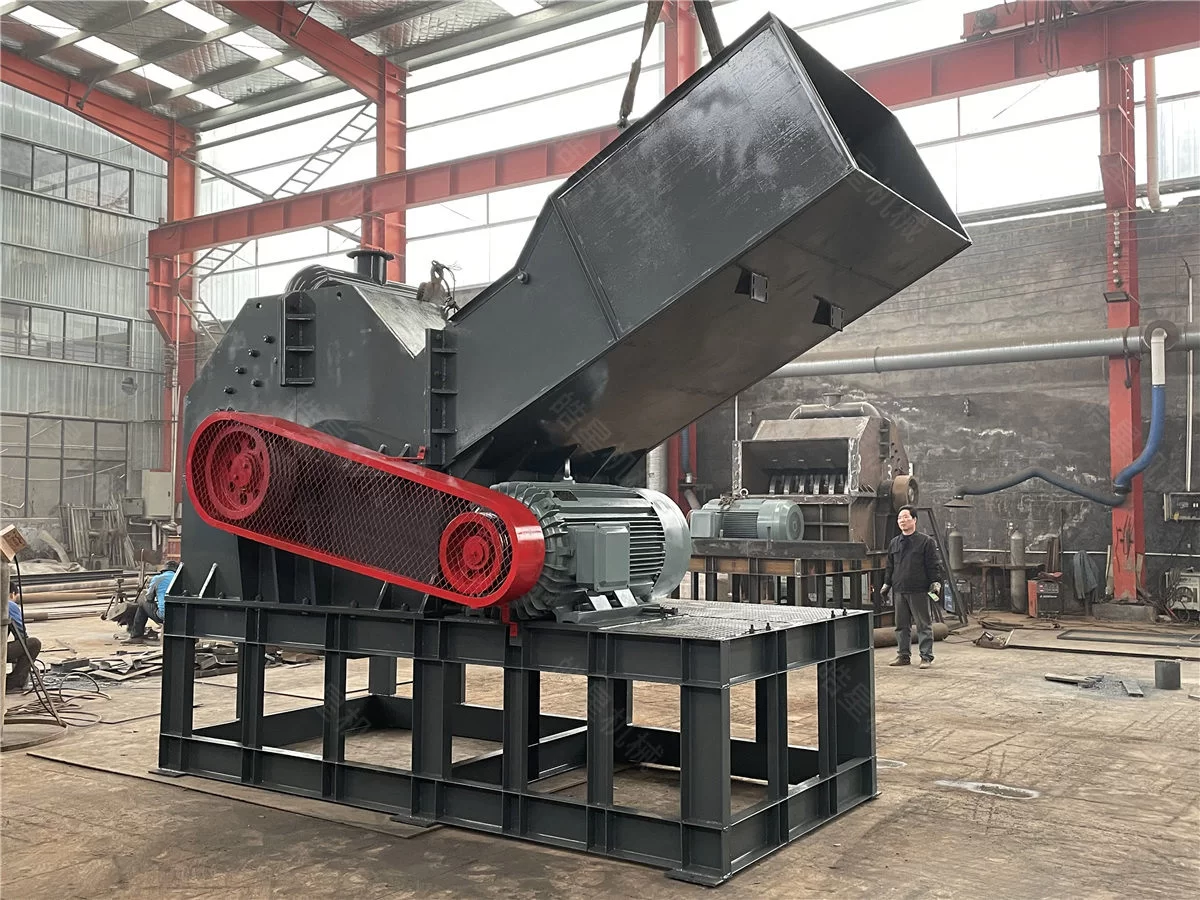

Aluminum Alloy Crusher

Hammer crusher for prepared aluminum alloy sheet offcuts, stamping skeletons, extrusion waste and sorted wrought alloy components.

Power: 30kW-200kW(View Specs)
Capacity: 0.8t/h-15t/h(View Specs)
Processing effect: 20mm-100mm(Screen Customization Available)
Applicable materials: Prepared aluminum alloy sheet offcuts, stamping skeletons, extrusion production waste, cut profile remnants, rejected wrought aluminum components and other sorted manufacturing scrap within the crusher feeding limits.

View Details →

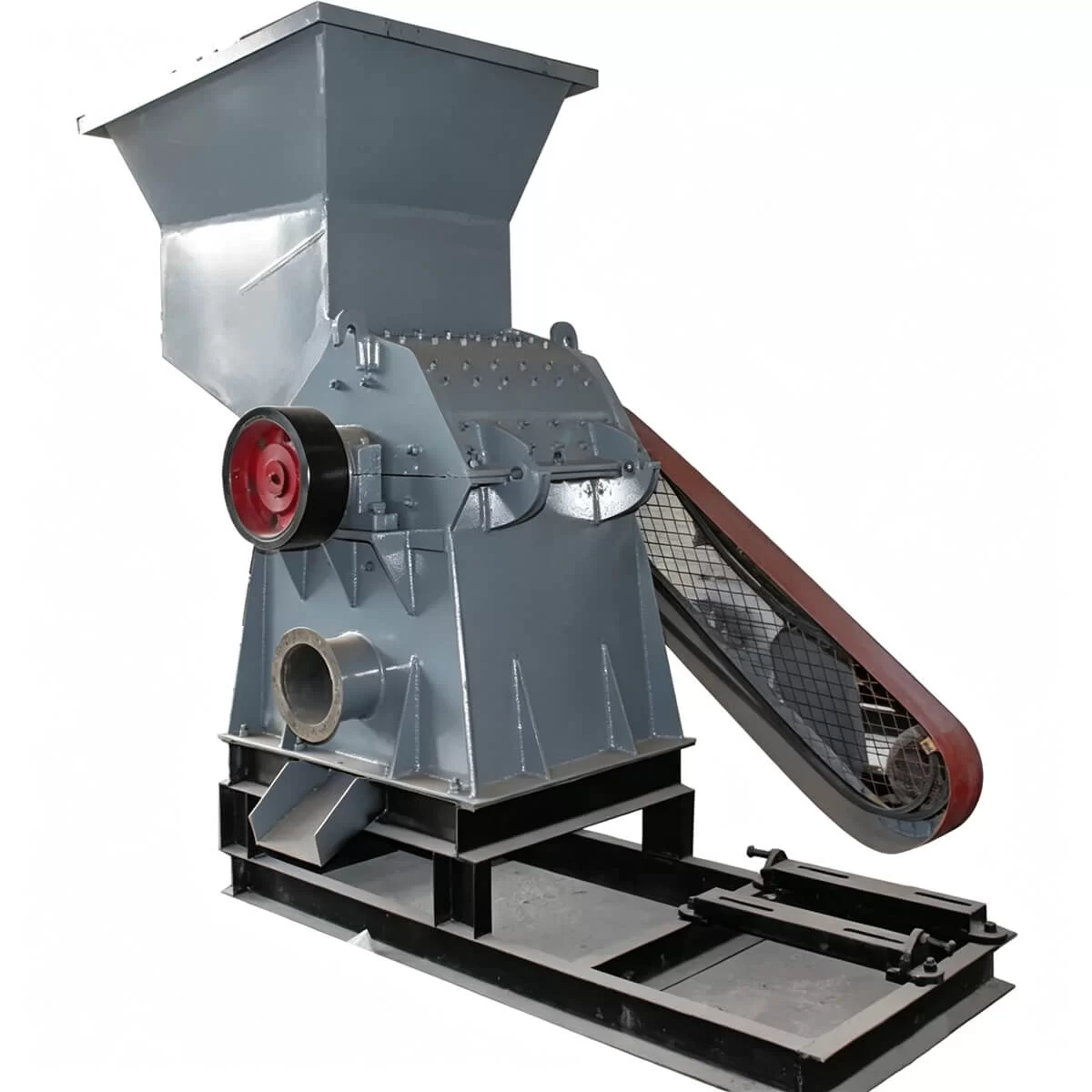

Can Crusher

Haoxing Machinery can crusher is used for crushing aluminum cans, UBC cans, beverage cans, tinplate cans and light metal containers, making materials easier to transport, bale, sort and recycle.

Power: 30kW-200kW(View Specs)
Capacity: 0.6t/h-10t/h(View Specs)
Processing effect: 20mm-100mm(Screen Customization Available)
Applicable materials: Prepared aluminum beverage cans, used beverage cans, tinplate cans, steel cans, flattened can scrap, light-gauge metal packaging and selected thin metal containers. Sealed, pressurized, flammable or contaminated containers require separate preparation before processing.

View Details →

Thermal Break Aluminum Pulverizer

Hammer-type pulverizer for further size reduction and material liberation of pre-shredded or initially crushed thermal break aluminum.

Power: 30kW-450kW(View Specs)
Capacity: 0.8t/h-15t/h(View Specs)
Processing effect: 20mm-100mm(Screen Customization Available)
Applicable materials: Prepared thermal break aluminum fragments, pre-cut aluminum profile sections, initially crushed aluminum-plastic material, extrusion offcuts and other suitable aluminum profile scrap within the pulverizer feeding limits.

View Details →

Scrap Aluminum Crusher

Hammer-type scrap aluminum crusher for prepared aluminum sheets, profile sections, light alloy offcuts and selected mixed aluminum scrap.

Power: 30kW-450kW(View Specs)
Capacity: 0.8t/h-15t/h(View Specs)
Processing effect: 20mm-100mm(Screen Customization Available)
Applicable materials: Prepared aluminum sheet offcuts, pre-cut aluminum profiles, extrusion production waste, light aluminum alloy scrap, empty aluminum containers, small cast aluminum parts and selected mixed aluminum scrap within the crusher feeding limits.

View Details →

Cast Aluminum Parts Crusher

Cast aluminum parts crusher for prepared housings and casting components with known dimensions, wall thickness and steel-insert conditions.

Power: 30kW-450kW
Capacity: 0.6t/h-18t/h(For details, see the model specifications table)
Processing effect: 20mm-100mm(Screen Customization Available)
Applicable materials: Prepared cast aluminum parts, dismantled cast housings, rejected die-cast components, broken aluminum castings and bulky cast aluminum parts within the crusher feeding limits.

View Details →

Cast Aluminum Crusher

Cast aluminum crusher selection page covering mixed cast-aluminum feed conditions, steel-insert inspection, wall thickness and required discharge size.

Power: 30kW-450kW(View Specs)
Capacity: 0.8t/h-15t/h(View Specs)
Processing effect: 20mm-100mm(Screen Customization Available)
Applicable materials: Prepared foundry aluminum castings, aluminum sprues and runners, rejected cast parts, broken casting offcuts, machinery aluminum fragments and selected mixed cast aluminum scrap within the crusher feeding limits.
Complete engine or transmission assemblies, oversized castings, components containing large steel shafts, sealed cavities, residual oil and unidentified internal parts require dismantling or separate preparation before crushing.

View Details →

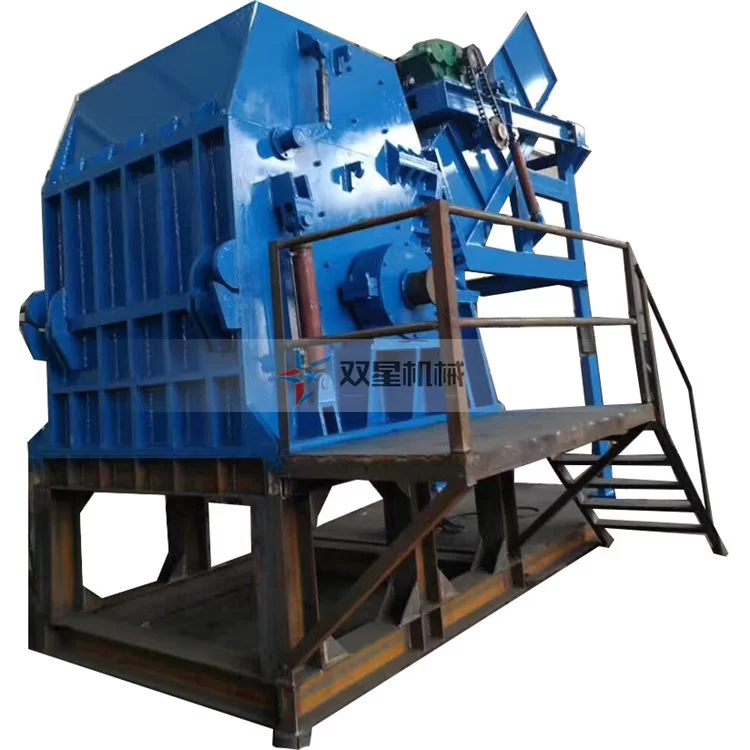

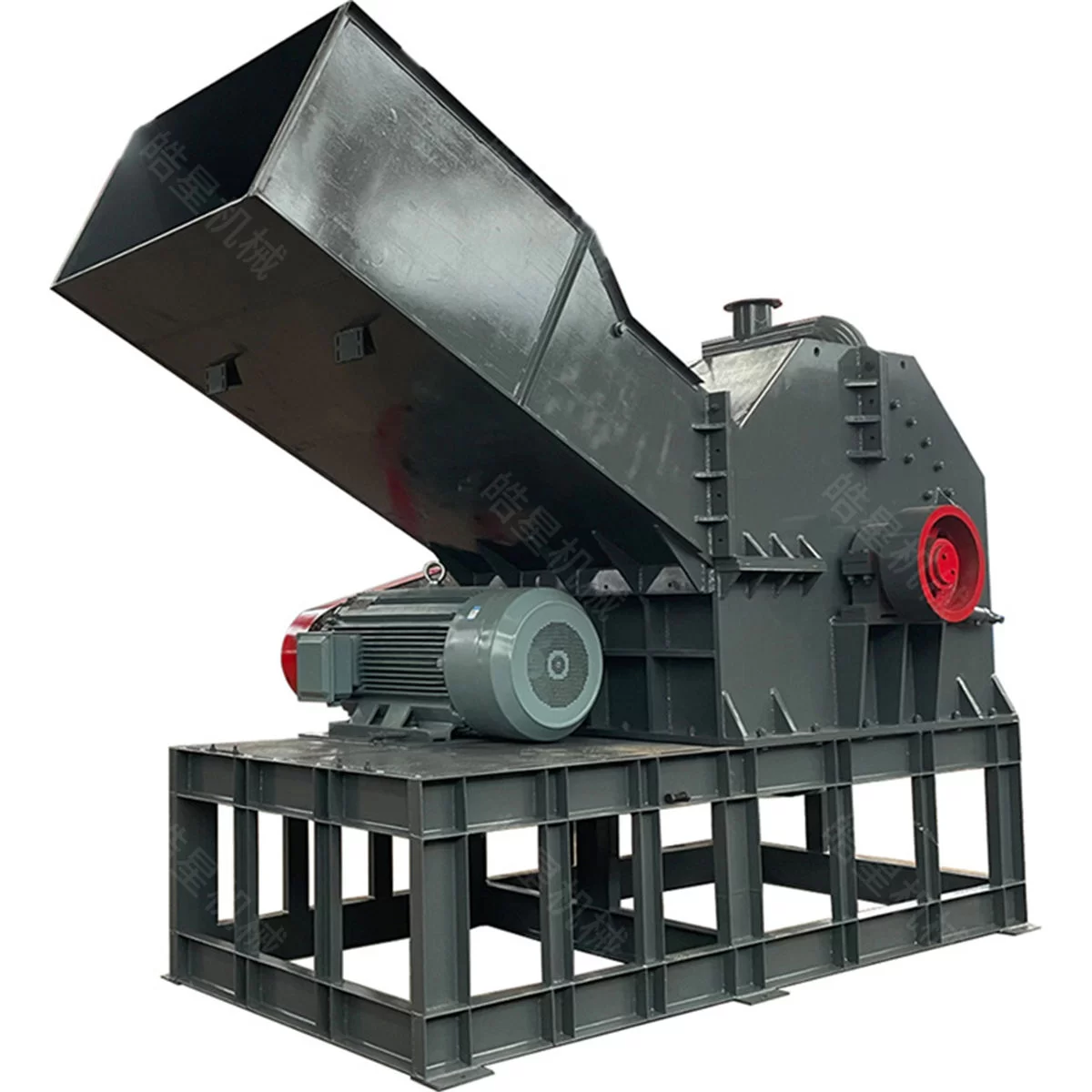

Aluminum Profile Crusher

Hammer-type aluminum profile crusher for prepared profile sections, extrusion offcuts and window frame scrap before magnetic and downstream separation.

Power: 30kW-450kW(View Specs)
Capacity: 0.8t/h-15t/h(View Specs)
Processing effect: 20mm-100mm(Screen Customization Available)
Applicable materials: Prepared aluminum tubing, pre-cut window and door frame sections, curtain wall extrusion offcuts, short thermal break aluminum profiles, decorative profile offcuts and other aluminum extrusion scrap within the crusher feeding limits.

View Details →

Aluminum Sprue and Runner Crusher

Hammer crusher for prepared aluminum sprues, runners, gates, overflow scrap and classified foundry returns before conveying or remelting.

Power: 30kW-450kW(View Specs)
Capacity: 0.8t/h-15t/h(View Specs)
Processing effect: 20mm-100mm(Screen Customization Available)
Applicable materials: Prepared aluminum sprues, runners, gates, overflow scrap, rejected castings and classified aluminum foundry returns within the crusher feeding limits.

View Details →

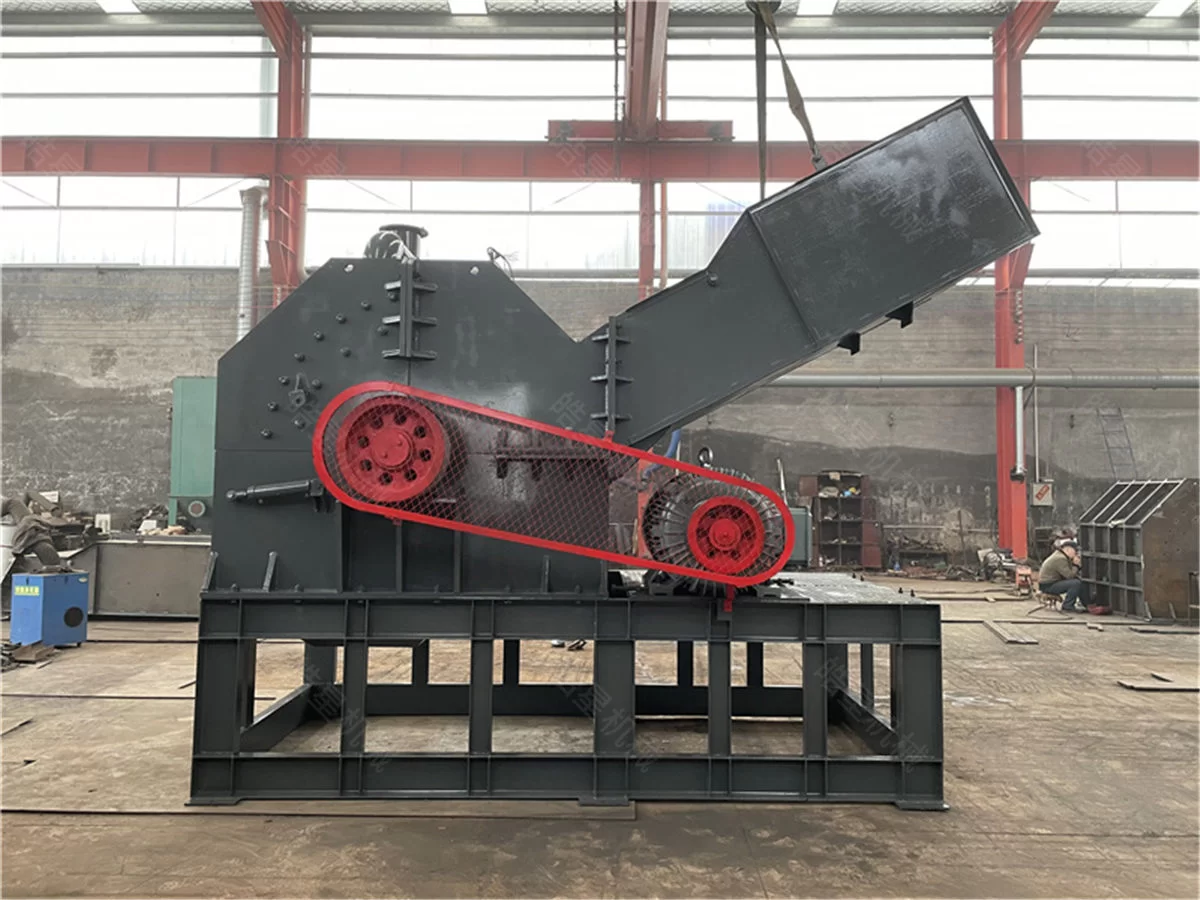

Aluminum Dross Crusher

Hammer-type aluminum dross crusher for cooled solid aluminum slag, producing screen-controlled fractions for screening and downstream metal recovery.

Power: 30kW-450kW(View Specs)
Capacity: 0.8t/h-15t/h(View Specs)
Processing effect: 20mm-100mm(Screen Customization Available)
Applicable materials: Cooled solid aluminum dross, stable aluminum slag lumps, foundry aluminum residue containing recoverable metallic aluminum and other mechanically stable aluminum-containing solid material suitable for hammer crushing.

View Details →

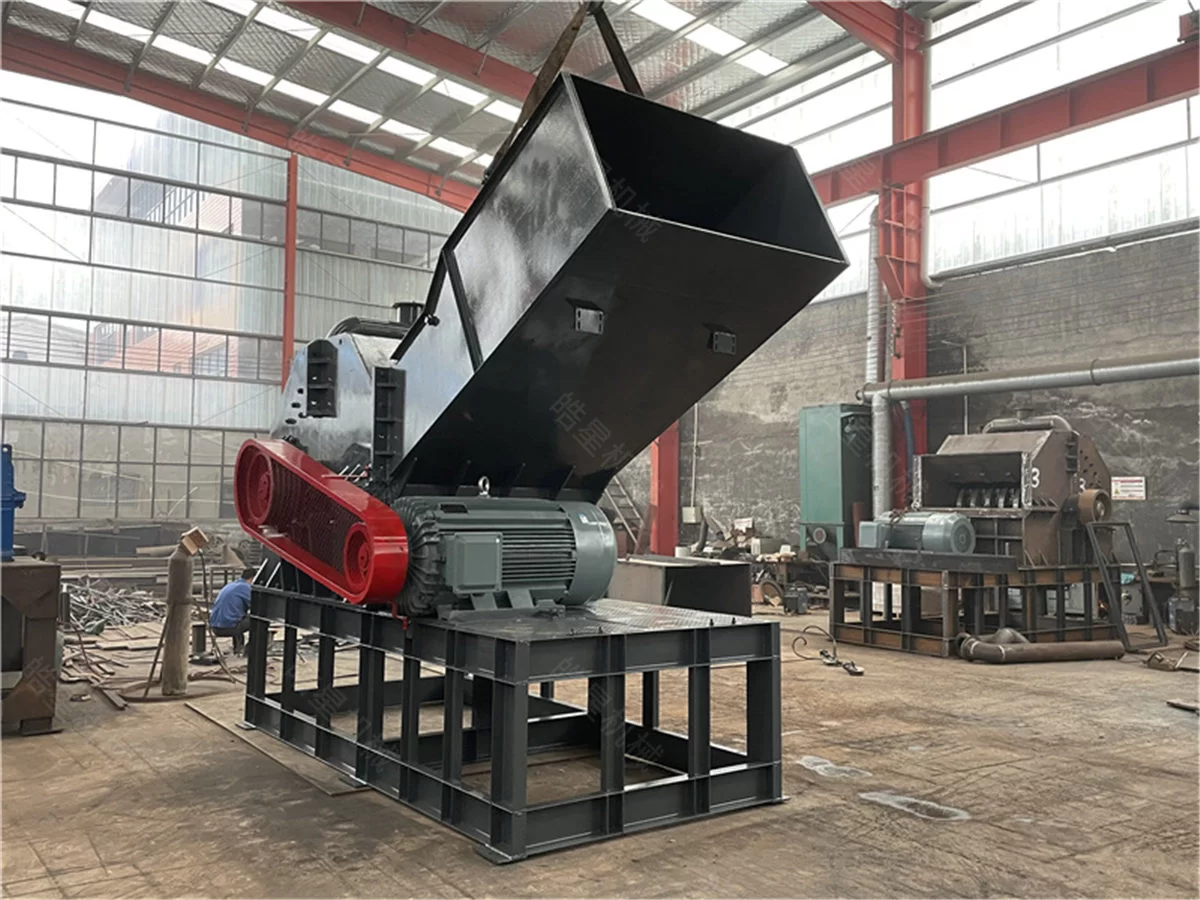

AC Recycling Crusher

Crusher for prepared AC radiators, heat exchanger sections and copper-aluminum composite scrap before magnetic and downstream metal separation.

Power: 30kW-450kW(View Specs)
Capacity: 0.8t/h-15t/h(View Specs)
Processing effect: 2mm-50mm（Customized according to demand）
Applicable materials: Prepared air conditioner radiators, copper aluminum heat exchanger sections, automotive radiator sections, pre-cut condenser and evaporator coils and other suitable copper-aluminum composite scrap within the crusher feeding limits.

View Details →

Thermal Break Aluminum Crusher

Haoxing Machinery thermal break aluminum crusher is used for crushing broken bridge aluminum profiles, aluminum window frames, door frames and mixed aluminum scrap for recycling, sorting and material recovery.

Power: 30kW-450kW(View Specs)
Capacity: 0.8t/h-15t/h(View Specs)
Processing effect: 20mm-100mm(Screen Customization Available)
Applicable materials: Prepared thermal break aluminum profiles, pre-cut window and door frame sections, aluminum extrusion offcuts, curtain wall profile sections and other suitable aluminum materials containing PA66 insulation strips, rubber seals, screws or light attached components.

View Details →

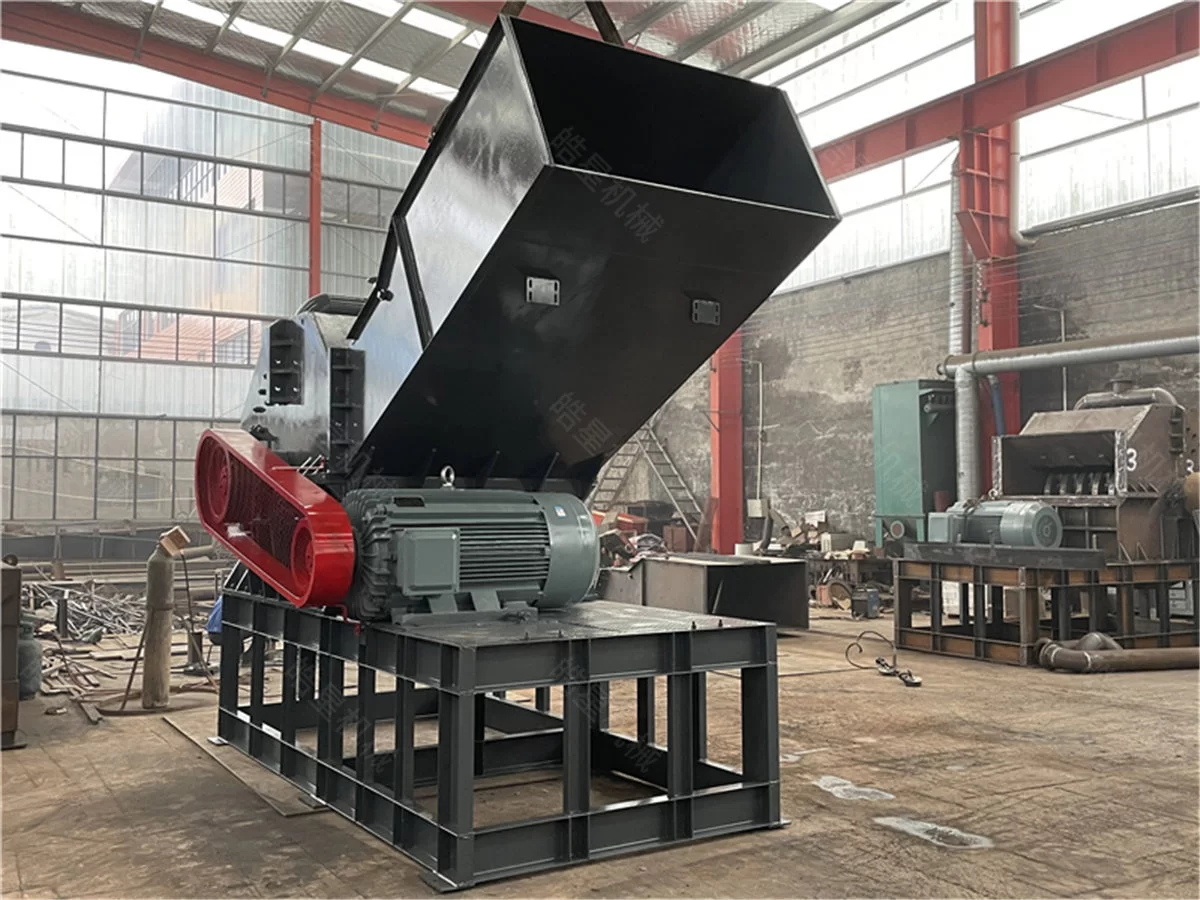

Wheel Hub Crusher

Haoxing Machinery wheel hub crusher is designed for crushing aluminum wheels, alloy rims and scrap wheel hubs for aluminum recycling, size reduction, sorting and material recovery applications.

Power: 30kW-450kW(View Specs)
Capacity: 0.8t/h-15t/h(View Specs)
Processing effect: 20mm-100mm(Screen Customization Available)
Applicable materials: Prepared aluminum alloy automotive wheels, aluminum rims, scrap wheel hubs and other suitable cast aluminum wheel components within the crusher feeding limits.Complete wheels with tires, steel wheels, magnesium alloy wheels, sealed assemblies, components containing unknown materials and wheel hubs with large steel attachments require identification, dismantling or separate handling before crushing.

View Details →

Motor Rotor Crusher

Haoxing Machinery motor rotor crusher is used for processing waste motor rotors and electric motor scrap, helping recover copper, aluminum and ferrous materials through crushing and separation.

Power: 30kW-450kW(View Specs)
Capacity: 0.8t/h-15t/h(View Specs)
Processing effect: 20mm-100mm(Screen Customization Available)
Applicable materials: Prepared electric motor rotors, generator rotors, dismantled stator sections, copper-iron composite parts, aluminum-iron rotor components and other suitable motor recycling material within the crusher feeding limits.

View Details →

Aluminum Crankcase Crusher

Aluminum crankcase crusher for prepared housings requiring high-speed impact and screen-controlled output after steel components and oversized parts are assessed.

Power: 45kW-315kW
Capacity: 0.6t/h-12t/h
Processing effect: 20mm-100mm
Applicable materials: Prepared aluminum crankcases, engine housings, gearbox housings, transmission housings, cylinder blocks, compressor housings, motor housings and other cast aluminum automotive or machinery components. Feeding suitability depends on casting dimensions, wall thickness, internal steel parts and attached components.

View Details →

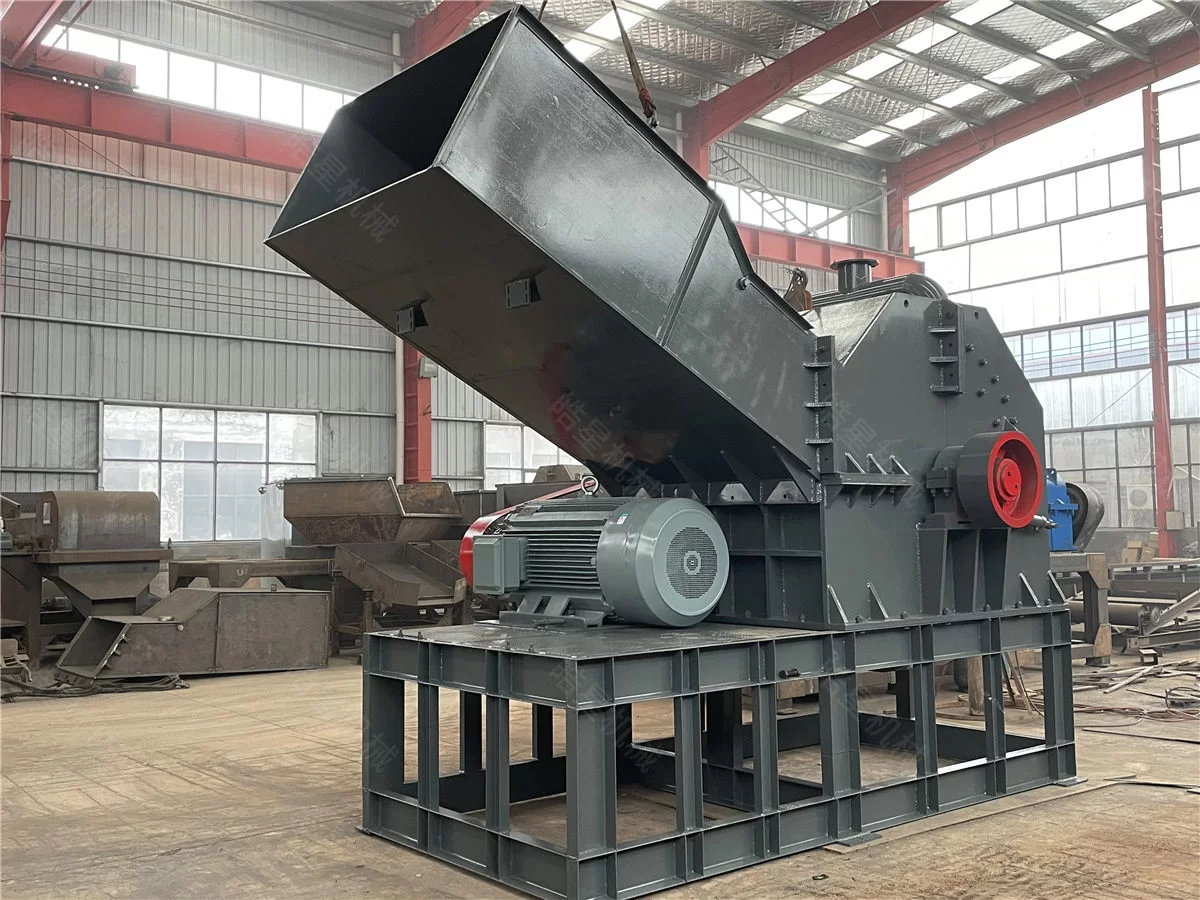

Aluminum Profile Crushing Plant

The Aluminum Profile Crushing Plant processes scrap aluminum profiles, window and door frames, extrusion offcuts, and thermal break aluminum. The system can combine feeding, hammer crushing, magnetic separation, conveying, and optional sorting equipment according to the material and recovery requirements.

Power: 30kW-450kW
Capacity: 0.8t/h-18t/h
Processing effect: 20mm-100mm
Applicable materials: Scrap aluminum profiles, aluminum door and window frames, thermal break aluminum, industrial aluminum extrusion offcuts, aluminum alloy profiles, broken aluminum frames, aluminum curtain wall profiles, aluminum strips, aluminum pipe profiles, profile factory waste, and mixed aluminum profile scrap containing screws, rubber strips, or plastic parts.

View Details →

Series Overview

Four Core Equipment Series

Haoxing Machinery organizes metal recycling equipment into four clear series, helping customers match machines with steel scrap, aluminum scrap, bulky waste, sorting needs and complete recycling line layouts.

Steel Shredding Equipment

For scrap steel, iron sheets, car shells, drums and other ferrous metal recycling applications.

Aluminum Shredding Equipment

For aluminum profiles, UBC cans, cast aluminum, aluminum alloy scrap and mixed aluminum waste.

Twin Shaft Shredder

For primary shredding of bulky scrap, metal bales, drums, profiles and industrial materials.

Sorting and Conveying System

Conveyors, magnetic separators and eddy current separators for cleaner recycling output.

How To Choose Equipment In This Series

Different scrap materials require different crushing, shredding, feeding and separation methods. The right selection depends on feed material, capacity target, output size and impurity level.

Send Material Details

01 Material Type

Confirm whether the main feed is scrap steel, aluminum profiles, cast aluminum, UBC cans, car shells, drums, mixed metal waste or bulky industrial scrap.

02 Feeding Size

Long profiles, bales and oversized castings usually need primary shredding or shearing before entering the crusher or sorting line.

03 Capacity Requirement

Small yards may need 1 to 5 tons per hour, while larger recycling plants may require 10 to 30 tons per hour or customized complete lines.

04 Sorting Target

Magnetic separation is used for ferrous recovery, while eddy current separation improves aluminum and other non ferrous metal recovery.

FAQ

Common Questions About Equipment Selection

These questions help customers understand how to select suitable recycling equipment before requesting a quotation.

How do I choose between a shredder and a crusher?

A shredder is mainly used for primary size reduction of bulky materials. A crusher is used for further crushing into smaller and denser output.

Can this equipment process both steel and aluminum?

Some machines can process mixed metal materials, but final configuration should be selected according to material hardness, impurity content and required output.

What information is needed for quotation?

Please provide raw material type, feeding size, required capacity, output size, voltage and whether magnetic or eddy current separation is required.

Can Haoxing provide a complete recycling line?

Yes. Haoxing Machinery can configure shredders, crushers, conveyors, magnetic separators, eddy current separators, dust collection and control systems.

Need Help Selecting The Right Recycling Equipment?

Send your material photos, feeding size, required capacity and final output target. Haoxing engineers will recommend a suitable equipment model or complete line configuration.
