Can Crusher

Applicable Materials:Used aluminum cans, tinplate cans, beverage cans, beer cans, thin sheet metal scrap, metal packaging containers, aluminum foil products, and other light-gauge metal waste..

Chinese:
易拉罐破碎机
Power:
30kw-200kw(View Specs)
Production Capacity:
0.6T/h-10T/h(View Specs)
Processing Efficiency:
20mm-100mm(Screen Customization Available)
Production Line Composition:
The main parts include the aluminum can crusher host, distribution cabinet, motor, workbench, magnetic separator, eddy current separator (optional), and aluminum can flattening machine (optional).
Reference Price:(Price varies by model. See specs or call.)
  • [pics:title]
  • [pics:title]
  • [pics:title]
  • [pics:title]
  • [pics:title]
  • Equipment Introduction

  • Working Principle

  • Features & Advantages

  • Technical Specifications

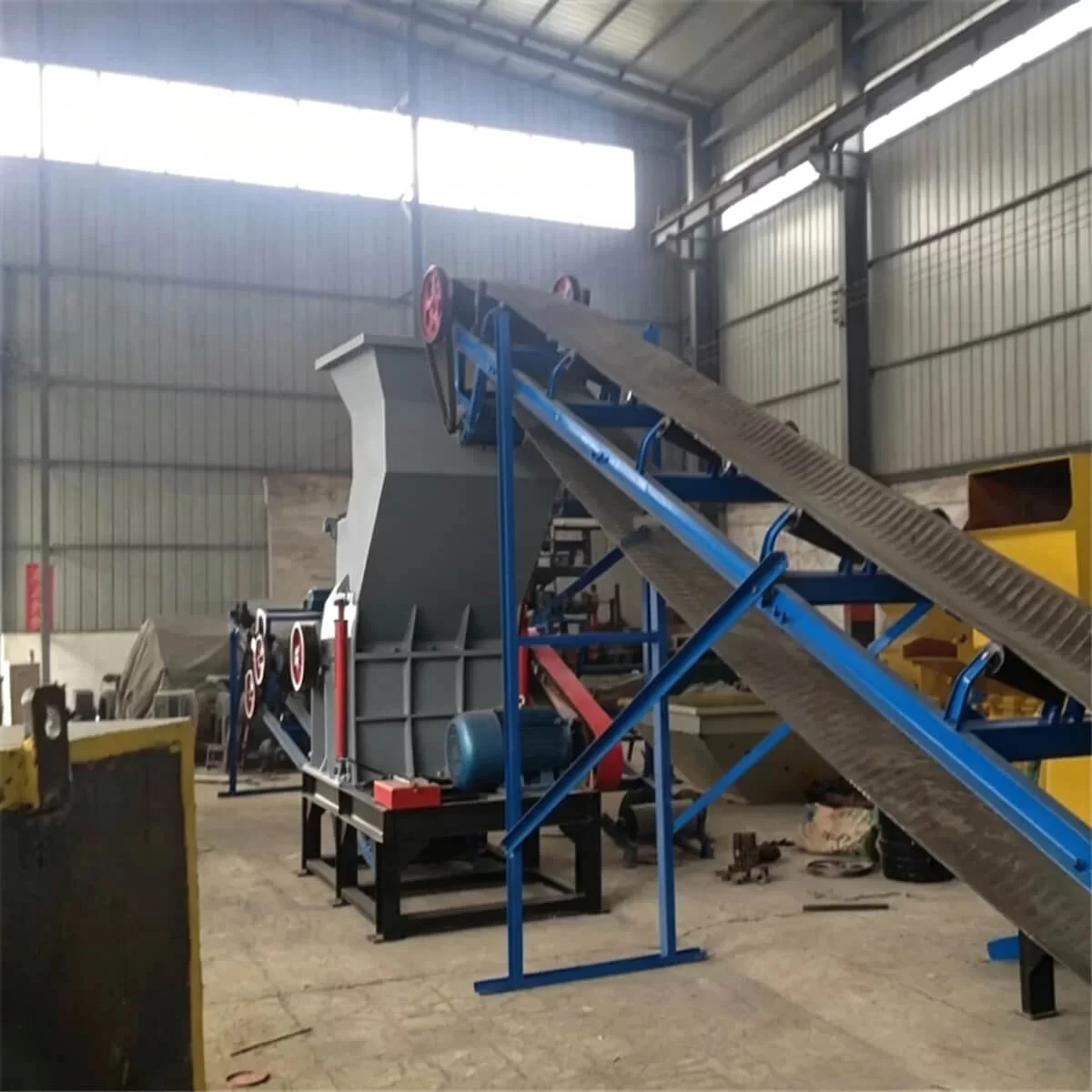

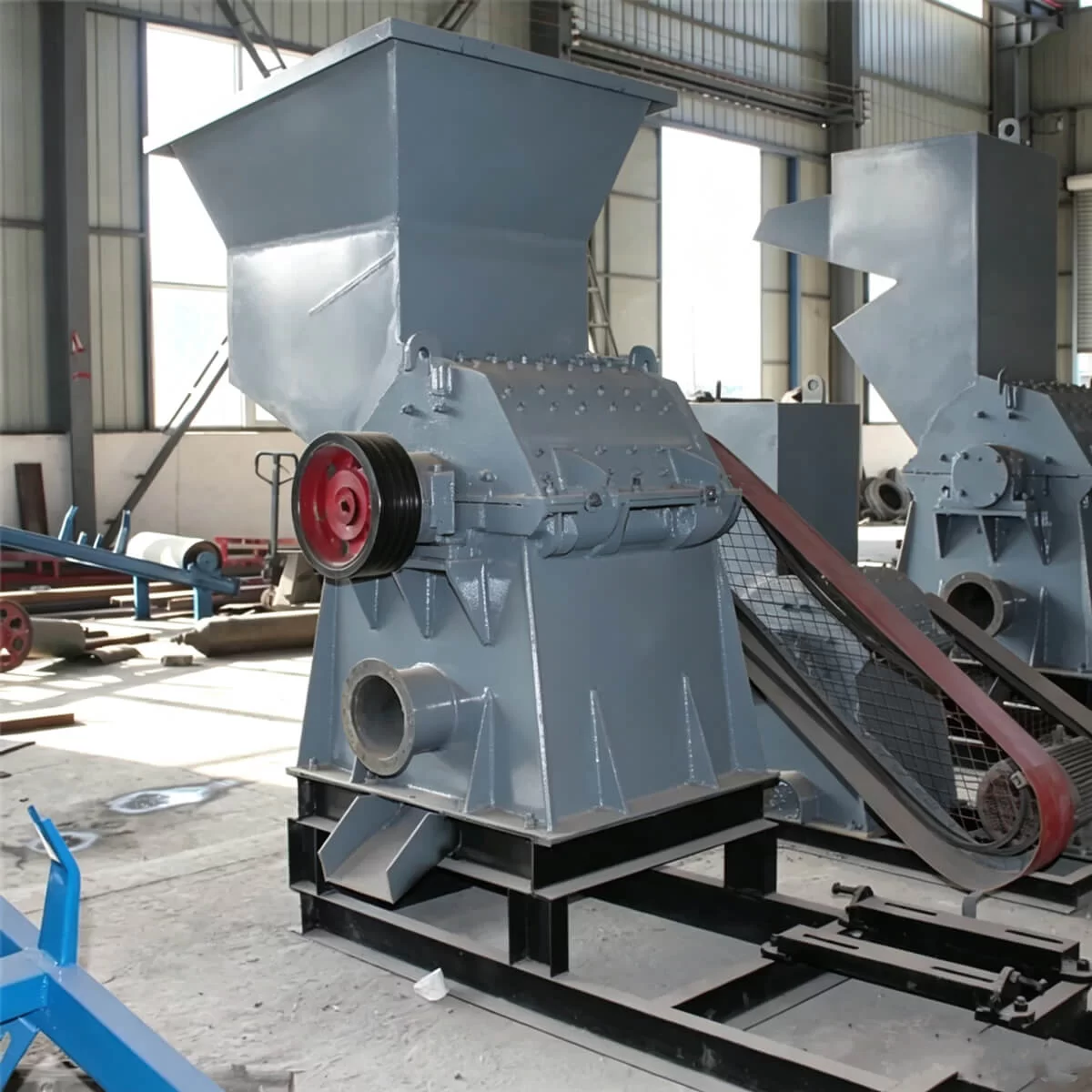

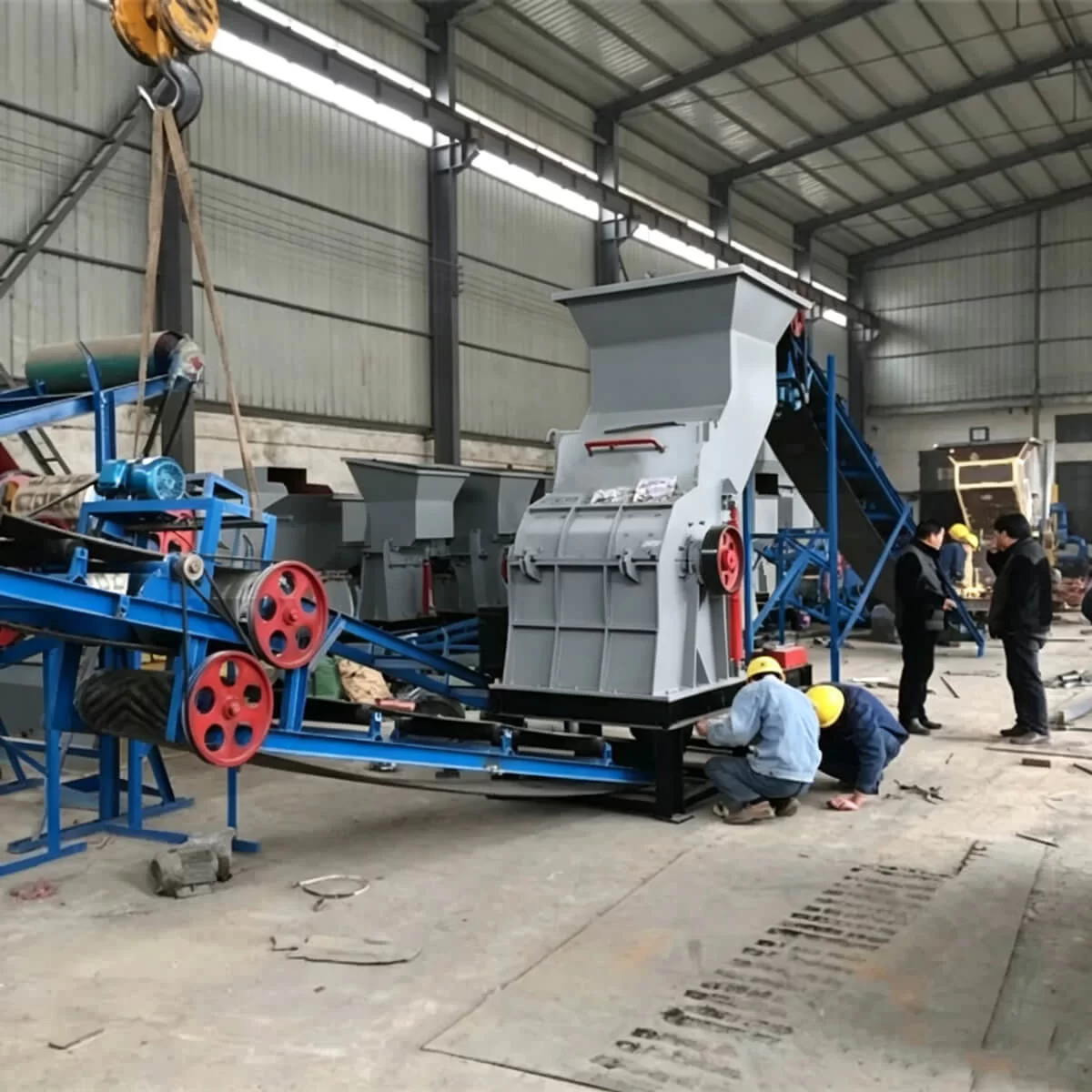

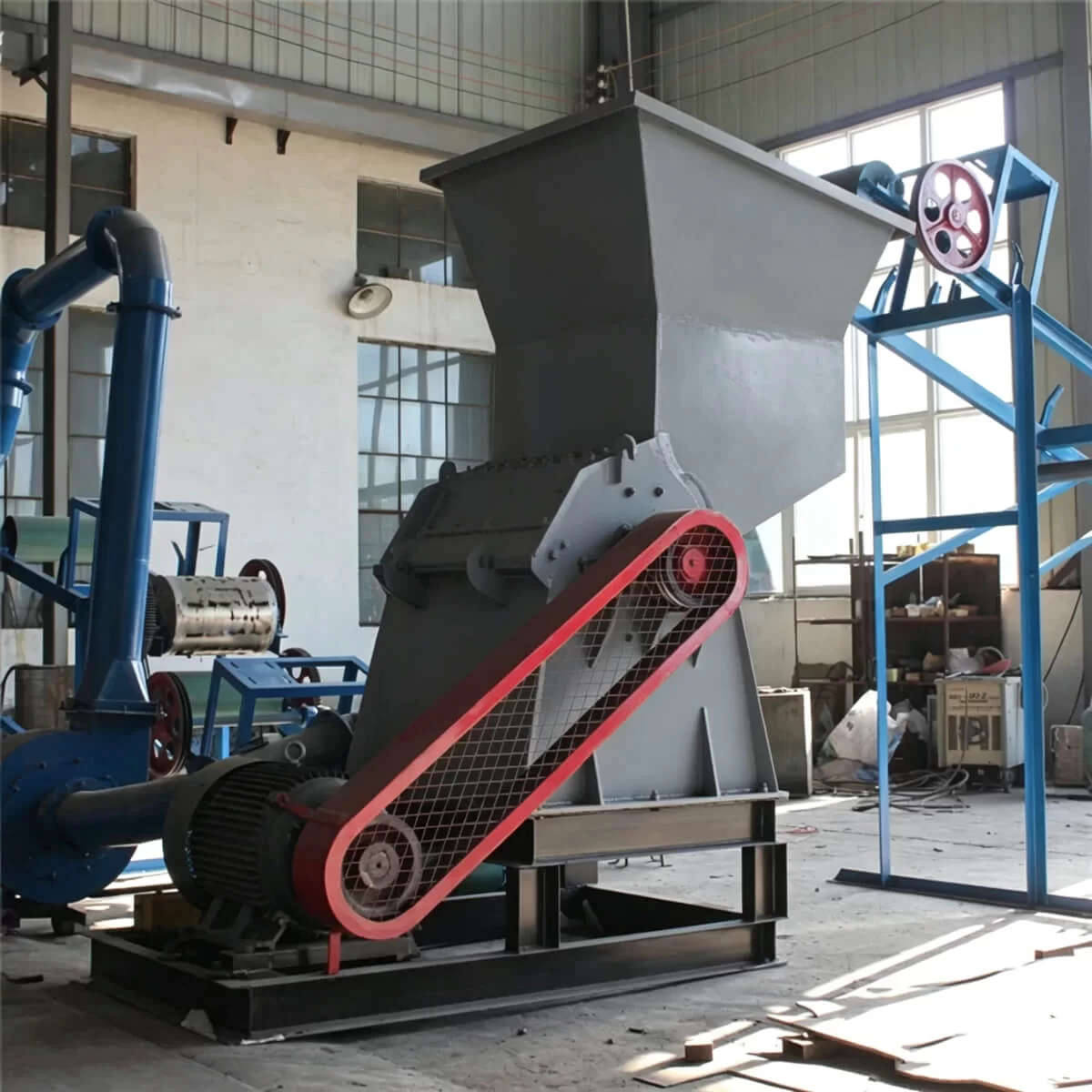

Haoxing Machinery's Can Crusher is a specialized hammer mill designed for the efficient size reduction of used aluminum cans, beverage cans, beer cans, and thin sheet metal scrap. Since cans are manufactured from either aluminum or tinplate (tin-coated steel), Haoxing has engineered this crusher to handle both material types effectively. Utilizing a high-speed rotor and hammers, the machine thoroughly pulverizes cans into dense, granular metal fragments, significantly reducing volume, lowering transportation costs, and improving furnace charging efficiency.


Applications

  • Scrap aluminum processing at recycling centers.

  • Feedstock pre-processing for secondary aluminum smelters.

  • In-house scrap recovery at can manufacturing plants.

  • Aluminum-plastic composite separation and recovery.

  • Core processing stage in complete aluminum can recycling lines.

HXPS1400 Can Crusher Production Line Operation Video:

HXPS1600 Can Crusher Operation Video:


Working Principle:
Cans are fed into the crushing chamber where a high-speed rotor equipped with hammers delivers powerful impact and grinding forces. Properly sized metal granules pass through a bottom screen and are conveyed to an air cyclone separation system, which separates metal from non-metallic contaminants. An integrated dust collection system ensures clean, environmentally compliant operation.

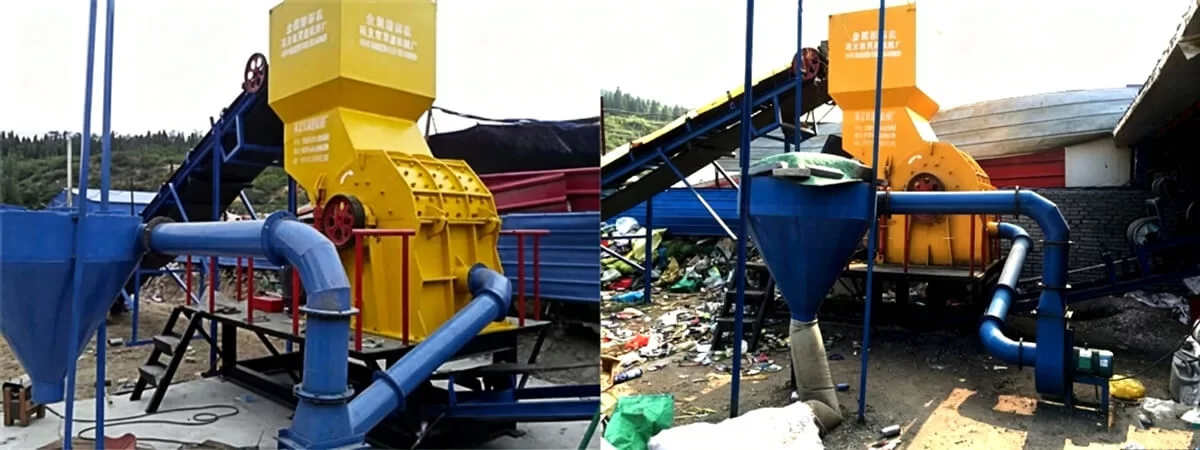

Aluminum Can Recycling Line Configuration:
A complete aluminum can crushing and recovery line typically includes:

  • Can Crusher (Main Unit)

  • Infeed Conveyor

  • Discharge Conveyor

  • Magnetic Separator

  • Eddy Current Separator (Optional for aluminum/plastic separation)

  • Air Cyclone Separation System

  • Pulse Dust Collector

  • Centralized Control Cabinet

The integrated line automates the entire process from feeding to final clean granule production, minimizing labor and operational costs.




  1. High Torque, High Throughput, Low Energy Consumption
    The crushing chamber delivers high torque and throughput. Hammers and liners are made from high-wear-resistant materials. Operation is characterized by low energy use, high efficiency, and uniform output. The machine is simple to operate and easy to maintain.

  2. Effective Contaminant Removal, Environmentally Friendly
    Efficiently removes adherent dirt, sludge, and packaging residues from can surfaces. The dust suppression and collection system ensures no secondary pollution, meeting environmental standards.

  3. Customizable Output Particle Size

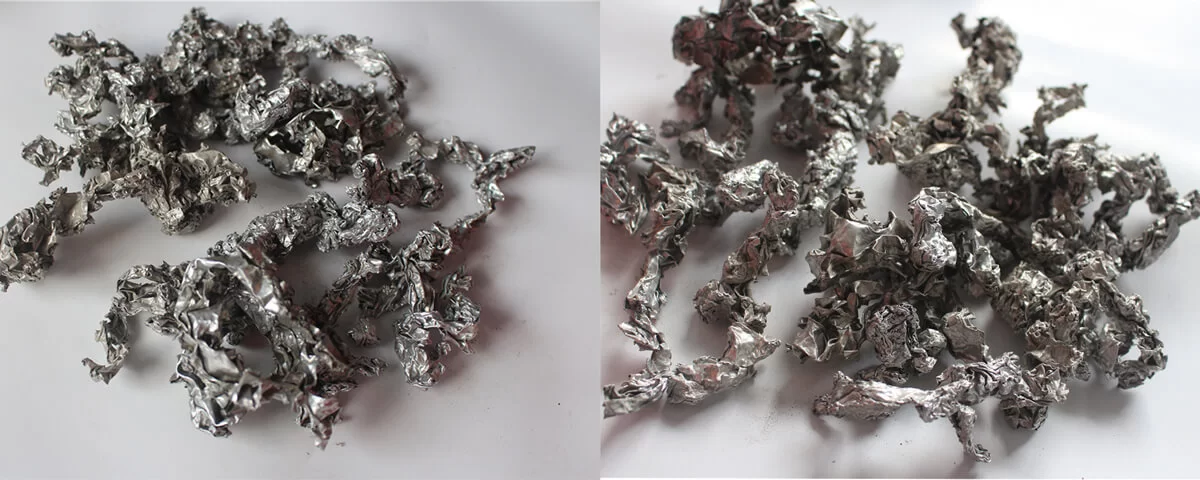

    Output granule size can be customized to user requirements, including flakes, granules, or chips, providing flexibility for downstream smelting or processing.

  4. Multi-Stage Separation for High Purity
    Through magnetic separation, eddy current separation, and air classification, the system achieves aluminum/plastic separation, aluminum/steel separation, and rubber/aluminum separation. This significantly reduces impurities and yields high-purity aluminum granules suitable for direct smelting.

  5. Multiple Models, Flexible Configuration
    Haoxing offers various can crusher models differing in feed opening size, motor power, and output granule size. Customers can select the most cost-effective configuration based on their specific throughput and application requirements.


Parameter description diagram for Can Crusher:


Technical Specifications (Reference Examples)

ModelMain Motor Power (kW)Hammer QtyFeed Opening (mm)Output Size (mm)Capacity (kg/h)Sorting SystemWeight (t)
HX-YL60018.5 - 2216600 x 5003 - 20300 - 800Magnetic + Air3.2
HX-YL80030 - 3724800 x 6003 - 20800 - 1500Magnetic + Air5.0
HX-YL100045 - 55321000 x 8003 - 201500 - 2500Magnetic + Air8.0
HX-YL130075 - 90481300 x 10003 - 202500 - 4000Magnetic + Air + ECS11.5
HX-YL1600110 - 132641600 x 12003 - 204000 - 6000Magnetic + Air + ECS17.0

*Note: Specifications are for reference only. Actual capacity varies with material type, moisture content, and output size requirements. For detailed pricing, site planning, and investment consultation, please call +86 13592521219. Parameters are subject to change without prior notice.*

Manufacturer Service Commitment

Haoxing Machinery adheres to the principle of "Integrity First, Quality Core." Our can crushers are widely used in industrial settings, offering reliable performance, high productivity, and ease of operation at competitive prices. We welcome inquiries at +86 13592521219 for professional process design and equipment selection support.


FAQ:

Q:这设备是不是加工废旧易拉罐的?

A:是的,主要就是对废旧易拉罐做压扁处理的设备。

Q:原来易拉罐都是这样加工了。

A:易拉罐回收后,可以用这个机器加工。

Q:怎么联系?环保查不查?

A:根据当地的政策

Q:每小时产量多少老板?

A:小型1000型0.5-1t,大型的1600型1-5t
