Equipment Series

Steel Shredding Equipment

Browse Haoxing Machinery steel shredding equipment for ferrous scrap recycling, including scrap steel shredders, metal crushers, scrap iron crushers, ELV crushers, drum crushers, oil filter crushers, gantry shears and alligator shears.

View Equipment Get Equipment Selection Support

Products

Steel Shredding Equipment

Select equipment according to material type, feeding size, required capacity, output size and downstream recycling process.

Ask For Recommendation

Scrap Steel Crusher

Scrap steel crusher for prepared light steel, sheet scrap and appliance-shell material requiring hammer impact and screen-controlled discharge size.

Power: 30kW-450kW(View Specs)
Capacity: 0.6t/h-18t/h(View Specs)
Processing effect: 20mm-100mm(Screen Customization Available)
Applicable materials: Prepared light scrap steel, steel sheets, color steel tiles, empty metal drums, prepared paint buckets, appliance steel shells, bicycle and motorcycle frames, steel fabrication offcuts, prepared vehicle body panels and other light or medium ferrous scrap within the crusher feeding limits.

View Details →

ELV Car Body Crusher

Haoxing Machinery ELV Shredder is designed for end of life vehicle recycling, car body crushing and scrap metal processing. It helps reduce car shells, steel scrap and mixed vehicle waste for further sorting and recycling.

Power: 30kW-450kW(View Specs)
Capacity: 0.6t/h-18t/h(View Specs)
Processing effect: 20mm-100mm(Screen Customization Available)
Applicable materials: Prepared and depolluted car bodies, stripped vehicle shells, car doors, roof panels, hoods, fenders, light auto scrap, motorcycle frames, bicycle frames, appliance shells, prepared light steel sheets and other suitable ferrous vehicle dismantling material.

View Details →

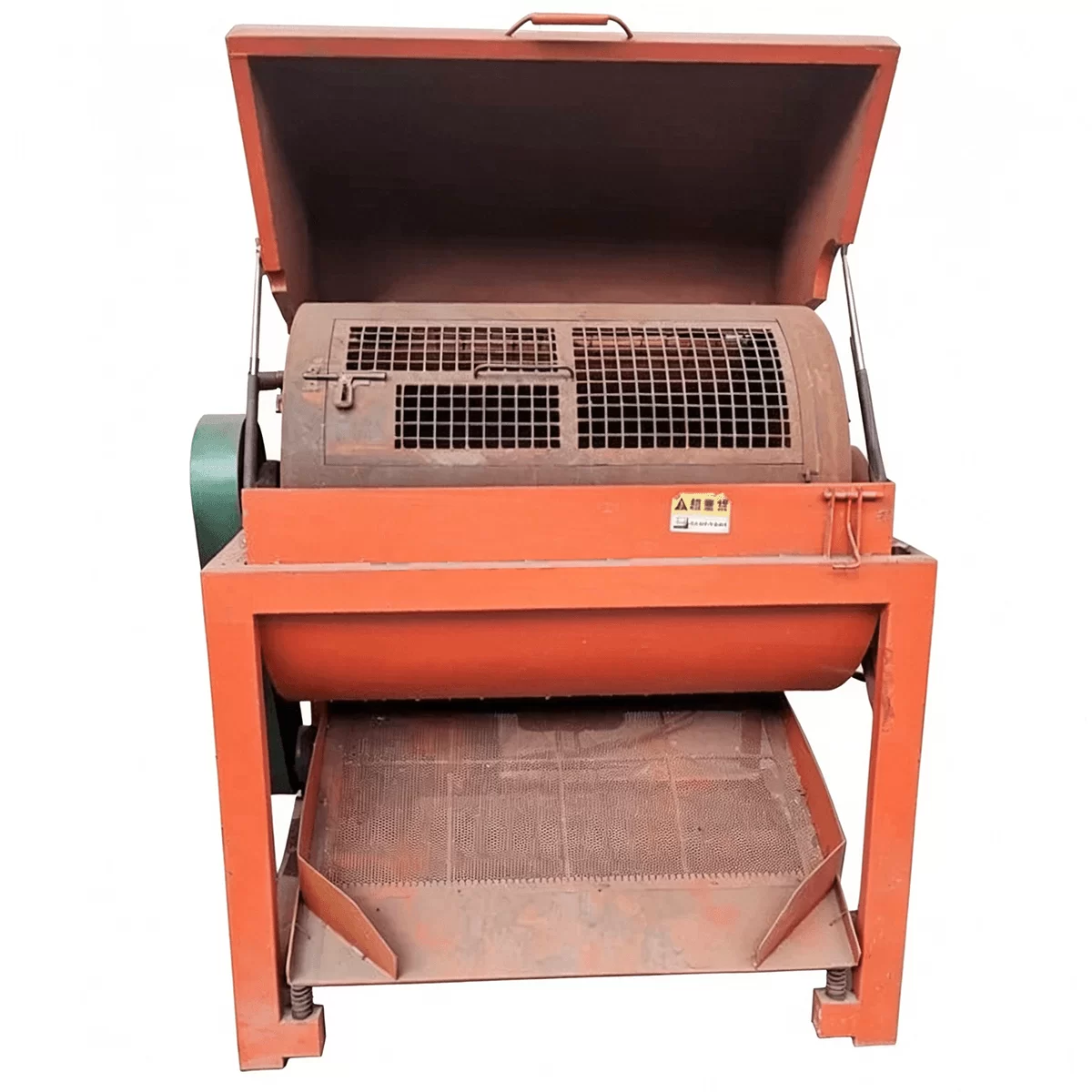

PCB Dismantling Machine

Haoxing Machinery PCB dismantling machine is used for circuit board recycling and electronic waste processing, helping remove components from waste PCB boards for further crushing, separation and metal recovery.

Power: 0.75kW+3kW+3kW
Capacity: 200-500kg/h
Processing effect: Realize the sorting of electronic components and tin
Applicable materials: Prepared computer circuit boards, appliance control boards, communication boards, power supply boards and selected waste printed circuit boards suitable for thermal component removal. Batteries, hazardous capacitors, sealed components and materials of unknown composition require separate handling.

View Details →

Scrap Steel Shredder

Scrap steel shredder for prepared light-gauge steel, appliance shells, sheet offcuts and color steel tiles. Defines suitable feed, coarse output and downstream processing.

Power: 2×22kW-2×160kW(View Specs)
Capacity: 0.8t/h-15t/h(View Specs)
Processing effect: Coarse and irregular output. Final condition depends on cutter width, tooth design, blade spacing and material characteristics.
Applicable materials: Light scrap steel, scrap iron sheets, color steel tiles, metal drums, oil drums, paint buckets, appliance shells, motorcycle frames, bicycle frames, small car body parts, waste metal containers, mixed light ferrous scrap, baled scrap steel, compressed scrap with moderate density, steel offcuts, thin metal plates, and other recyclable ferrous metal materials.

View Details →

Metal Crusher

Scrap metal crusher selection page for high-speed impact crushing with screen-controlled output. Explains suitable prepared feed, rotor system and downstream separation.

Power: 30kW-200kW(View Specs)
Capacity: 0.6t/h-16t/h(View Specs)
Processing effect: 20mm-100mm(Screen Customization Available)
Applicable materials: Prepared light scrap steel, scrap iron sheets, empty metal drums, prepared paint buckets, color steel tiles, appliance shells, bicycle frames, aluminum cans, suitable aluminum sheet scrap and metal fabrication offcuts. Material suitability depends on feeding dimensions, thickness, hardness and attached components.

View Details →

Metal Pulverizer

Haoxing Machinery metal pulverizer is used for size reduction of scrap steel, iron waste, metal sheets, drums and mixed ferrous materials, helping improve recycling efficiency and material recovery value.

Power: 30kW-450kW(View Specs)
Capacity: 0.6t/h-16t/h(View Specs)
Processing effect: 20mm-100mm(Screen Customization Available)
Applicable materials: Prepared metal sheets, used beverage cans, color steel tiles, empty paint buckets, light scrap steel, aluminum scrap, appliance shell fragments, small metal offcuts and other recyclable metal materials within the pulverizer feeding limits.

View Details →

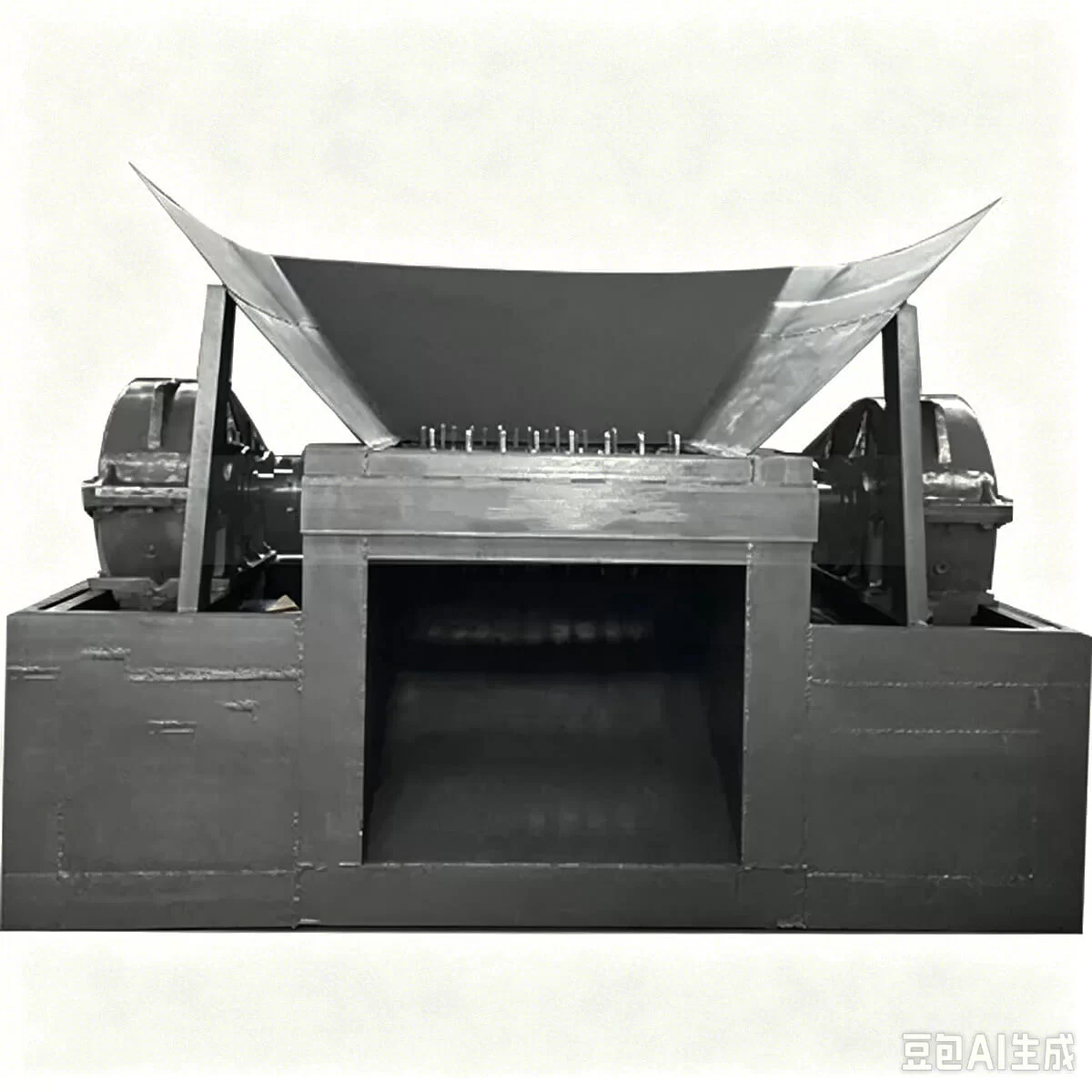

Metal Turnings Shredder

Low-speed, high-torque metal turnings shredder for reducing long, curled and tangled iron chips, steel turnings and metal swarf into shorter, manageable pieces.

Power: 2×11 kW–90 kW motors
Capacity: 0.6t/h-5t/h(View Specs)
Processing effect: less than 20 mm fragments (screen customization available)
Applicable materials: Long steel turnings, iron turnings, curled metal swarf, tangled machining chips, stainless steel turnings and selected ferrous machining waste. Oily, hot, powdered, flammable or unidentified materials require separate evaluation.

View Details →

Drum Crusher

Haoxing Machinery's Drum Crusher is designed for processing empty or pre-treated oil drums, paint buckets, steel barrels and other light metal containers for volume reduction, recycling and further metal sorting.

Power: 30kW-450kW(View Specs)
Capacity: 0.6t/h-10t/h(View Specs)
Processing effect: 20mm-100mm(Screen Customization Available)
Applicable materials: Prepared and emptied steel drums, opened paint buckets, tinplate drums, metal packaging barrels and other light-gauge ferrous containers within the crusher feeding limits. Chemical drums, fuel containers, sealed barrels, pressurized containers and drums with hazardous or unidentified residues require separate cleaning and safety assessment.

View Details →

Oil Filter Crusher

Haoxing Machinery oil filter crusher is used for processing used automotive oil filters and metal filter cartridges, helping reduce volume, separate metal materials and improve recycling efficiency.

Power: 30kW-450kW(View Specs)
Capacity: 0.8t/h-15t/h(View Specs)
Processing effect: 20mm-100mm(Screen Customization Available)
Applicable materials: Prepared and drained automotive oil filters, diesel filters, hydraulic oil filters and selected metal-cased industrial filters. Air filters, cabin filters, plastic filters and filters with different internal structures require separate evaluation before processing.

View Details →

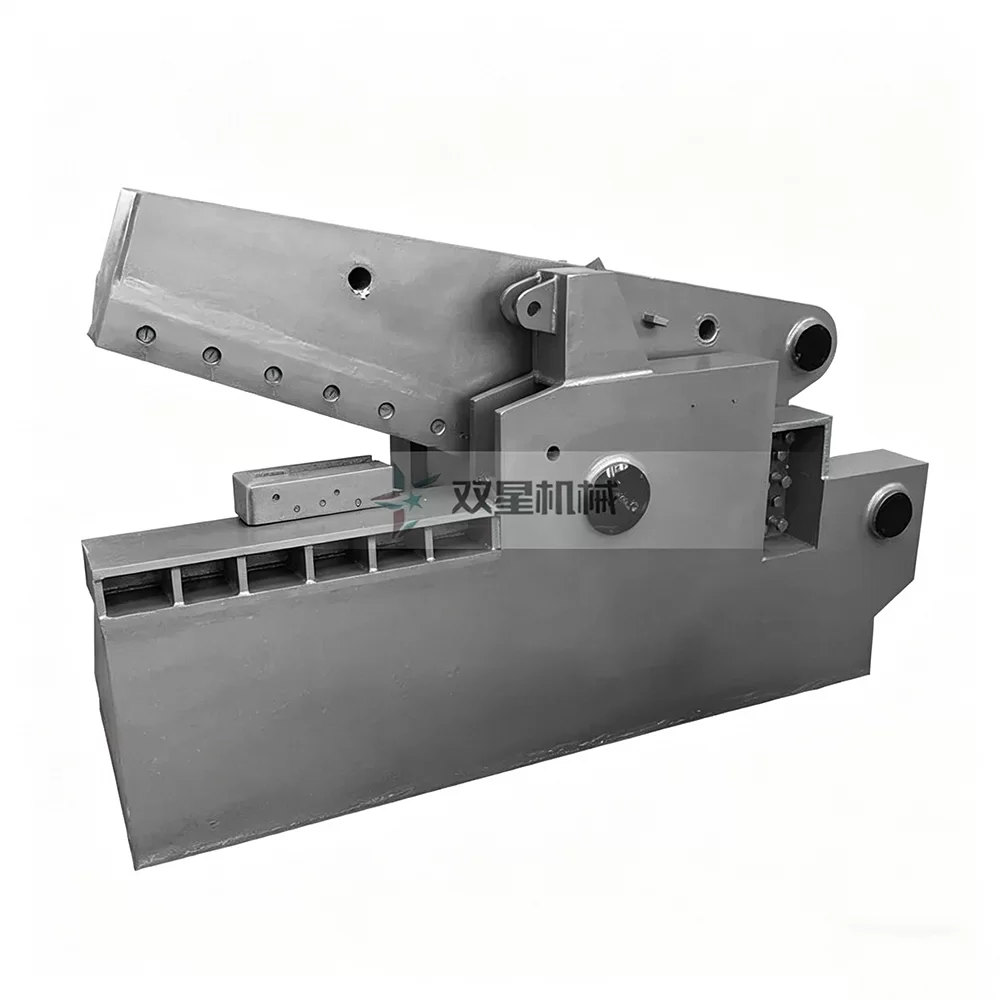

Alligator Shear

Haoxing Machinery alligator shear is a hydraulic metal cutting machine for scrap steel, round bars, square bars, channels, angles, pipes, rebar, car frames and other ferrous metal profiles.

Power: Hydraulic power
Capacity: 2t/h-15t/h(View Specs)
Processing effect: 10–50 cm, customizable as required
Applicable materials: Prepared rebar, round steel bars, square bars, angle steel, small channel sections, metal pipes, light structural offcuts, flat steel, selected wire rope and other elongated ferrous scrap within the rated shear opening and cutting capacity.

View Details →

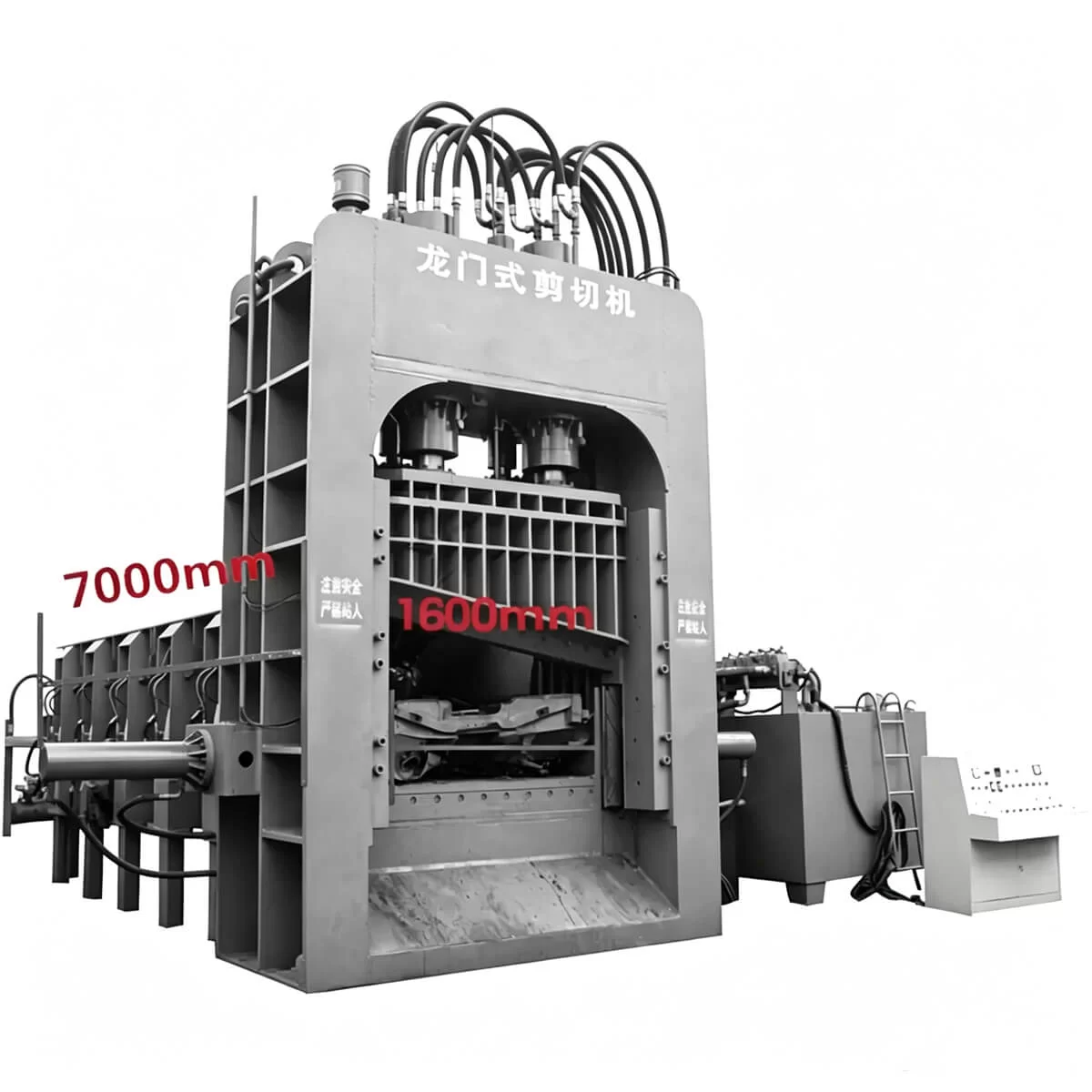

Gantry Shear

Haoxing Machinery gantry shear is designed for cutting heavy scrap steel, metal plates, steel structures, car bodies and large ferrous scrap materials for recycling, loading and furnace feed preparation.

Power: Using hydraulic power with a 2-45 kW motor
Capacity: 2t/h-15t/h(View Specs)
Processing effect: 10cm-50cm（Cut to size as needed）
Applicable materials: Prepared channel sections, I-beam offcuts, angle steel, steel plates, pipes, rebar, round bars, square bars, fabrication offcuts, dismantled vehicle frame sections and other ferrous scrap within the rated feeding box dimensions and shearing capacity.

View Details →

Scrap Iron Crusher

Scrap iron crusher for prepared thin and hollow iron feed requiring impact crushing. Defines feed boundaries and excludes heavy solid iron and steel sections.

Power: 30kW-450kW(View Specs)
Capacity: 0.8t/h-15t/h(View Specs)
Processing effect: 20mm-100mm(Screen Customization Available)
Applicable materials: Prepared scrap iron sheets, thin steel panels, empty metal drums, cleaned paint buckets, appliance iron shells, light fabrication offcuts, small iron frames and other light ferrous scrap within the crusher feeding limits.Thick solid steel, heavy beams, large cast iron parts, sealed containers, pressure vessels, batteries, fuel tanks and drums containing hazardous residues require separate preparation or another processing method.

View Details →

Color Steel Tile Crusher

Haoxing Machinery color steel tile crusher is designed for crushing color steel tiles, roofing sheets, light steel panels and thin ferrous metal scrap for size reduction, recycling and further sorting.

Power: 30kW-450kW
Capacity: 0.6t/h-18t/h(For details, see the model specifications table)
Processing effect: 20mm-50mm(Screen Customization Available)
Applicable materials: Prepared color steel tiles, pre-cut corrugated roofing sheets, galvanized panels, light steel cladding, thin steel fabrication offcuts and other light-gauge ferrous sheet scrap within the crusher feeding limits.Long sheets, bundled panels and oversized material may require primary shredding or pre-cutting. Sandwich panels containing foam, rock wool or other insulation require separate evaluation before crushing.

View Details →

Series Overview

Four Core Equipment Series

Haoxing Machinery organizes metal recycling equipment into four clear series, helping customers match machines with steel scrap, aluminum scrap, bulky waste, sorting needs and complete recycling line layouts.

Steel Shredding Equipment

For scrap steel, iron sheets, car shells, drums and other ferrous metal recycling applications.

Aluminum Shredding Equipment

For aluminum profiles, UBC cans, cast aluminum, aluminum alloy scrap and mixed aluminum waste.

Twin Shaft Shredder

For primary shredding of bulky scrap, metal bales, drums, profiles and industrial materials.

Sorting and Conveying System

Conveyors, magnetic separators and eddy current separators for cleaner recycling output.

How To Choose Equipment In This Series

Different scrap materials require different crushing, shredding, feeding and separation methods. The right selection depends on feed material, capacity target, output size and impurity level.

Send Material Details

01 Material Type

Confirm whether the main feed is scrap steel, aluminum profiles, cast aluminum, UBC cans, car shells, drums, mixed metal waste or bulky industrial scrap.

02 Feeding Size

Long profiles, bales and oversized castings usually need primary shredding or shearing before entering the crusher or sorting line.

03 Capacity Requirement

Small yards may need 1 to 5 tons per hour, while larger recycling plants may require 10 to 30 tons per hour or customized complete lines.

04 Sorting Target

Magnetic separation is used for ferrous recovery, while eddy current separation improves aluminum and other non ferrous metal recovery.

FAQ

Common Questions About Equipment Selection

These questions help customers understand how to select suitable recycling equipment before requesting a quotation.

How do I choose between a shredder and a crusher?

A shredder is mainly used for primary size reduction of bulky materials. A crusher is used for further crushing into smaller and denser output.

Can this equipment process both steel and aluminum?

Some machines can process mixed metal materials, but final configuration should be selected according to material hardness, impurity content and required output.

What information is needed for quotation?

Please provide raw material type, feeding size, required capacity, output size, voltage and whether magnetic or eddy current separation is required.

Can Haoxing provide a complete recycling line?

Yes. Haoxing Machinery can configure shredders, crushers, conveyors, magnetic separators, eddy current separators, dust collection and control systems.

Need Help Selecting The Right Recycling Equipment?

Send your material photos, feeding size, required capacity and final output target. Haoxing engineers will recommend a suitable equipment model or complete line configuration.
