Applicable Materials: Aluminum tubing, window frame profiles, door frame profiles, curtain wall aluminum extrusions, thermal break aluminum profiles, interior/exterior decorative aluminum profiles, structural architectural aluminum profiles, and other long, bulky aluminum extrusion scrap.
Key technical information for quick evaluation.

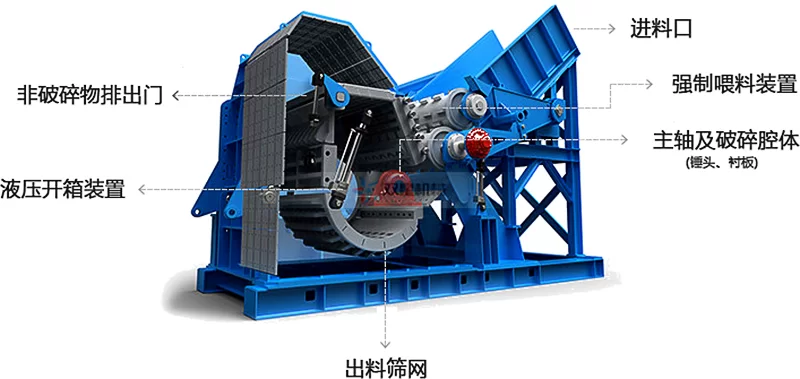

Aluminum Profile Crusher Main Structure

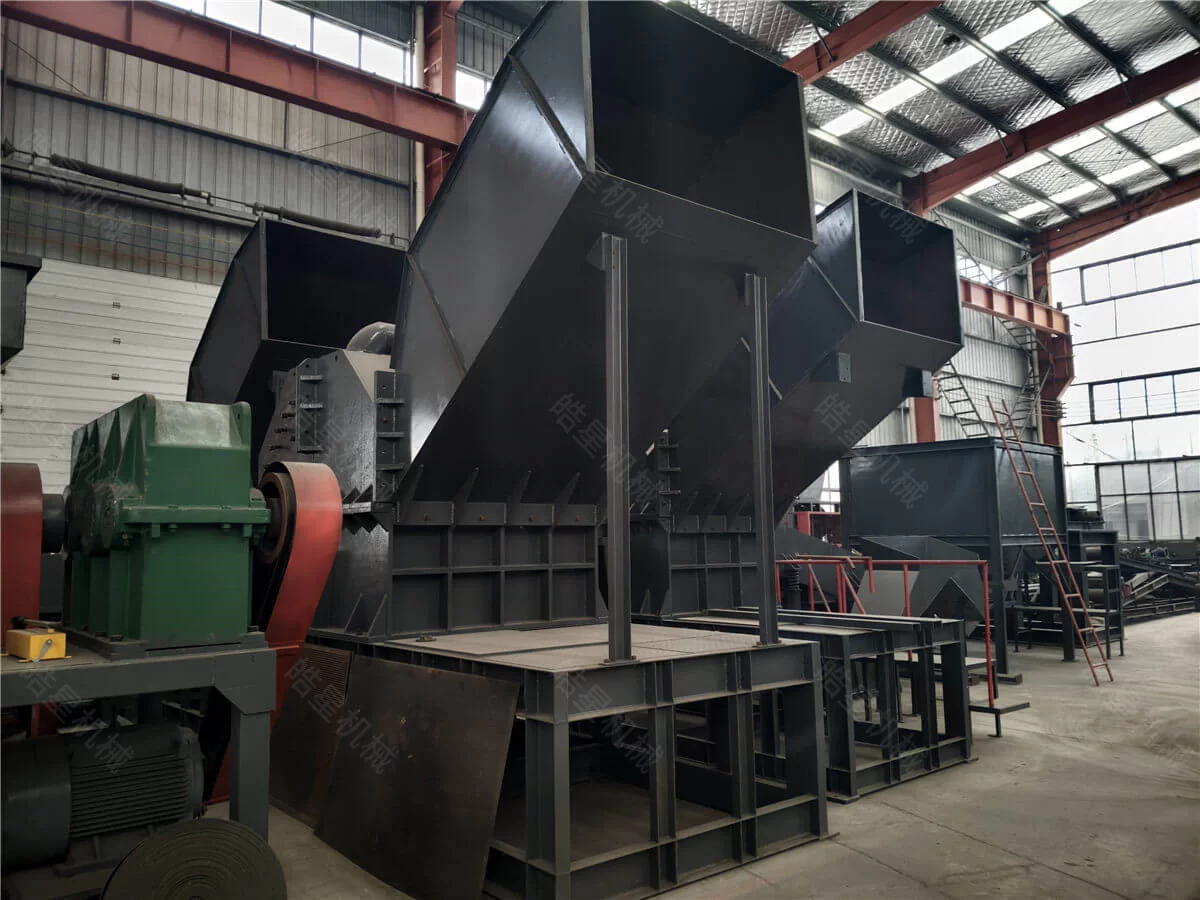

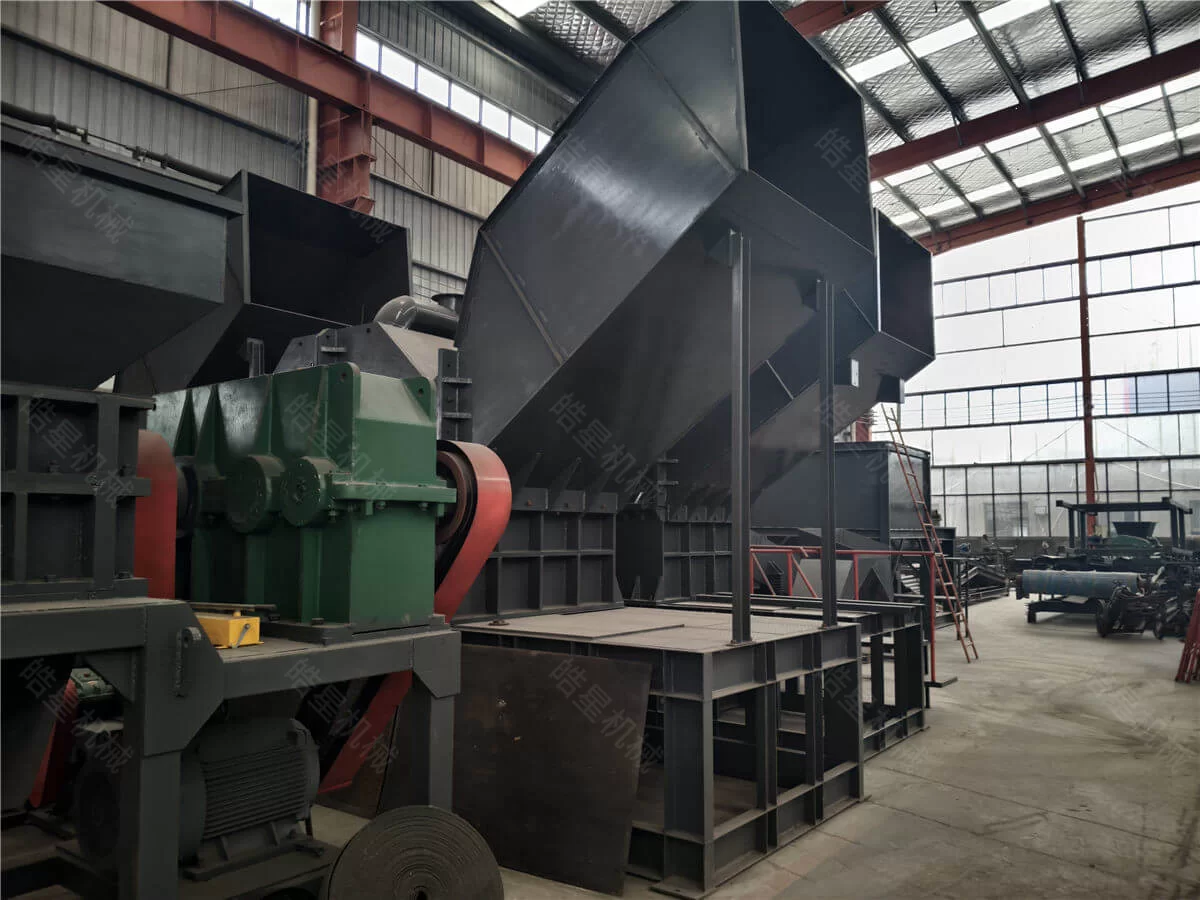

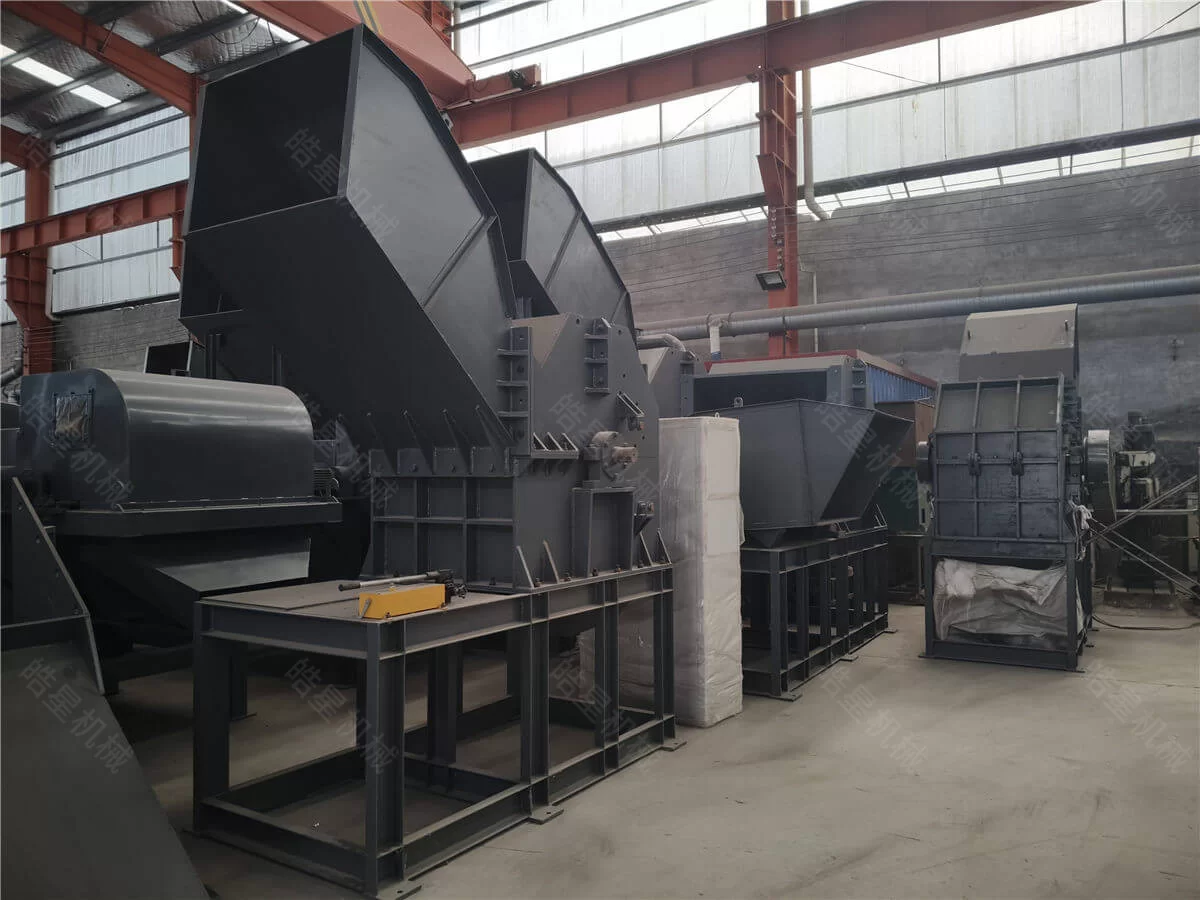

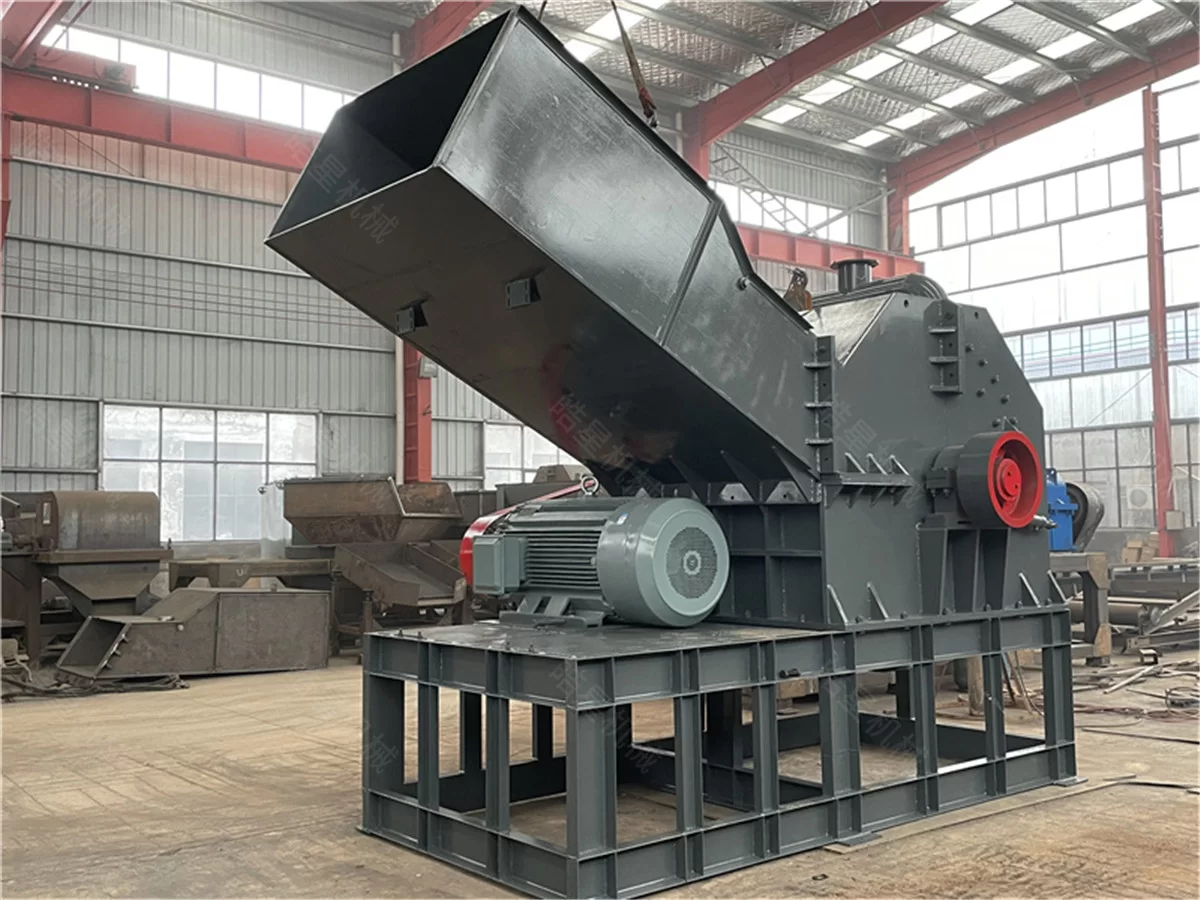

Haoxing Machinery's Aluminum Profile Crusher, also known as the Aluminum Extrusion Crusher or Thermal Break Aluminum Crusher, is a specialized hammer mill designed for the efficient size reduction of aluminum profiles used in windows, doors, curtain walls, architectural structures, and aluminum tubing. The machine utilizes a high-speed rotor with heavy-duty hammers and impact liners to pulverize long, bulky profiles into fine, uniform aluminum granules, facilitating downstream sorting, transport, and smelting. With clean output and high crushing efficiency, it is a core piece of equipment in the aluminum profile recycling industry.
Recycling of waste aluminum window and door profiles.
Dismantling and crushing of curtain wall aluminum extrusions.
Pre-crushing for aluminum-plastic separation in thermal break profiles.
Recovery of aluminum tubing offcuts and scrap.
Resource utilization of interior/exterior decorative aluminum profiles.
Feedstock pre-processing for secondary aluminum smelters.
hxps1600 aluminum profile crusher and supporting equipment operation video：
hxps1400 aluminum profile crusher and supporting equipment operation video：
Auxiliary equipment for aluminum profile crusher production line
Aluminum profile crusher mainly processes materials
Working Principle:
A high-speed, high-torque motor drives the main shaft and rotor assembly. Aluminum profiles are fed into the crushing chamber where high-speed hammers deliver powerful impacts. Material is repeatedly struck, torn, and ground between the hammers and impact liners until reduced to properly sized granules, which then pass through a bottom screen for discharge.
Structural Features:
Wide Feed Opening & Deep Crushing Chamber: The feed inlet is optimized through repeated testing to ensure smooth material entry without kickback. The deep chamber design eliminates dead zones, maximizing feed capacity and crushing performance.
High-Hardness Specialty Blades: Hammer blades are made from specialty material with a hardness rating of HRC 55 or higher (a standard file is HRC 51), ensuring exceptional wear resistance and crushing effectiveness.
Reinforced Housing Structure: The frame features dense stiffener plate construction, providing robust impact resistance and long-term durability.
Automated Control: Equipped with user-friendly push-button controls and clear signage for safe, convenient operation.
Modular Line Design: The system supports flexible configuration with optional conveyors, magnetic separators, dust collectors, and feed assist devices.
Aluminum Profile Crusher Equipment Operation Process
Conveyor Feeding Option for Enhanced Efficiency
Can be equipped with an automatic belt conveyor for continuous, uniform feeding, reducing manual labor and boosting productivity.
High-Hardness Blades, Durable & Long-Lasting
Specialty blades with hardness exceeding HRC 55 provide excellent wear resistance, ensuring stable long-term operation and reduced replacement frequency.
Reinforced Housing, Stable & Reliable
The dense stiffener plate construction ensures a rigid, impact-resistant frame capable of withstanding continuous heavy-duty operation.
Adjustable Output Size, Flexible Adaptation
Screen aperture is customizable based on material characteristics and user requirements, allowing precise control over output particle size.
High Recovery Rate, Low Impurities
Crushed aluminum granules are clean with minimal impurities, achieving high aluminum recovery rates suitable for direct secondary smelting.
Flexible Line Configuration, Scalable
Modular design allows for easy integration of magnetic separators, dust collectors, and feed assist devices to meet specific production needs.
Parameter description diagram for Aluminum Profile Crusher | Aluminum Extrusion Recycling Machine | Haoxing Machinery:
| Model | Main Motor Power (kW) | Hammer Qty | Feed Opening (mm) | Output Size (mm) | Capacity (t/h) | Optional Systems | Weight (t) |
|---|---|---|---|---|---|---|---|
| HX-LX600 | 22 - 30 | 16 | 600 x 500 | 5 - 30 | 1 - 3 | Magnetic/Dust | 3.5 |
| HX-LX800 | 37 - 45 | 24 | 800 x 600 | 5 - 30 | 3 - 5 | Magnetic/Dust | 5.5 |
| HX-LX1000 | 55 - 75 | 32 | 1000 x 800 | 5 - 30 | 5 - 8 | Magnetic/Dust | 8.5 |
| HX-LX1300 | 90 - 110 | 48 | 1300 x 1000 | 5 - 30 | 8 - 12 | Magnetic/Dust | 12.0 |
| HX-LX1600 | 132 - 160 | 64 | 1600 x 1200 | 5 - 30 | 12 - 18 | Magnetic/Dust | 18.0 |
*Note: Specifications are for reference only. Actual capacity depends on material form, hardness, and screen aperture. Custom configurations available upon request. For inquiries, call +86 13592521219.*
For inquiries regarding equipment pricing, configuration parameters, or application scope of our Aluminum Profile Crushers, please contact Haoxing sales for a free consultation. Customized solutions for special requirements are available at no design cost.
Call us today at +86 13592521219. Haoxing Machinery is dedicated to serving you.
Find common questions about scrap metal crushers, shredders, recycling lines, equipment selection, capacity configuration and operation requirements.
The value increase depends on aluminum purity, material cleanliness, particle size, separation effect, and local market prices. A proper crushing and separation process can help improve the recycling value.
For an output of about 8,000 kg per hour, a large aluminum profile crusher or complete recycling line is recommended. The configuration should include feeding, crushing, conveying, separation, dust removal, and electrical control systems.
A 10-ton-per-hour line usually requires a heavy-duty crusher, feeding conveyor, discharge conveyor, magnetic separation, air separation or eddy current separation, dust removal, and an electrical control system. The final layout should be designed according to the material and site conditions.
