Applicable Materials: Aluminum dross, aluminum ash, machinery aluminum, cast aluminum scrap, automotive/motorcycle engine blocks, motor housings, aluminum alloy wheels, transmission housings, aluminum die-cast parts, aluminum smelting slag, and other aluminum-containing waste.
Key technical information for quick evaluation.
Aluminium slag crusher main machine structure diagram

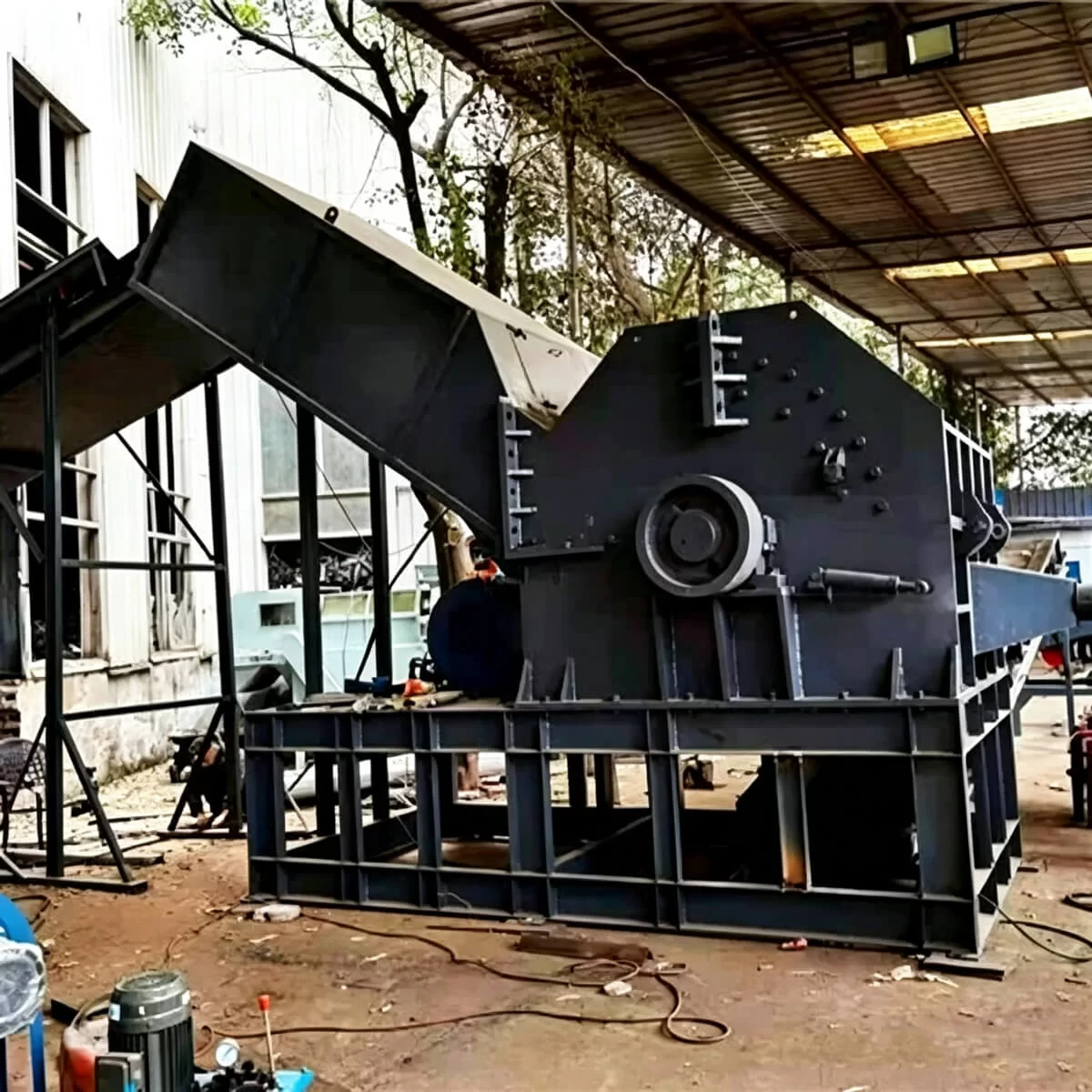

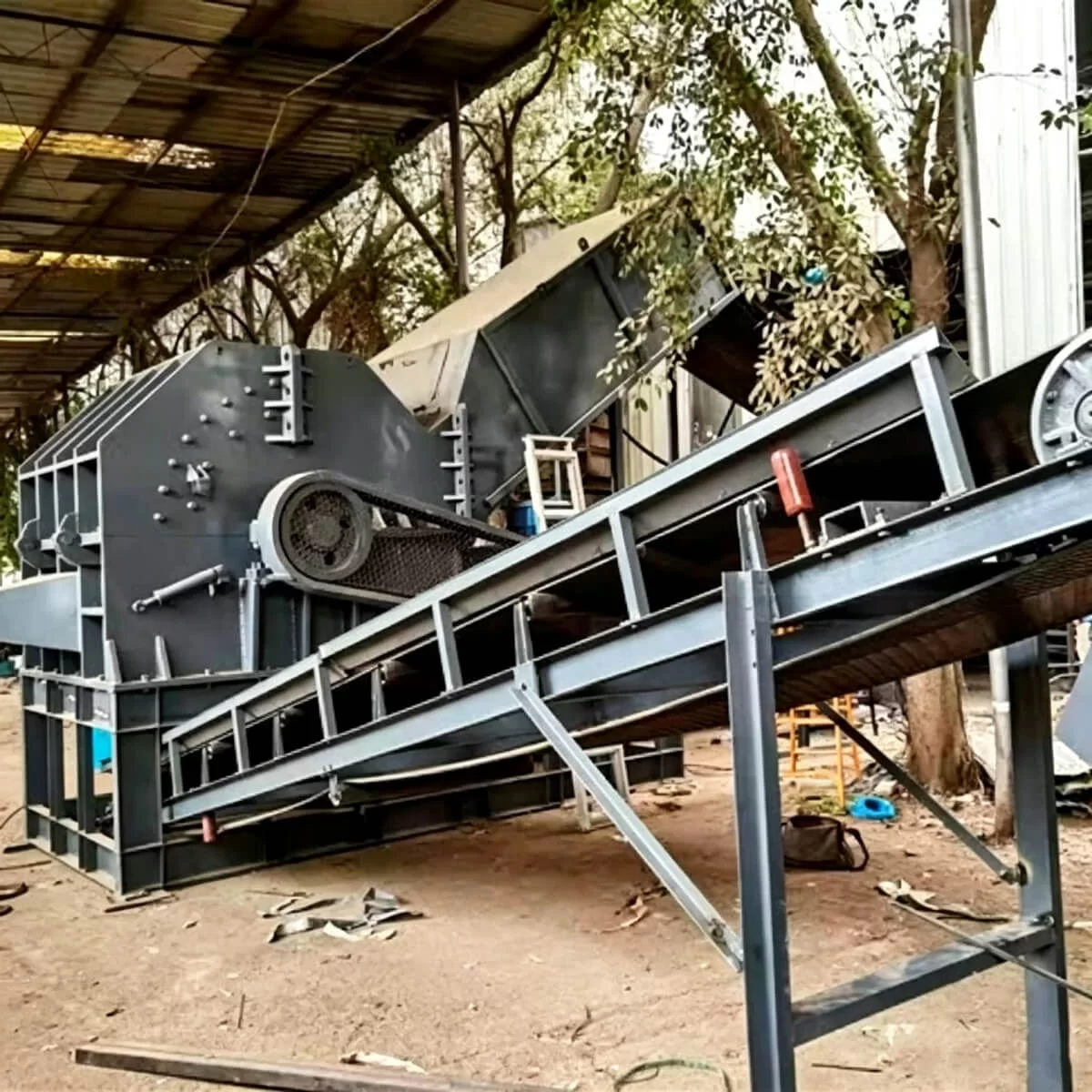

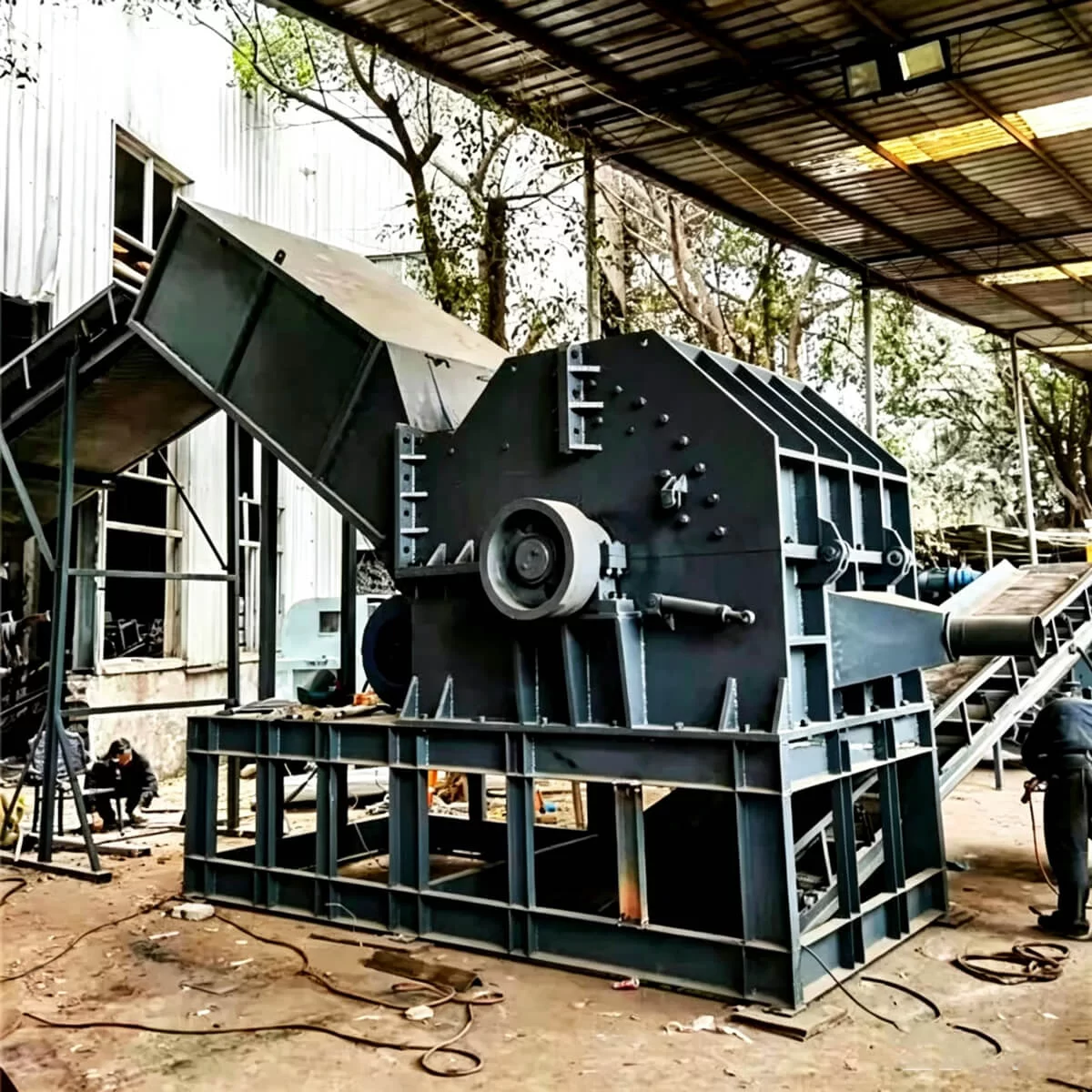

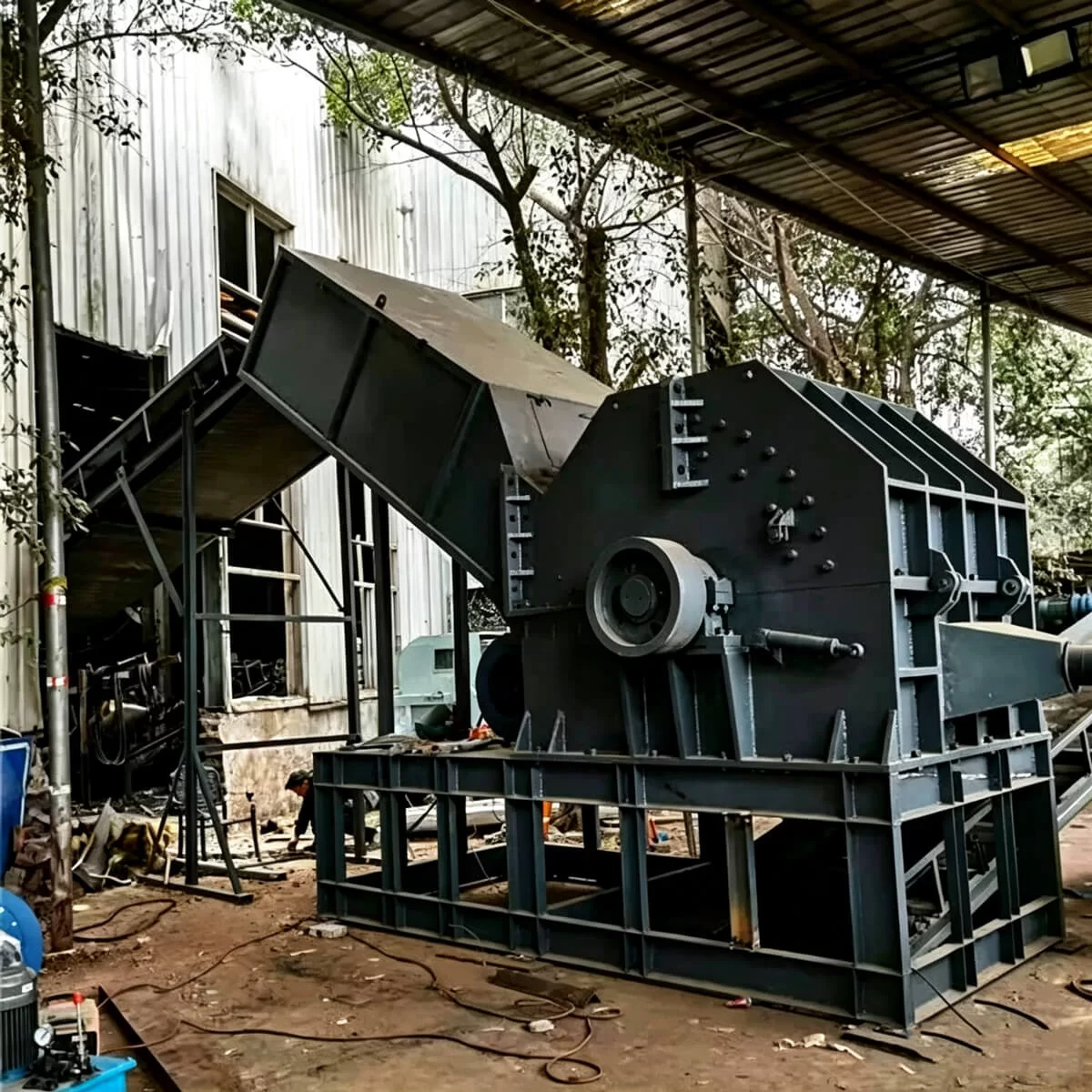

As the market for recycled aluminum continues to grow, efficient processing of aluminum dross and slag has become essential for maximizing economic returns and achieving sustainable resource utilization. Haoxing Machinery's Aluminum Dross Crusher, also known as the Aluminum Slag Crusher or Cast Aluminum Crusher, is a specialized hammer mill designed for crushing and separating aluminum dross, aluminum ash, machinery aluminum, cast aluminum parts, engine blocks, motor housings, and aluminum wheels. The complete system follows a crushing—screening—sorting—smelting process, recovering clean aluminum from waste slag for direct use in electrolysis or remelting.
Pre-processing of aluminum dross and slag at secondary aluminum smelters.
In-house scrap recovery at aluminum product manufacturing plants.
Foundry cast aluminum sprue/riser and slag processing.
Machinery aluminum and cast aluminum crushing and sorting.
ELV engine, motor housing, and wheel recycling.
Solid waste resource recovery in the aluminum industry.
HXPS1600 Aluminum Slag Crusher and Supporting Equipment Operation Video：
hxps1600 aluminum dross crusher manufacturer shipping video display：
Actual photo of aluminum slag material
Working Principle:
The Aluminum Dross Crusher operates on the hammer mill principle. A high-speed, high-torque motor drives the main shaft and rotor assembly. Multiple hammers mounted on the rotor repeatedly strike the aluminum dross and scrap entering the crushing chamber. Material is impacted, torn, and ground between the hammers and impact liners until reduced to properly sized granules, which then pass through a bottom screen. The crushed material undergoes magnetic separation to remove ferrous contaminants, yielding clean aluminum.
Process Features:
Dry Crushing: High-efficiency dry process; a sealed system with integrated pulse dust collector effectively controls airborne particulates.
Closed System: The entire crushing and screening circuit is enclosed to maintain a clean, compliant working environment.
Multi-Stage Separation: A high-intensity magnetic drum separator removes ferrous metals from the aluminum dross, enhancing product purity.
Aluminum slag crusher operation flow chart
Wide Feed Opening, Large Crushing Chamber
Accommodates bulky aluminum dross blocks, slag agglomerates, and cast aluminum parts without pre-crushing. High feed capacity.
Heavy-Duty Rotor Design, Compact & Rigid
Precision-manufactured heavy-duty rotor provides high rotational inertia for efficient, stable crushing. Compact frame with excellent overall rigidity.
Cast Steel Bearing Housings, High Axial Strength
Cast steel bearing housings enhance axial load capacity and long-term operational reliability under continuous heavy-duty use.
Hydraulic Lid Opener, Easy Maintenance
Integrated hydraulic system with lid opener allows quick access for internal cleaning and hammer replacement, minimizing downtime.
Magnetic Separator Included, Effective Iron Removal
Equipped with a high-intensity magnetic drum separator to efficiently remove ferrous contaminants from aluminum dross, improving recovered aluminum purity and value.
Customizable Output Size, Flexible Adaptation
Screen aperture can be customized to achieve desired output particle size for downstream smelting or sorting processes.
Parameter description diagram for Aluminum Dross Crusher | Aluminum Waste Crushing Machine for Recycling | Haoxing Machinery:
| Model | Main Motor Power (kW) | Hammer Qty | Feed Opening (mm) | Output Size (mm) | Capacity (t/h) | Optional Systems | Weight (t) |
|---|---|---|---|---|---|---|---|
| HX-LZ600 | 22 - 30 | 16 | 600 x 500 | 3 - 20 | 1 - 3 | Magnetic + Dust | 3.8 |
| HX-LZ800 | 37 - 45 | 24 | 800 x 600 | 3 - 20 | 3 - 5 | Magnetic + Dust | 6.0 |
| HX-LZ1000 | 55 - 75 | 32 | 1000 x 800 | 3 - 20 | 5 - 8 | Magnetic + Dust | 9.0 |
| HX-LZ1300 | 90 - 110 | 48 | 1300 x 1000 | 3 - 20 | 8 - 12 | Magnetic + Dust | 13.0 |
| HX-LZ1600 | 132 - 160 | 64 | 1600 x 1200 | 3 - 20 | 12 - 18 | Magnetic + Dust | 19.0 |
*Note: Specifications are for reference only. Actual capacity depends on material density, moisture content, and screen aperture. Custom configurations available upon request. For inquiries, call +86 13592521219.*
Haoxing Machinery's aluminum dross crushing and sorting lines provide comprehensive, systematic solutions for waste aluminum recovery, enhancing disposal efficiency and promoting circular economy development. For details on equipment specifications and custom configurations, please call +86 13592521219. We are dedicated to serving you.
Find common questions about scrap metal crushers, shredders, recycling lines, equipment selection, capacity configuration and operation requirements.
For a capacity of around 10 tons per hour, a larger crusher or a production line with a machine width of 2 meters or above is usually recommended. The final model depends on material type, feeding size, and separation requirements.
