Suitable Projects
Prepared window and door frames, extrusion offcuts, curtain wall profiles, tubing and thermal break profiles.
Aluminum
Profile Processing System

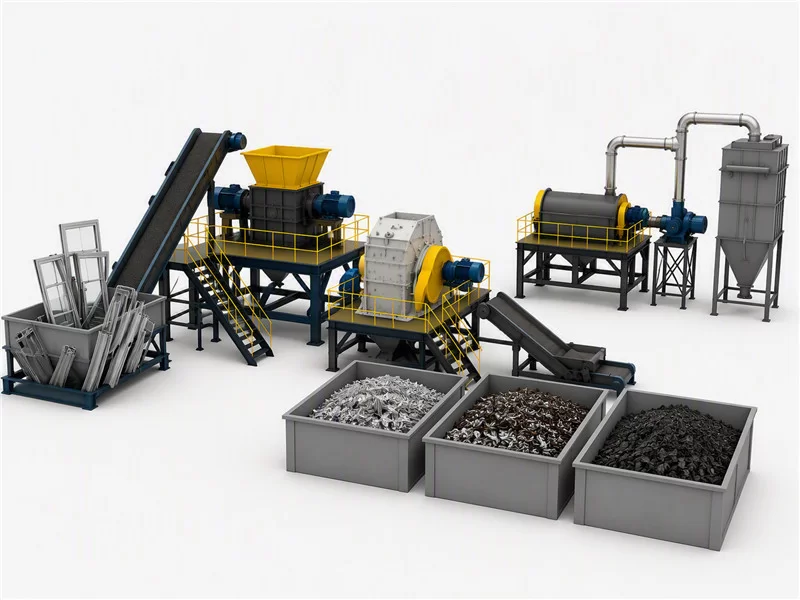

Aluminum Profile Crushing and Sorting Line
A complete line for prepared window frames, extrusion offcuts and thermal break profiles, with optional pre-shredding, hammer crushing, iron removal, screening and further separation.
- Profile Feeding
- Optional Pre-Shredding
- Hammer Crushing
- Attachment Removal
MaterialProfiles and frames
Feed ConditionShort, long or bundled
Main MachineProfile crusher
Pre-ShredderOptional
SeparationIron removal
InstallationSite-specific layout
Purpose and Boundaries
Reduce Aluminum Profiles and Release Attached Components
The line page explains the complete system rather than repeating one machine page.
The line is designed around profile length, wall thickness, hollow structure and attached screws, hinges, rubber or thermal break strips.
Short prepared profiles may enter the crusher directly. Long profiles, complete frames or bundled material may require primary shredding first.
Typical Objective
Open hollow sections, reduce size and expose ferrous and non-metallic attachments.
Separate Evaluation
Glass, batteries, sealed parts, large steel reinforcements and hazardous items must be removed first.
Optional Expansion
Pre-cutting, twin shaft shredding, airflow sorting, eddy current separation and dust collection.
Incoming Material
Profile Length and Attachments Determine the Process
Profile length, bundle condition, frame construction, wall thickness and attached materials determine direct crushing or primary shredding.
Representative material photos and videos are more useful than a
material name alone.
Profile LengthConfirm short pieces, long sections and
complete frames.
Wall ThicknessProvide normal and maximum profile
thickness.
Bundle ConditionBundled or tangled profiles may need
coarse shredding.
AttachmentsIdentify screws, hinges, steel inserts,
rubber and insulation strips.
Required OutputDefine particle size and desired
separation result.
Production Process
How the Aluminum Profile Crushing and Sorting Line Works
Only the stages required by the material and target output are included.
Material Preparation
Remove glass and unsuitable components.
Controlled Feeding
Feed profiles according to length and shape.
Optional Pre-Shredding
Reduce long or bundled profiles.
Profile Crushing
Hammer-crush and control output by screen.
Magnetic Separation
Remove exposed ferrous attachments.
Screening
Classify aluminum-rich fragments.
Further Sorting
Separate suitable prepared fractions.
Equipment Configuration
Each Machine Has a Defined Role in the Line
Equipment is selected for a specific task rather than added as a fixed package.
Usually Required
Slat Conveyor
Feeds profiles into the selected size-reduction stage.
View equipment details →
Optional Pre-Treatment
Thermal Break Aluminum Shredder
Coarsely shreds long thermal break profiles and frames.
View equipment details →
Main Machine
Aluminum Profile Crusher
Hammer-crushes profiles into screen-controlled pieces.
View equipment details →
Usually Recommended
Magnetic Separator
Removes exposed screws, hinges and steel reinforcements.
View equipment details →
Optional Expansion
Eddy Current Separator
Recovers conductive metal from suitable residue.
View equipment details →Machine Selection Logic
Direct Profile Crushing or Add Primary Shredding?
Different machines solve different processing problems and should not be presented as interchangeable.
Direct Profile Crushing
- Profiles are short and prepared
- Feed fits the crusher opening
- Material is not severely tangled
- A stable feed rate is possible
VS
Add Primary Shredding
- Complete frames are bulky
- Profiles are long or bundled
- Material bridges at the inlet
- Coarse preparation is needed first

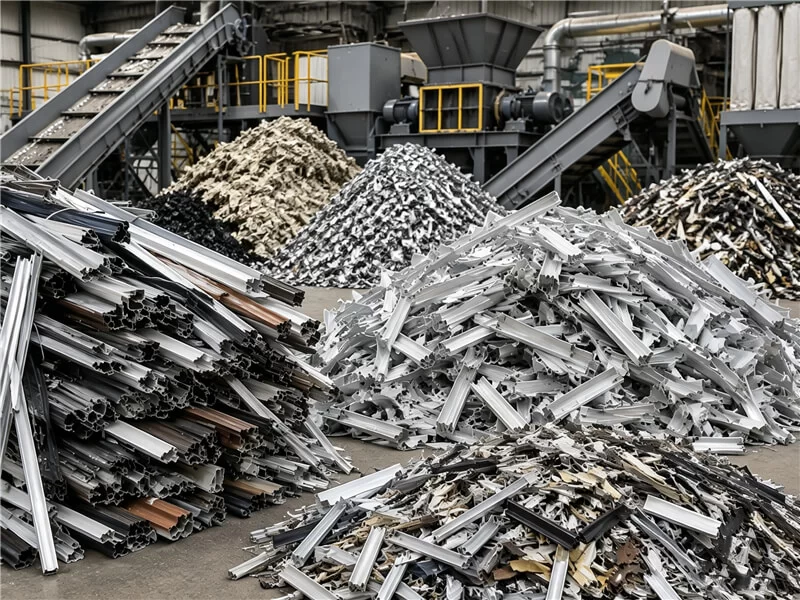

Processed Output
Show the Material Streams, Not Only the Machinery
The final output depends on feed composition, liberation and installed separation stages.
Aluminum Profile Fraction
Smaller aluminum-rich pieces after crushing and iron removal.
Ferrous Attachments
Recovered screws, hinges and steel inserts.
Insulation and Residue
Thermal break strips, rubber and loosened non-metallic material.
Detailed Line Information
Production Line Details
Review working videos, technical data and project information.
Aluminum Profile Processing Overview
The aluminum profile crushing and sorting line is designed for prepared window and door frames, extrusion offcuts, curtain wall profiles, aluminum tubing and thermal break profiles. The main processing objective is to open hollow sections, reduce profile size and expose attached screws, hinges, steel inserts, rubber and insulation strips.
The processing route depends on profile length, wall thickness, bundle condition and attached components. Short prepared profiles may enter an aluminum profile crusher directly, while long profiles or complete frames may require primary shredding.
Direct Crushing or Primary Shredding
Direct crushing is suitable when the profiles fit the crusher opening, can be fed steadily and do not create serious bridging or tangling. The aluminum profile crusher uses high-speed hammer impact and a screen to reduce the prepared material and control the maximum discharge size.
A twin shaft shredder can be installed before the crusher when the feed consists of long profiles, bundled offcuts or complete prepared frames. The shredder performs low-speed coarse size reduction and improves feeding conditions for the downstream crusher.
Attachment Removal and Output Preparation
Magnetic separation is generally recommended when the profiles contain screws, hinges, steel reinforcements or other ferrous components. Effective crushing helps expose these attachments before the material reaches the magnetic separator.
Screening can classify the aluminum-rich fragments into suitable size ranges. Thermal break strips, rubber and other loosened non-metallic material may require airflow separation, screening or another sorting method depending on the required product quality.
Material and Project Information
Glass, batteries, sealed components and unsuitable hazardous items must be removed before feeding. Large steel reinforcements that cannot be processed safely should also be separated in advance.
For equipment selection, please provide representative profile photos, maximum length, wall thickness, frame dimensions, bundle condition, attached materials, required capacity and expected output size. Final machine models and line arrangement are confirmed according to the actual feed and available installation space.
Reference Configurations
Three Practical Configuration Levels
Final models and performance are confirmed after reviewing representative material information.
Prepared Profile Crushing
- Controlled feeding
- Aluminum profile crusher
- Discharge conveyor
- Electrical control
For short prepared profiles within feeding limits.
Crushing and Iron Removal
- Controlled feeding
- Profile crushing
- Magnetic separation
- Screening
- Dust collection
For profiles containing ferrous attachments.
Pre-Shredding and Sorting
- Twin shaft pre-shredding
- Profile crushing
- Magnetic separation
- Screening
- Optional further sorting
For long, bundled or complete prepared frames.
Layout and Installation
The Line Is Arranged Around the Site
Equipment spacing, conveyor length and collection positions depend on building dimensions, loading method, maintenance access and final material handling.
Machine foundationsMaintenance
clearancesFeed loading areaOutput collection
areasElectrical cabinet locationDust duct
routingCrane and lifting accessFuture expansion space

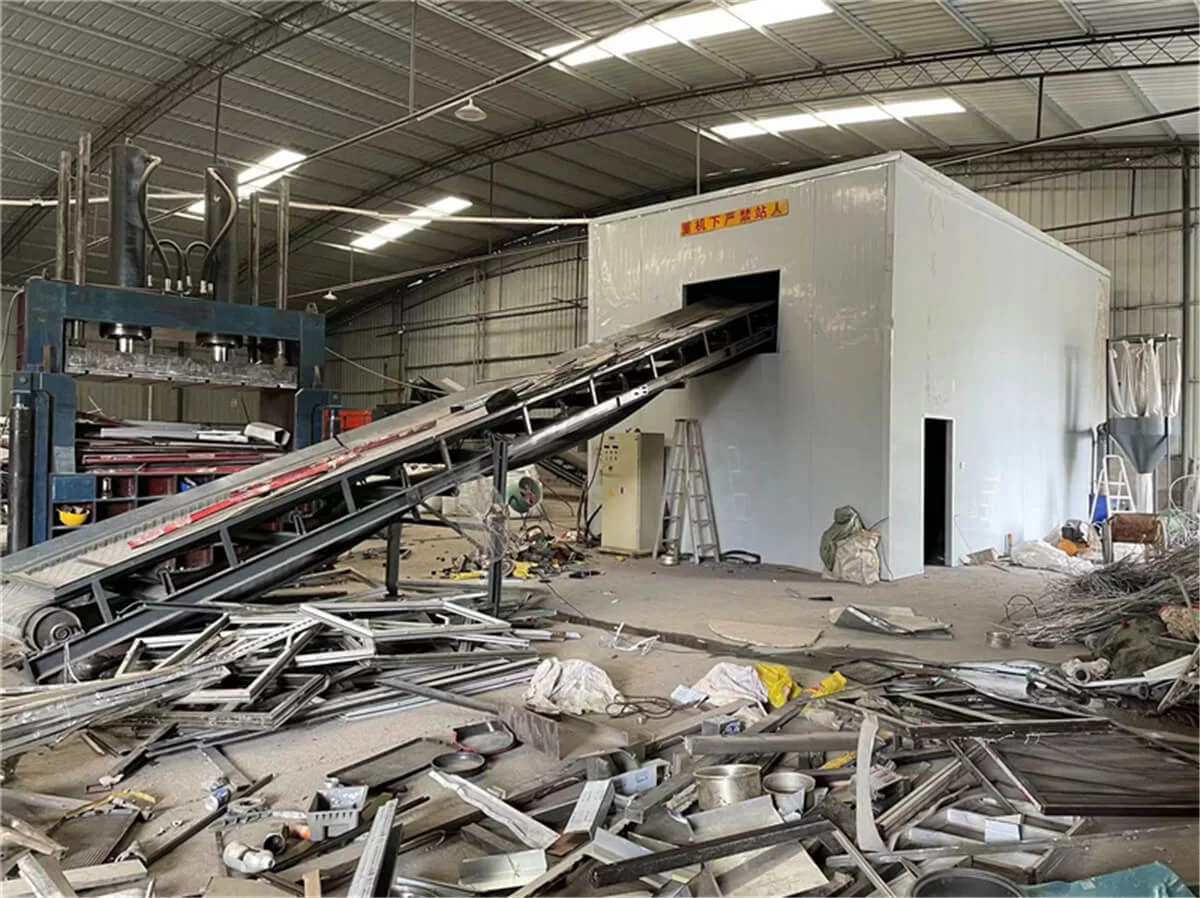

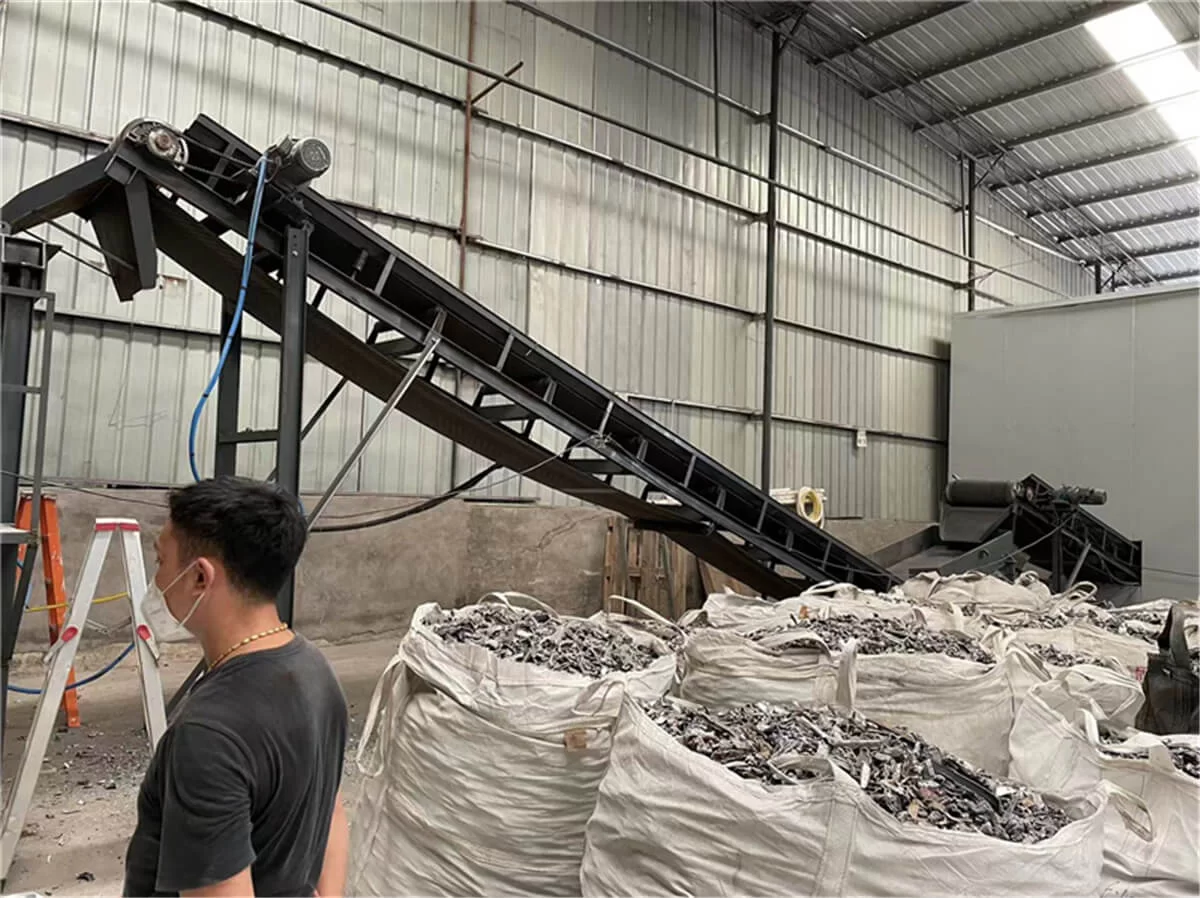

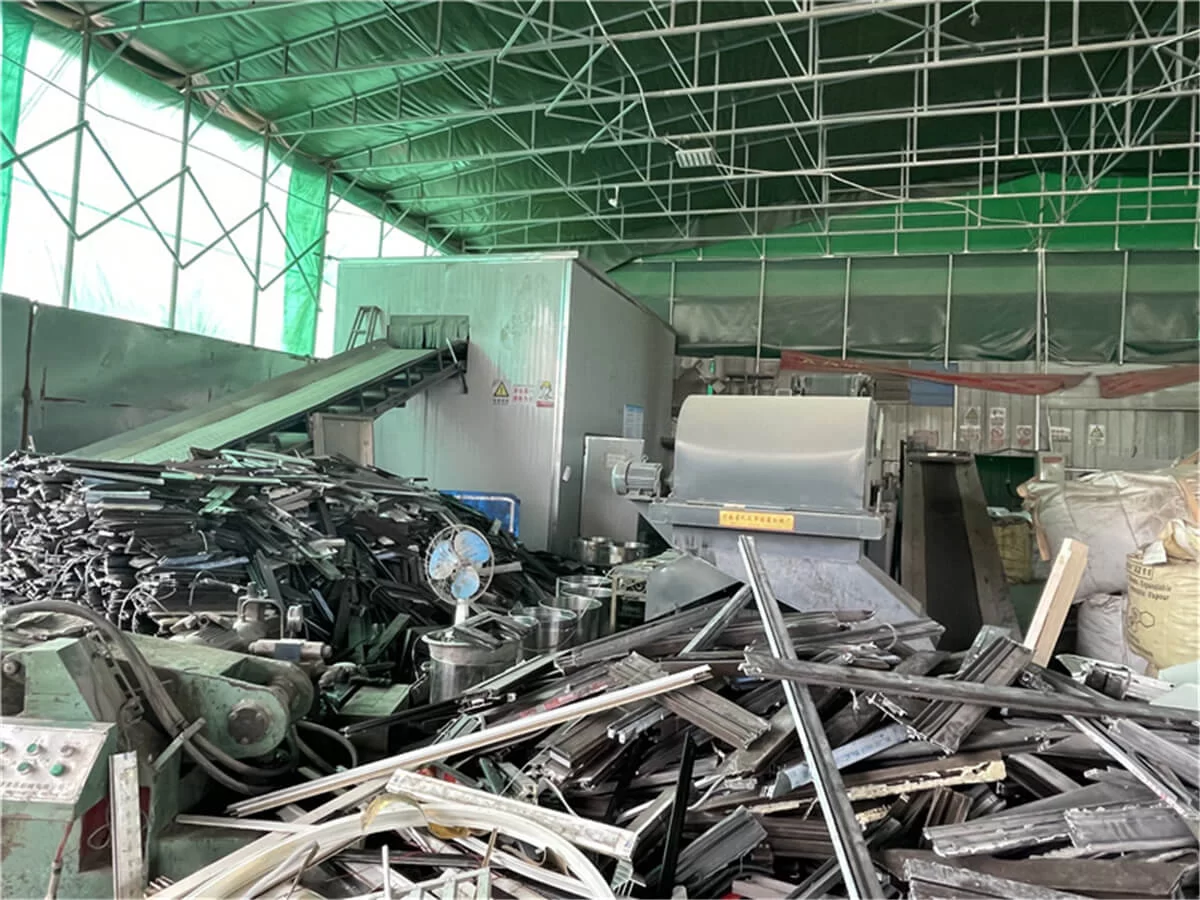

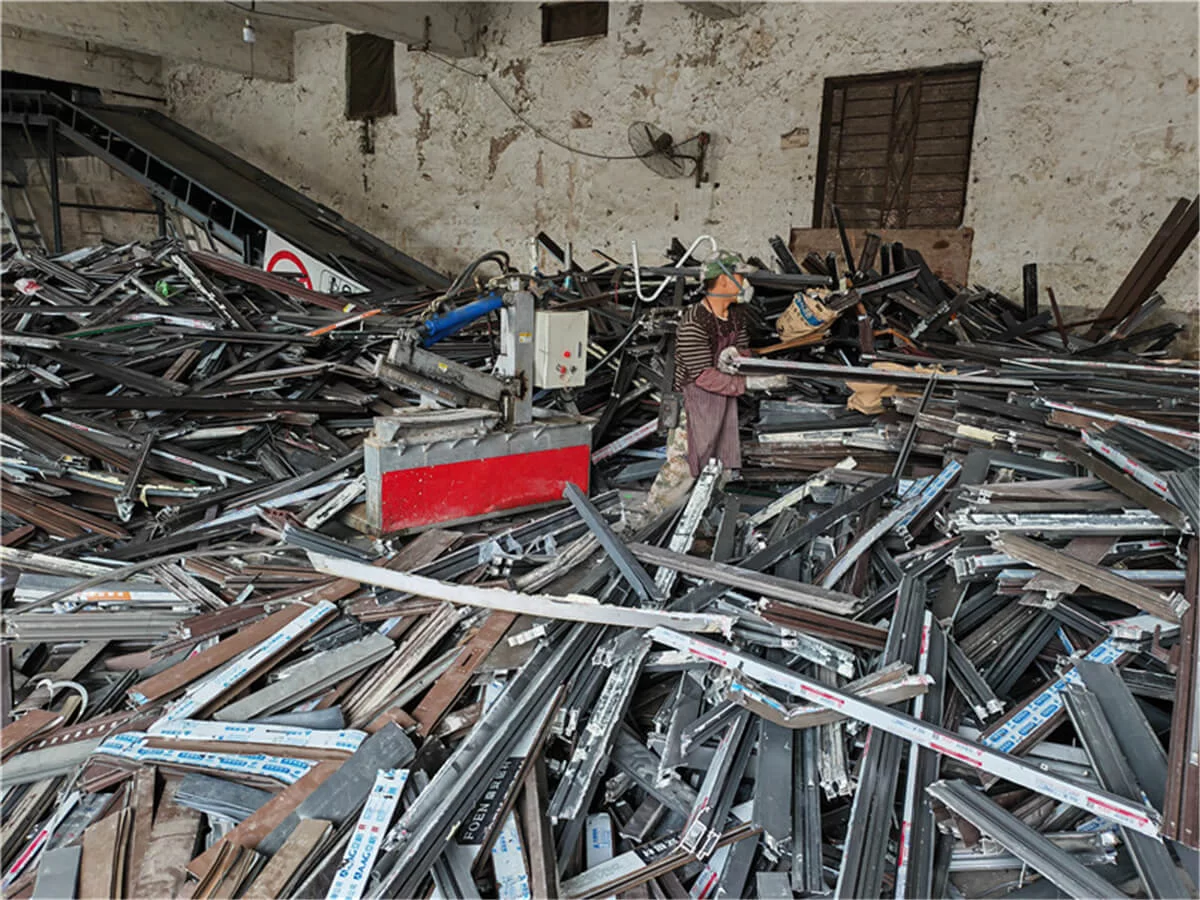

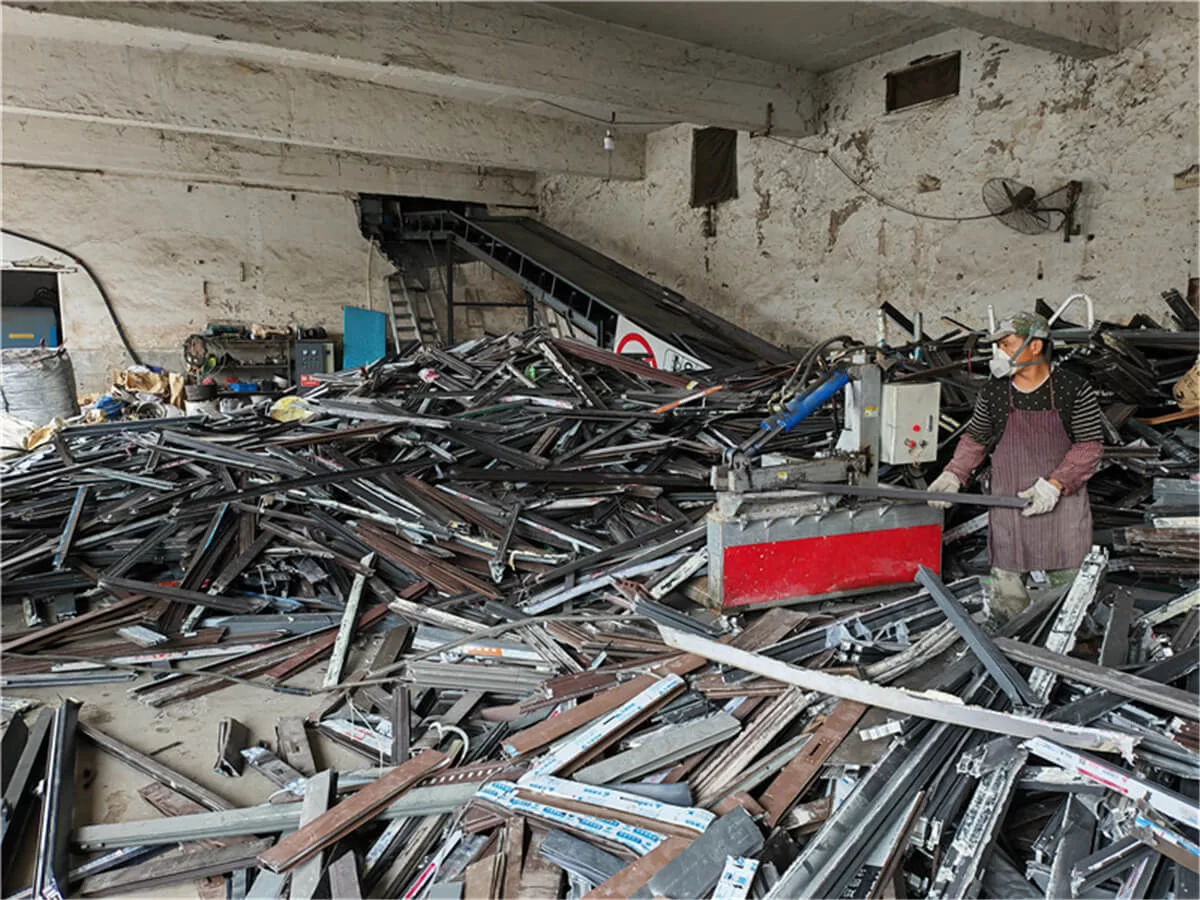

Production Line Gallery
Use Line Images for Installation, Connection and Output
The gallery stays in the content rather than dominating the top like a single-machine carousel.
Frequently Asked Questions
Questions Specific to the Complete Line
When is a twin shaft shredder needed?
Primary shredding is recommended when complete frames, long profiles or bundled material cannot enter the aluminum profile crusher safely and consistently. The twin shaft shredder performs low-speed, high-torque coarse size reduction before the material enters the downstream crushing stage.
Can complete windows with glass enter the line?
No. Glass, batteries, sealed components and other unsuitable materials should be removed before feeding. Complete frames should also be checked for large steel reinforcements or components that could interfere with stable processing.
Does the line completely separate aluminum and plastic strips?
The separation result depends on the profile structure, crushing conditions, particle size and degree of material liberation. Screening, airflow separation or additional sorting equipment may be required to remove loosened thermal break strips, rubber and other non-metallic material.
Can short aluminum profiles enter the crusher directly?
Short and prepared aluminum profiles may enter a suitable profile crusher directly when the material fits the feeding opening and can be supplied at a stable rate. Long, bundled or tangled profiles may require pre-cutting or primary shredding before crushing.
How are screws, hinges and steel reinforcements removed?
Hammer crushing opens the profile structure and exposes attached ferrous components. A magnetic separator installed after the crusher can recover suitable screws, hinges, brackets and steel inserts. Separation performance depends on material liberation, particle size and feeding thickness.
Does the aluminum profile line require an eddy current separator?
Not every project requires an eddy current separator. Magnetic separation is normally used first to remove iron and steel. Eddy current separation may be considered when the prepared non-magnetic residue contains recoverable conductive metal mixed with suitable non-conductive material.
Project Evaluation
Send the Material Before Selecting the Line
The final configuration should be based on real feed conditions and required output, not a fixed equipment package.
