Professional Metal Recycling Equipment Manufacturer

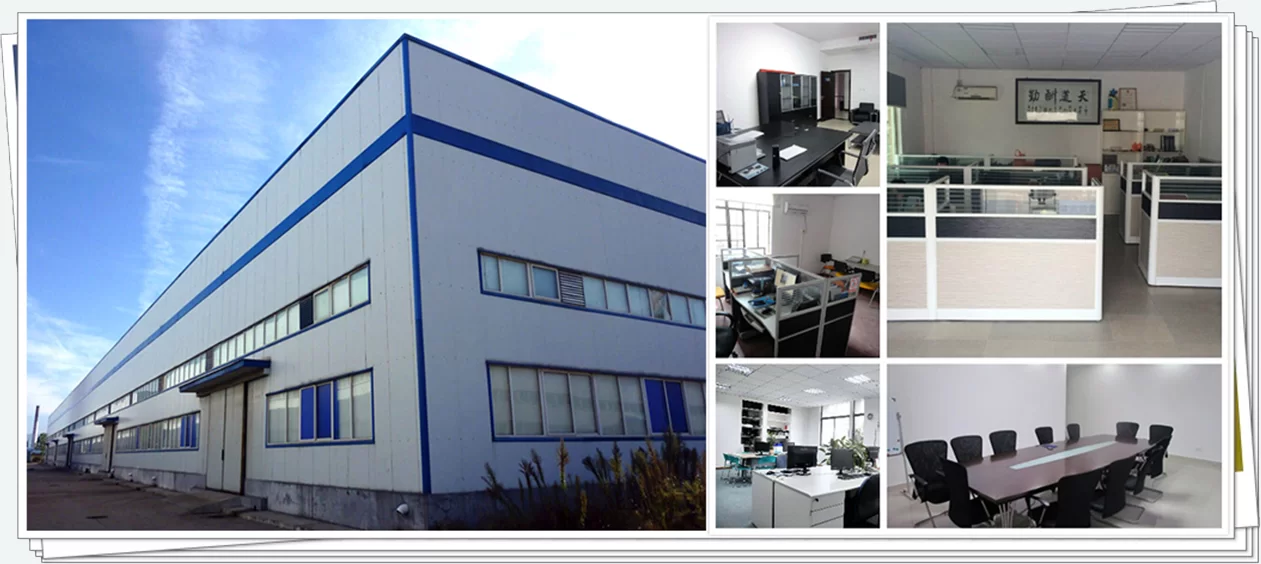

Gongyi Haoxing Machinery Factory, also known as Haoxing Machinery, was established in 2007. We manufacture scrap shredding, crushing, conveying and sorting equipment for metal recycling facilities. Our factory covers more than 20,000 square meters and combines equipment development, production, assembly, testing and sales in one operation.

Haoxing Machinery serves recycling yards, metal recovery centers and industrial scrap processors. Our equipment can be supplied as an individual machine or configured as part of a complete scrap metal recycling line according to the feed material, required capacity, output size and separation objective.

1. Core Equipment and Recycling Solutions

Our equipment is designed for processing ferrous scrap, aluminum scrap, compressed metal bales, end-of-life vehicle materials, appliance shells, metal profiles and mixed industrial scrap. The recommended machine depends on the material size, thickness, bulk density, composition and required processing result.

Our main equipment and processing systems include:

• Scrap Metal Crusher: Uses high-speed hammer impact to reduce scrap steel, light iron and aluminum materials into smaller and denser pieces. Screens can be used to control the discharge size for downstream separation or furnace charging.

• Twin Shaft Shredder: Provides low-speed, high-torque primary shredding for bulky, loose or compressed scrap. It is commonly used before hammer crushing when the original material is too large or dense for direct feeding.

• Single Shaft Shredder: Suitable for selected light materials and applications requiring controlled discharge size through a screen.

• Eddy Current Separator: Recovers aluminum and other conductive non-ferrous metals from suitable non-metallic fractions after crushing, screening and magnetic separation.

• Magnetic Separator: Removes or recovers ferrous metals from the processed material before it enters subsequent sorting stages.

• Can Flattening Machine: Reduces the volume of loose used beverage cans to simplify storage, feeding and transportation.

• Alligator Shear: Cuts metal bars, profiles and selected structural scrap into manageable lengths for further processing.

• Gantry Shear: Provides hydraulic cutting for heavier and larger steel scrap that requires size reduction before handling or recycling.

Crushers and shredders perform different functions. A shredder normally provides low-speed, high-torque primary size reduction, while a crusher uses high-speed hammer impact for secondary crushing, densification and improved material liberation. Equipment is selected according to the actual feed material rather than treated as interchangeable machinery.

2. Aluminum Scrap Recycling Equipment

Aluminum scrap varies greatly in shape, density and contamination level. Thin profiles, cast aluminum parts, used beverage cans, machining waste and mixed aluminum materials may require different feeding, crushing and sorting processes.

Haoxing Machinery can configure an aluminum recycling line around the customer’s raw material and required final product. Depending on the application, the line may include primary shredding, hammer crushing, magnetic separation, screening, non-ferrous metal sorting, conveying and dust collection.

• Thermal Break Aluminum Profiles: Processing systems can be configured to reduce aluminum window and door profiles and help separate aluminum from plastic thermal strips.

• Cast Aluminum Parts: Suitable crushing equipment can process engine housings, transmission housings, crankcases and other cast aluminum components.

• Metal Turnings: The process must be selected according to chip length, moisture, oil content, bulk density and the required discharge condition.

• Used Beverage Cans: Loose or baled cans can be flattened, opened, crushed or sorted according to the contamination level and required processing capacity.

• Mixed Aluminum Profiles: Window frames, door frames and industrial extrusion offcuts can be processed through suitable size reduction and separation stages.

For profile recycling projects, an aluminum profile crushing plant may combine feeding, hammer crushing, magnetic separation and additional sorting equipment. Primary shredding can be added when the profiles are long, bulky, bundled or difficult to feed directly into the crusher.

Final aluminum purity depends on the feed composition, particle size, material liberation and selected separation process. Material testing is recommended when the feed contains copper, stainless steel, plastic, rubber or several aluminum grades.

3. Baled Scrap Shredding Solutions

Baled scrap metal can contain compressed steel sheets, aluminum pieces, appliance shells, binding wire and non-metallic impurities. Bale dimensions, approximate weight, density, material thickness and internal composition should be checked before selecting the feeding and shredding equipment.

A baled scrap shredder uses low-speed, high-torque cutting to open compressed bales and reduce oversized material into a more manageable feed size. Blade thickness, cutter chamber size, motor power and feeding method are selected according to the bale dimensions and required capacity.

For continuous processing, a baled scrap shredding plant may include a chain plate conveyor, primary shredder, discharge conveyor, magnetic separation, screening, dust collection and centralized control. Hammer crushing and additional non-ferrous separation equipment can be added when further size reduction or metal recovery is required.

The final process depends on whether the project only requires bale opening and volume reduction or needs complete crushing, sorting and material recovery.

4. Manufacturing and Quality Control

Equipment reliability depends on structural design, material selection, machining accuracy, assembly quality and correct equipment selection. Haoxing Machinery carries out production and assembly in its own workshops and checks the main components before delivery.

• Heavy-Duty Fabrication: Machine frames and housings are produced according to the load and operating requirements of each model.

• Wear-Resistant Components: Hammer heads, liners, cutters and other wear parts are selected according to the processed material and expected working conditions.

• Maintenance Access: Selected crusher models can be equipped with hydraulic opening systems to simplify chamber inspection and replacement of internal wear parts.

• Rotor Inspection: Crusher rotors are checked during manufacturing and assembly to support stable operation and reduce unnecessary vibration.

• Pre-Delivery Testing: Equipment is inspected and tested before shipment according to the machine configuration and project requirements.

Actual production capacity and wear-part service life vary with material type, thickness, contamination, feeding consistency and operating conditions. For this reason, a model should not be selected only by motor power or nominal hourly capacity.

5. Complete Scrap Processing Lines

Haoxing Machinery supplies individual machines as well as complete production line solutions. A scrap metal recycling line can be configured for primary shredding, secondary crushing, material screening, ferrous recovery, non-ferrous separation, conveying and dust control.

Common production line components include:

• Feeding Equipment: Chain plate conveyors, belt conveyors and other feeding systems selected according to material size and weight.

• Primary Shredding: Reduces bulky or compressed scrap before secondary crushing and separation.

• Secondary Crushing: Improves size reduction, material liberation and output consistency through hammer impact.

• Screening: Controls particle size and separates oversized, undersized or fine material fractions.

• Ferrous Recovery: Uses magnetic separation to recover iron and steel from the processed stream.

• Non-Ferrous Sorting: Recovers suitable conductive metals after ferrous material and fine impurities have been removed.

• Dust Control: Collects airborne dust generated during crushing, screening and material transfer.

• PLC Control: Coordinates the operation of the main machine, conveyors and auxiliary equipment.

Not every project requires every processing stage. The line can be simplified or expanded according to the raw material, required throughput, target output size, recovery objective, environmental requirements and available installation space.

6. Project Design and Customer Support

Before recommending equipment, we evaluate the material and project requirements rather than selecting a machine based only on the requested hourly capacity.

• Material Evaluation: Review of raw material photos, videos, dimensions, thickness, composition and contamination level.

• Process Configuration: Selection of shredding, crushing, screening and separation stages according to the required output.

• Production Line Layout: Equipment arrangement based on the available plant length, width, height and material flow.

• Installation Support: Technical guidance for equipment installation, connection, commissioning and trial operation.

• Operator Training: Instructions covering routine operation, inspection, maintenance and replacement of wear parts.

• Spare Parts Supply: Continued supply of suitable wear parts and replacement components for installed equipment.

To prepare a suitable proposal, customers should provide the raw material type, maximum feeding size, material thickness, bale dimensions when applicable, required capacity, expected output size, target recovered materials, local power supply and available plant dimensions.

7. Company Development

Since 2007, Haoxing Machinery has continued to develop equipment for scrap metal size reduction and material recovery. Our focus is on practical equipment configuration, stable production, convenient maintenance and processes suited to the customer’s actual material.

As recycling facilities move toward greater automation and stricter environmental requirements, we continue to improve equipment control, dust management, process coordination and energy use. Our objective is to help customers obtain consistent processing results while controlling operating and maintenance costs.

• Lower Energy Use: Select equipment and motor configurations according to the actual processing requirement.

• Improved Material Recovery: Match crushing, screening and sorting stages to the composition of the feed material.

• Safer Operation: Use centralized control, overload protection and suitable maintenance access where required.

• Flexible Line Configuration: Adjust equipment models and process stages for different capacities and plant layouts.

Whether the requirement is an individual machine or a complete industrial processing system, Haoxing Machinery can provide equipment recommendations based on the actual raw material and production objective.
