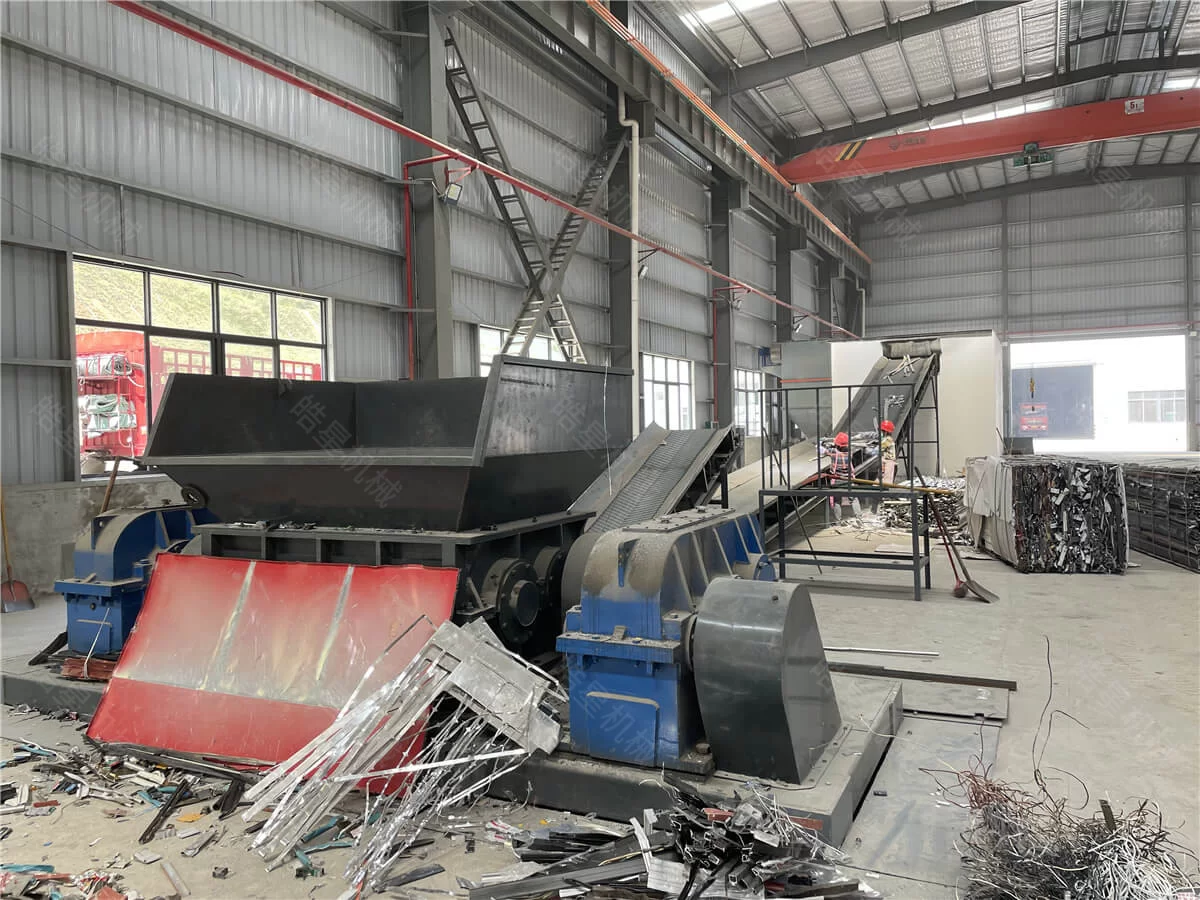

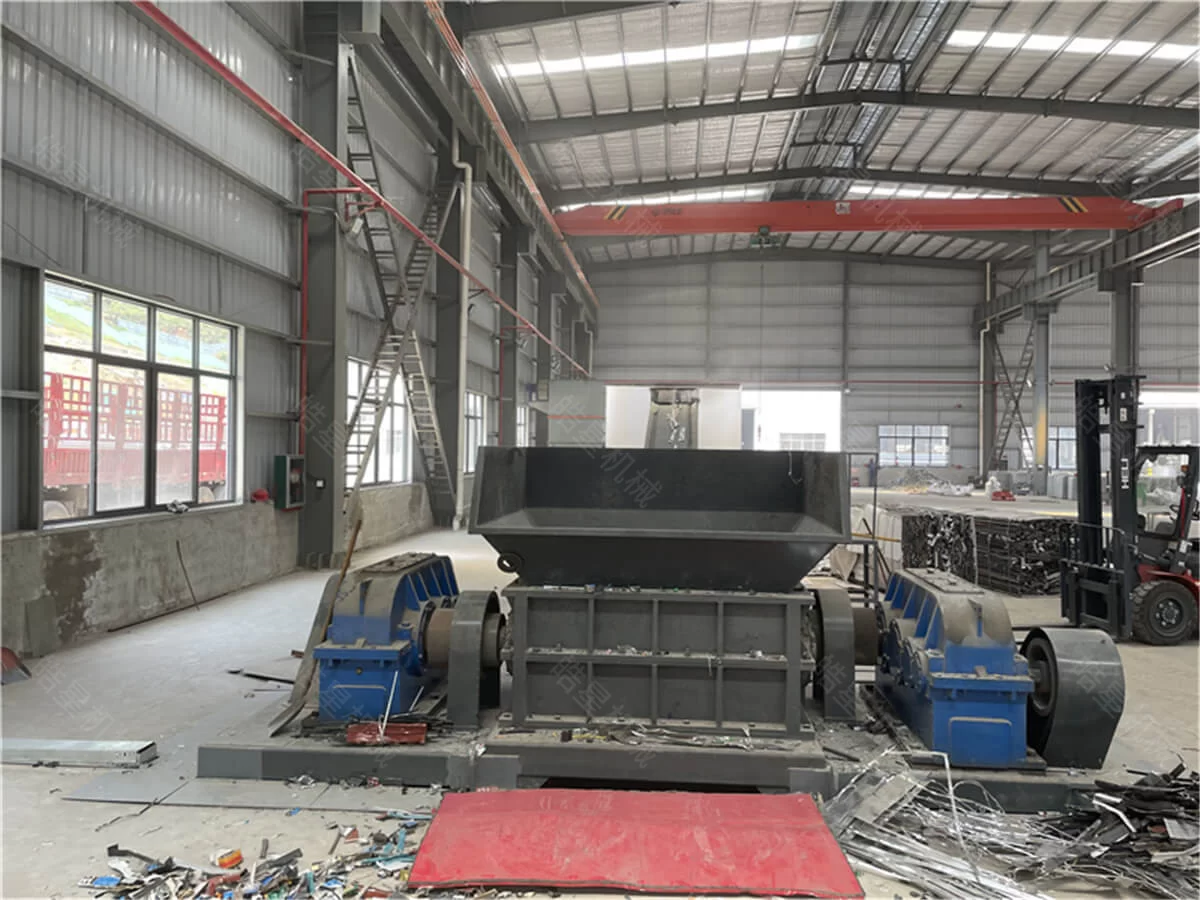

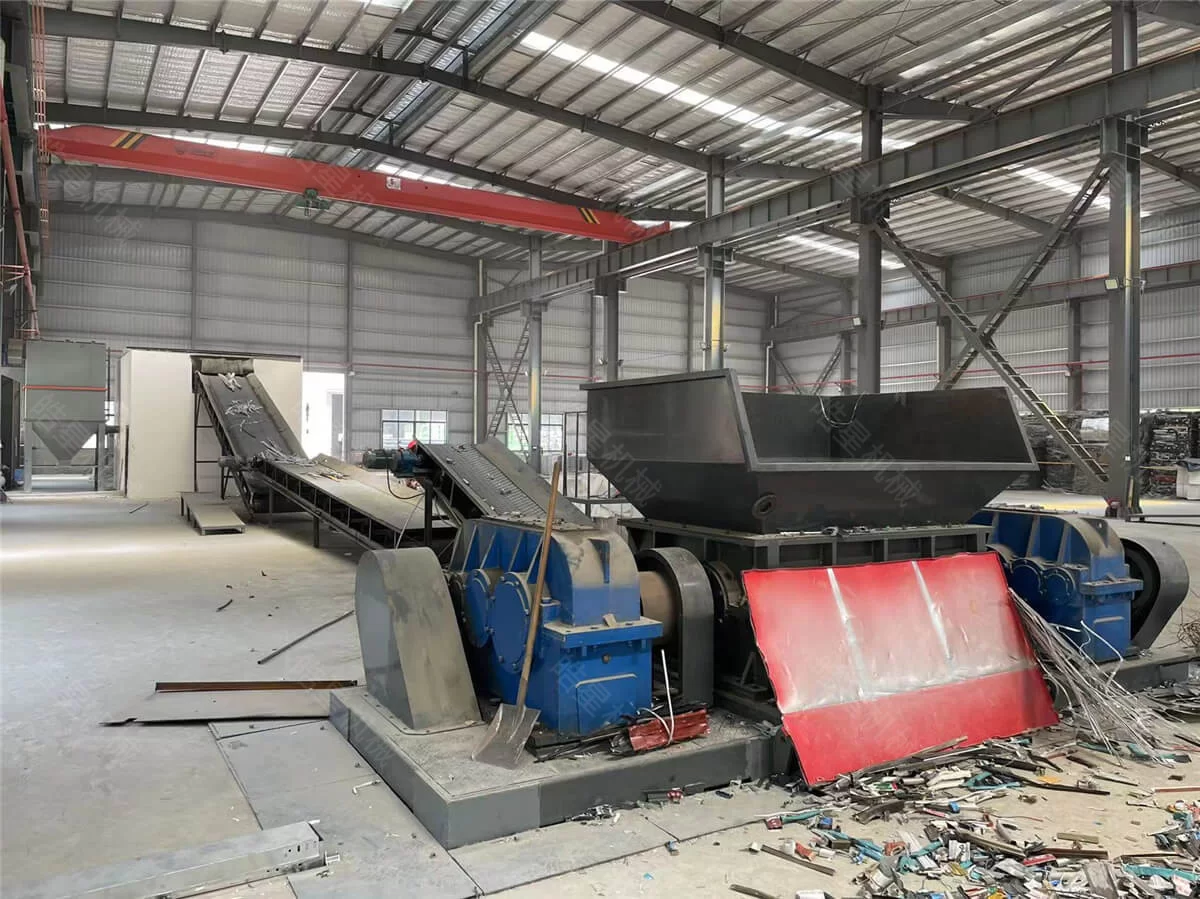

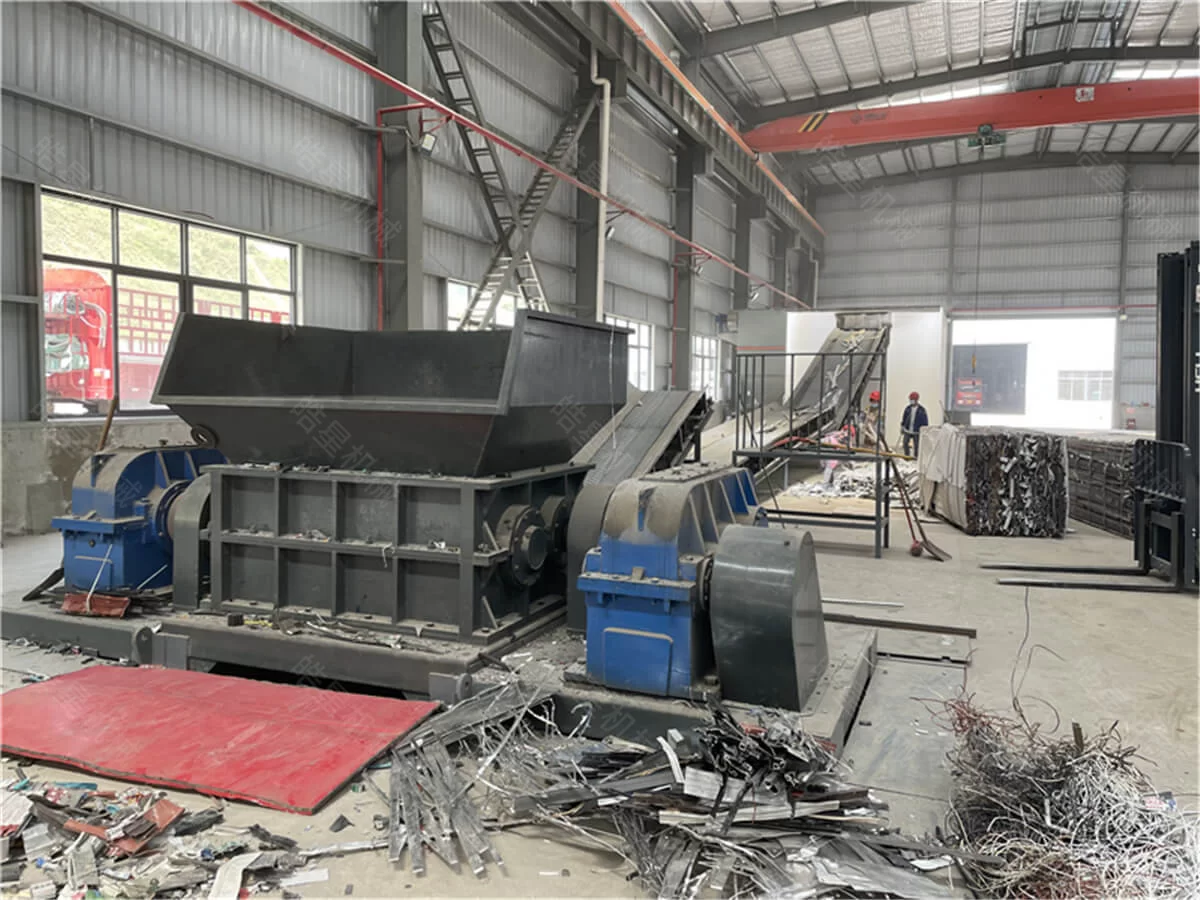

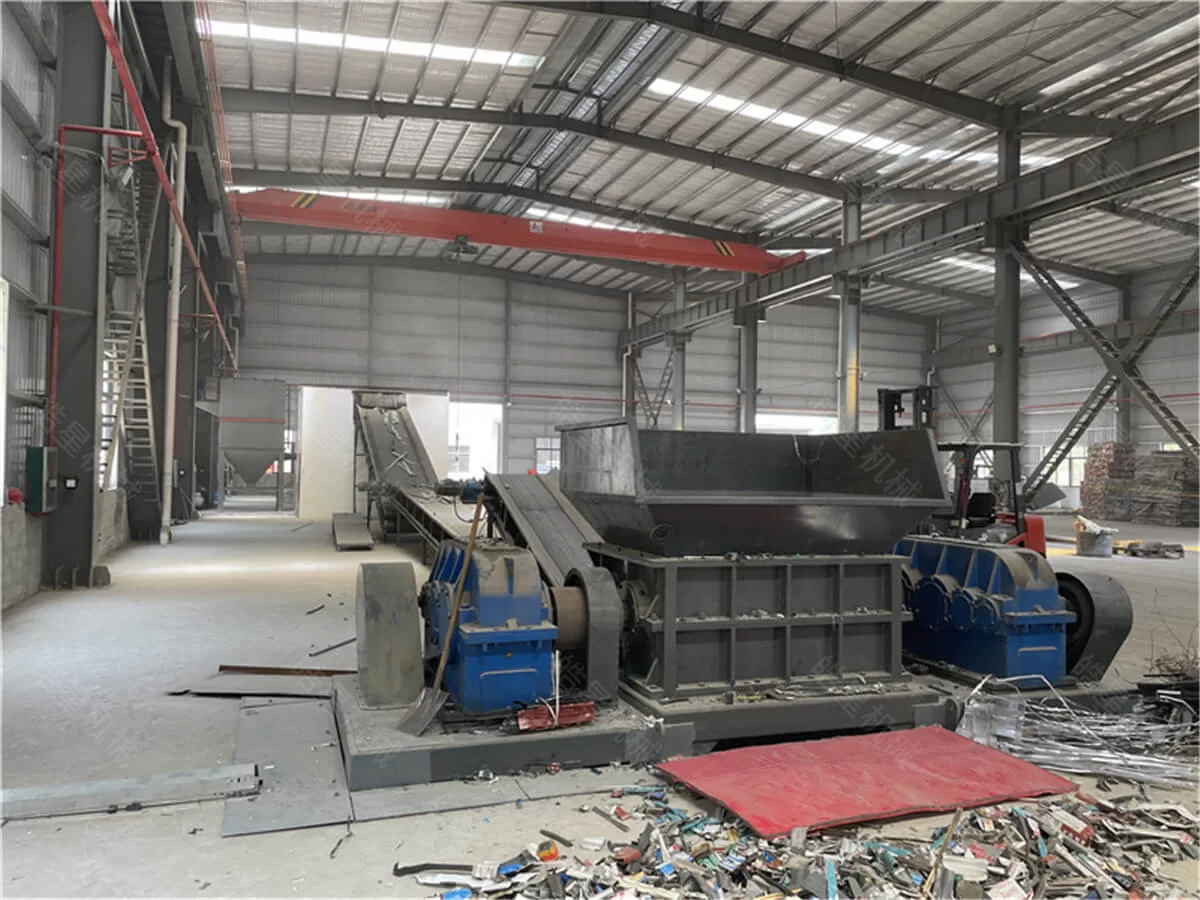

Scrap Steel Shredder
Applicable Materials：Crushing materials such as scrap car frames, end-of-life household appliances, light scrap iron, various aluminum profiles, aluminum offcuts, die-cast aluminum, raw aluminum castings, etc..
Diagram of the Crushing Surface Structure of the HX-PJ Series Metal Crusher Main Machine：
hxps1600 Scrap Steel Crusher Main Machine and Production Line Operation Demonstration Video：
The scrap steel shredder is an ideal and specialized piece of equipment for processing various types of large scrap steel. It can batch-shred materials such as scrapped cars, end-of-life home appliances, bicycles, motorcycles, and car shells.
The shredded steel has high density, good purity, and low impurities, offering high economic value. It can be sent directly to steel mills for remelting. The equipment features low energy consumption and high output, resulting in significant overall economic benefits.
During the shredding process, the machine effectively removes rust, paint, and other contaminants from the steel surface. When combined with a magnetic separation system, it can separate and sort mixed non-ferrous metals, plastics, rubber, and other non-metallic materials. This not only yields clean shredded steel but also allows non-ferrous metals to be manually sorted and recycled.
The bulk density of clean shredded steel can reach approximately 1.3 t/m³, making it a high-quality furnace charge for electric arc furnace steelmaking. It is suitable for shredding metal materials such as steel ingots and billets.
The HXPS series scrap steel crusher mainly targets the list of metal materials：
hxps series scrap steel crusher manufacturer manufacturing and production line operation demonstration video：
Applicable Materials
Scrap vehicles and frames (cars, motorcycles, electric vehicles, three-wheeled vehicles, agricultural machinery, tractors, construction machinery)
Scrap metal sheets, containers, and shells (iron sheets, iron drums, paint buckets, color-coated steel sheets, fences, radiators, air conditioner/refrigerator/washing machine shells)
Structural steel offcuts, metal doors and windows, scrap aluminum (rebar ends, angle steel, channel steel, I-beams, door/window frames, aluminum profiles, scrap aluminum, scrap machine aluminum)
Scrap cable sheathing, light-gauge scrap iron, briquetted scrap steel
Other metal scraps (stainless steel, kitchenware, cabinets and lockers, auto parts, tools, farm tools, bearings, etc.)
The scrap steel shredder uses high-speed rotating hammers to impact, shear, and tear scrap steel, combined with a screen to control particle size, and then separates pure steel through magnetic separation and other methods. This is a processing method that uses a sorting system to sort the shredded scrap steel to obtain clean, high-quality scrap steel. Its working principle is as follows: driven by a high-speed, high-torque motor, the hammers on the shredder rotor strike the scrap steel material entering the chamber in turn. Under strong impact, the scrap steel is torn and hammered into a specified size of shredded steel. After being processed by sorting equipment, high-purity, high-quality shredded steel is obtained. When hard objects that cannot be shredded, such as large iron blocks, enter the chamber, the tramp metal protection device automatically ejects them and then immediately resets, without affecting the normal operation of the equipment.
HXPS series scrap steel crusher production line material handling and production line equipment composition：
Standard configuration of the scrap steel shredder production line includes:
1 set of main shredder, 1 set of matching drive motor, 1 set of central control cabinet, as well as core auxiliary equipment such as feed conveyor, discharge conveyor, and magnetic separator.
Notes:
The motor configuration can be selected according to the user's investment scale and working intensity.
Additional equipment such as dust removal system, eddy current separator, vibrating feeder, motor, etc., can be added based on actual needs.
Flowchart of HXpj Series Equipment Scrap Steel Crusher Processing Production Line：
1.Machine Housing: The shell of the scrap steel crusher is made of extra-thick steel plates in its construction.
2. Liner: The interior is lined with high-manganese cast steel components to protect the external machine body.
3. Rotor Disc: At the rotor section of the main machine, this machine uses a disc-type fastening rotating mechanism.
4. Pin Shaft: Several steel discs are mounted on a horizontal shaft on the rotor (the number and diameter of the steel discs depend on the model), and several pin shafts are distributed around the circumference of the steel discs.
5. Hammer: Several hammers, both fixed and moving, are suspended on the shaft, all made of high-quality chromium steel 12 material, which is truly wear-resistant and durable. They can be used long-term for striking and crushing materials.
6. Lubrication System: The main shaft is supported by ball bearings, with circulating oil for forced lubrication and cooling.
7. Temperature Sensing: The main shaft is equipped with a temperature sensor to ensure the equipment runs stably at high speed. The combination of the housing and the main shaft completes the crushing operation of scrap metal.
8. Feeding and Shearing Device: Our company has independently developed a matched forced cutting and extrusion feeding device, which can effectively assist the pre-crushing of the scrap steel crusher to improve the crushing work efficiency.
Parameter description diagram for Scrap Steel Shredder：
The scrap steel shredder is a core piece of equipment for the recycling and reuse of scrap metal resources, and also the key main machine of a scrap steel shredding production line. It is mainly used to break various light metal sheets into uniform small pieces, facilitating subsequent sorting and purification, thereby obtaining relatively pure ferrous metal raw materials.
The equipment can process various types of scrap metal, including car shells, paint buckets, scrap aluminum, etc. The crushed metal particles are easy to transport, convenient for direct feeding into steelmaking furnaces, and can significantly reduce the number of feeding operations. With high crushing efficiency, stable operation, and strong applicability, the shredder is an ideal piece of equipment for metal recycling.
Related equipment
1600 Scrap Steel Crusher Rotor and Hammer Structure Parts Photos | Haoxing Machinery
1200 Scrap Aluminum Crusher Parts Workshop Photos | Haoxing Machinery
1200 Eddy Current Separator Workshop Photos | Haoxing Machinery
FAQ：
Q：一小时准备加工2.3吨料用哪种破碎机？
A：你好！可以选择中型1300型设备。
Q：一吨机铝用破碎机加工出料铝如何？
A：使用废铝破碎机的出铝率在93%
Q：破碎工业废金属加工厚度多少？
A：破碎厚度100mm以下物料
Q：每小时3吨的废钢破碎分选线怎么配置了？
A：可以选择1600型的破碎机，结合您场地的实际情况来进行配置。
Q：这机器有*小型号的吗？
A：小型的有800型，1000型的，产量相应小些。
Q：How often should hammers and other wear parts be replaced?
A：About every 3-6 months for normal scrap aluminum; a shorter lifespan if impurities are high.
Q：Are environmental permits needed for scrap aluminum crushing?
A：Yes, an EIA (Environmental Impact Assessment) is mandatory, along with dust collectors and meeting emission/noise standards.
Q：我想咨询下2米的设备价格？
A：请问您的物料是什么，我帮您出份详细报价单。
Q：What is your output capacity? My processing capacity is 8 tons/can it be used?
A：Absolutely, equipment products from 1-10 tons/h are all possible
Q：这是多大型号的机器，生产挺顺畅的。
A：视频中是1200型的金属撕碎机在撕碎机汽车玻璃，双星机械每台型号的撕碎机加工效果都是非常均匀的，我们实体厂家可以进行现场试机。欢迎咨询。
Q：What’s the main difference between a shredder and a crusher?
A：Shredders use low-speed, high-torque blades to tear material, ideal for primary shredding of bulky items. Crushers use high-speed hammers for fine grinding.
Q：我也想加工这种料，我可以去现场看实际情况吗？
A：请问你的原材料是一样的吗？您是哪个地区的？我帮您联系离您较近现场考察。
Q：Is the machine noisy and how to reduce it?
A：Noise typically reaches 80-95 dB. A soundproof room or enclosure is needed.
Q： Can a scrap steel crusher process aluminum?
A：Yes, but dedicated machines are recommended. Aluminum’s toughness requires hammer and screen adjustments to avoid clogging and over-crushing.
Q：How much space does a crushing and sorting line require?
A：Around 30-80 m² for a small-medium line, and over 100 m² for a large one.
Q：这设备啥价位老板？
A：价格根据型号来定，欢迎来老板来电联系
Q：不锈钢可以专门回收吗？
A：可以的亲
