Project Overview

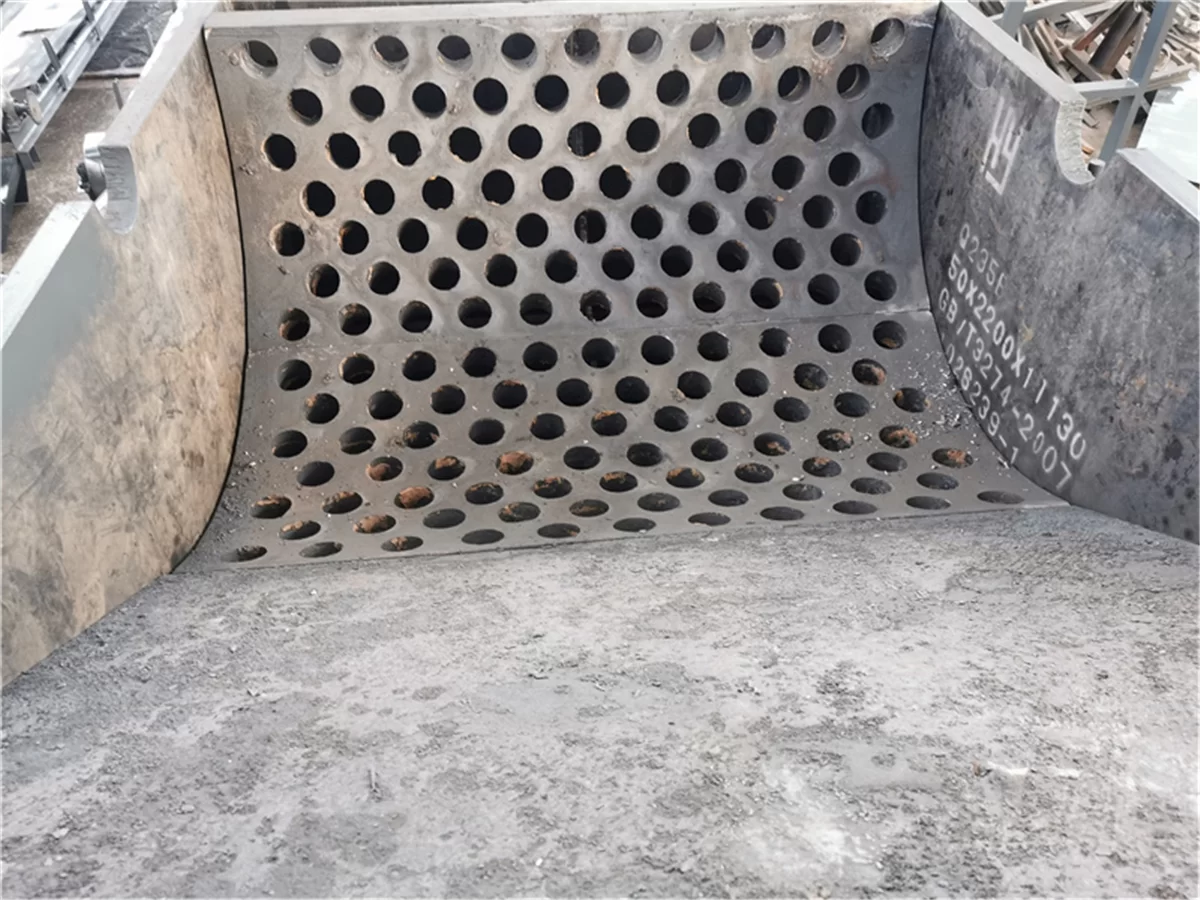

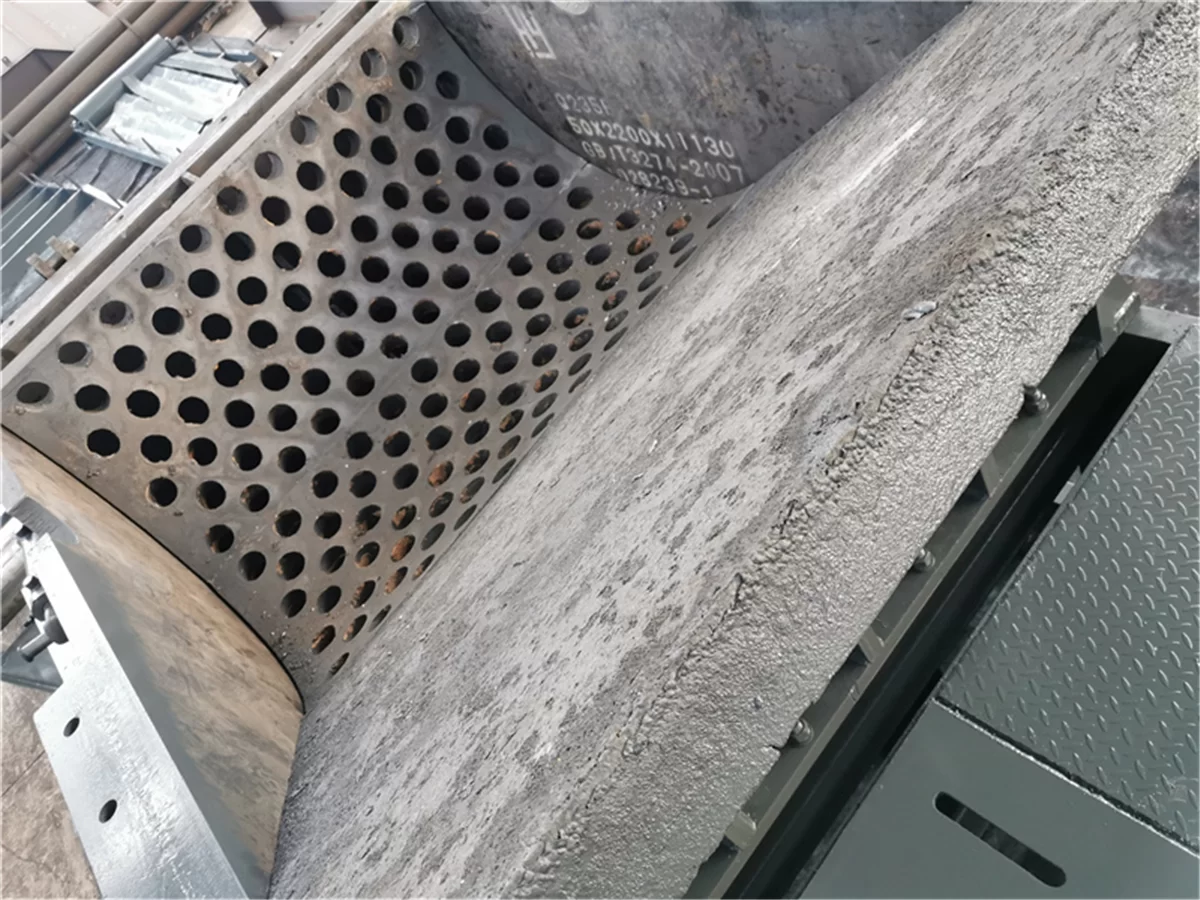

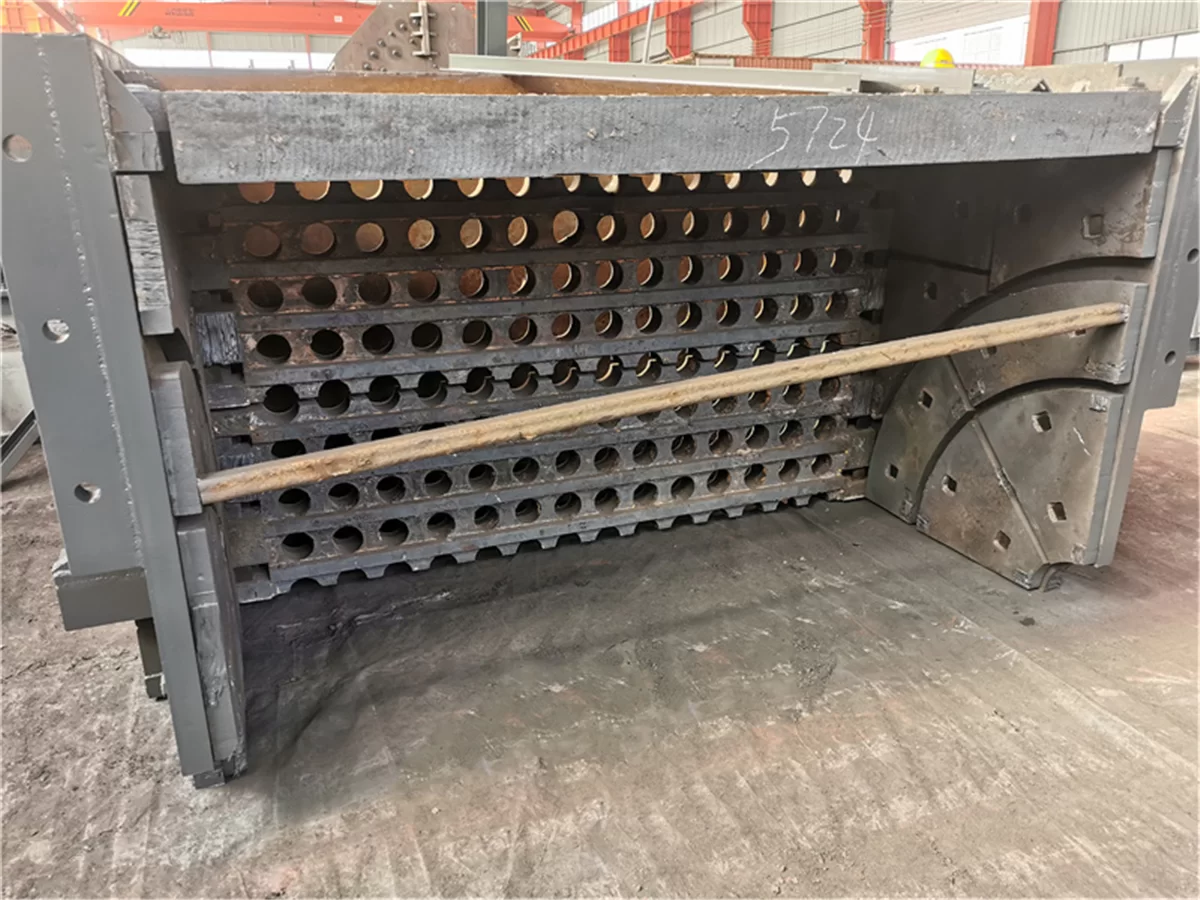

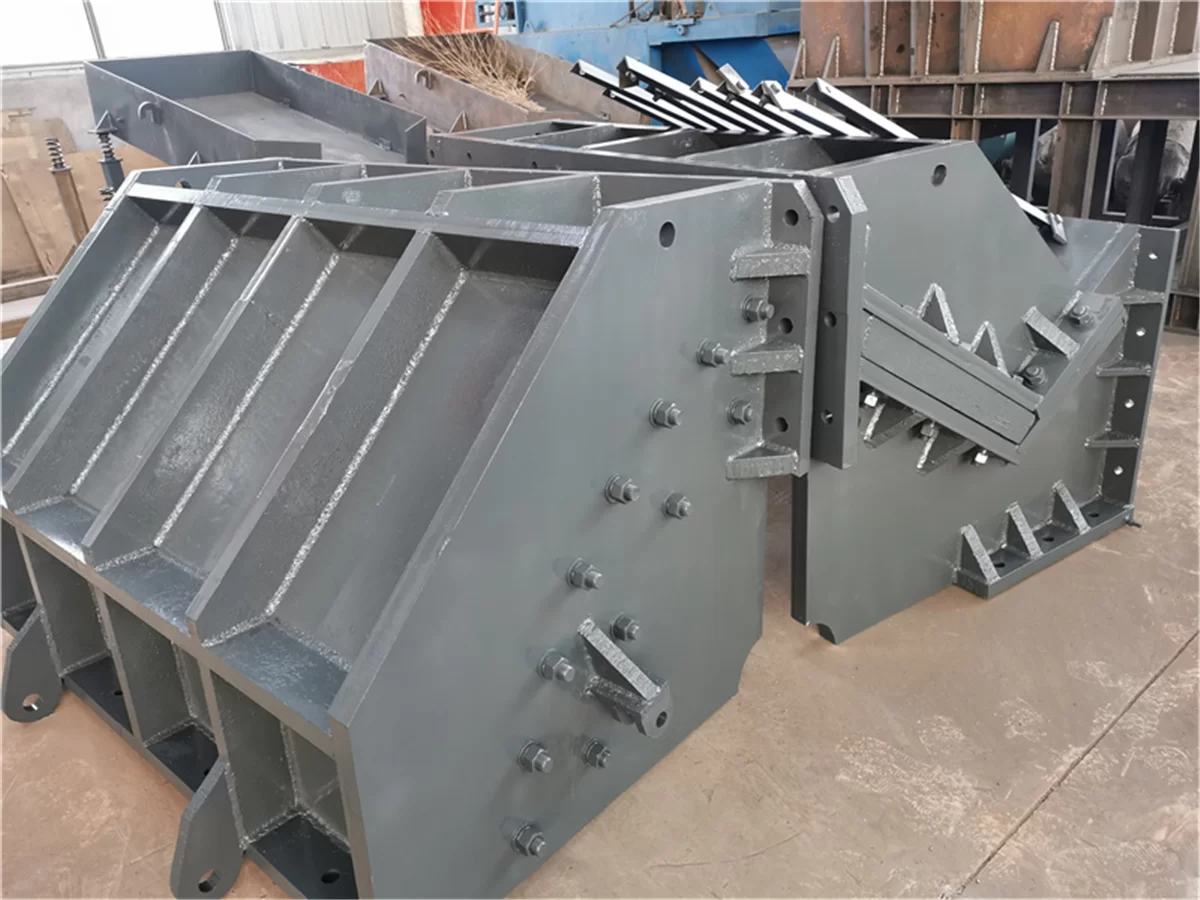

Factory photos of the scrap steel crusher liner and crushing chamber structure, showing wear-resistant parts, chamber design and manufacturing details of
A scrap steel crusher is designed to process waste steel, scrap metal, light metal materials and recycled steel products. For customers who want to understand the real quality of the machine, the internal structure is very important. In this article, we share factory photos of the crusher liner and crushing chamber structure to help customers see more details before choosing scrap metal crushing equipment.
The crushing chamber is one of the key working areas of a scrap steel crusher. When scrap metal enters the machine, the material is impacted, squeezed and crushed inside the chamber. A strong chamber structure helps the machine handle high-impact metal materials and maintain stable operation during continuous production.
Wear-Resistant Liner Structure
The liner plate is an important wear-resistant part inside the metal crusher. It protects the inner wall of the crushing chamber and helps improve the service life of the machine body. During operation, scrap steel and metal materials repeatedly impact the liner, so the liner structure and material quality directly affect equipment durability.
A good crusher liner should have strong wear resistance, stable installation and convenient replacement. For scrap steel recycling plants, easy maintenance is also important because it can reduce downtime and improve production efficiency.
Crushing Chamber Design
The crushing chamber of the scrap steel crusher is designed to provide enough working space for material impact and crushing. The chamber structure works together with the rotor, hammer and liner plate to complete the metal crushing process.
A reasonable crushing chamber design can help improve crushing efficiency, reduce material blockage and make the final output more stable. For different materials, such as scrap steel, metal shells, steel plates, waste iron and light metal waste, the chamber structure should be strong enough for long-term operation.
Why Internal Structure Photos Matter
Many customers want to see real factory photos before purchasing a scrap metal crusher. Compared with only checking the outside appearance of the machine, internal structure photos can show more useful details, such as liner plate design, welding quality, steel plate thickness, chamber space and wear-resistant protection.
These photos help buyers better understand how the machine is built and whether the manufacturer pays attention to important details. For industrial recycling equipment, real structure photos are also helpful for building customer trust.
Application of Scrap Steel Crusher
Scrap steel crushers are widely used in metal recycling and waste metal processing industries. The machine can process many types of materials, including:
-
Scrap steel
-
Waste iron
-
Metal shells
-
Steel plates
-
Light metal waste
-
Recycled metal materials
With conveyors, magnetic separators and dust removal systems, the scrap steel crusher can be used as part of a complete scrap metal crushing production line.
Choose a Reliable Scrap Steel Crusher Manufacturer
When choosing a scrap steel crusher manufacturer, customers should not only focus on price. Machine structure, liner quality, crushing chamber design, rotor strength and after-sales service are also important factors.
Our factory provides scrap metal crushing equipment and customized recycling solutions according to different materials and production requirements. If you need more photos, videos, technical parameters or a complete production line solution, please contact us for more details.
