Project Overview
Project Summary
Haoxing Machinery shares factory workshop photos of the HX-1200 twin shaft shredder cutter chamber, blade shafts and assembly process. The machine is designed for scrap metal, metal drums, industrial waste and mixed recycling materials.
HX-1200 Twin Shaft Shredder Cutter Chamber Assembly
The HX-1200 twin shaft shredder is a heavy-duty industrial shredding machine used for recycling and waste processing applications. It is designed to tear and reduce bulky materials into smaller pieces before further crushing, sorting or recycling.
The photos show the cutter chamber, blade shafts and assembly process of the HX-1200 twin shaft shredder in Haoxing Machinery factory workshop. The machine is equipped with two main shafts, thick cutter discs, side comb plates, a strong steel chamber and heavy-duty bearing seats. These core parts work together to provide stable shredding performance.
The cutter chamber is one of the most important parts of a twin shaft shredder. From the photos, the chamber body is made with thick steel plates and reinforced welding structure. The side comb plates are installed along the inner wall of the chamber. They help guide materials into the cutting area and prevent large pieces from moving freely inside the machine.

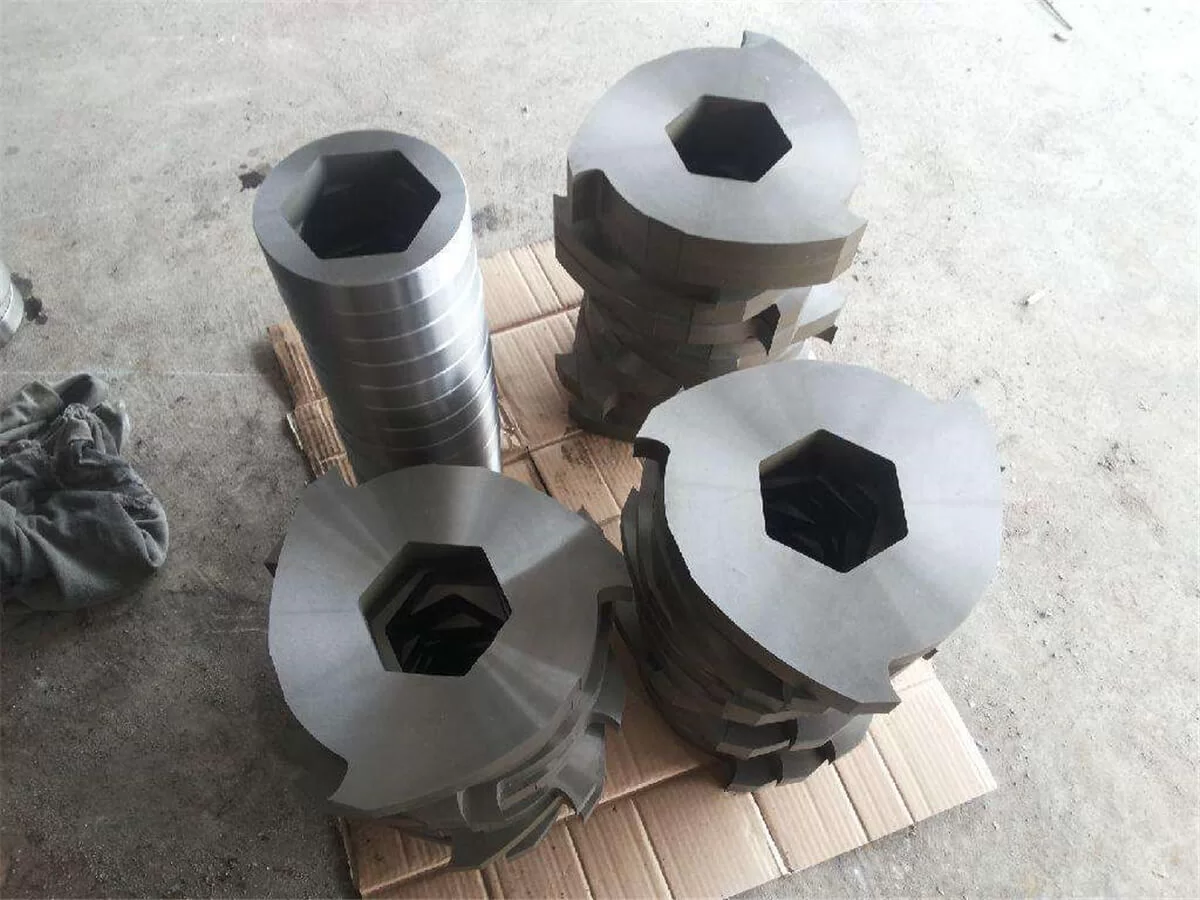

The blade shafts are fitted with multiple cutter discs. During operation, the two shafts rotate at low speed and high torque. Materials are pulled into the chamber and cut, torn and squeezed by the cutter discs. This working method is suitable for bulky, irregular and difficult-to-feed materials.
The HX-1200 twin shaft shredder can be used for many recycling materials, such as scrap metal, light steel scrap, metal drums, paint buckets, aluminum profiles, plastic barrels, waste wood, industrial waste and mixed recycling materials. In scrap metal recycling projects, the shredder is often used before a scrap metal crusher to reduce material size and make downstream crushing more stable.
The assembly photos also show the front shaft ends and bearing positions. Heavy-duty bearing seats help support the blade shafts during continuous operation. Proper shaft installation and cutter alignment are important for stable shredding performance, lower vibration and longer service life.
In a complete recycling line, the HX-1200 twin shaft shredder can work together with feeding conveyor, scrap metal crusher, magnetic separator, dust collector and output conveyor. The shredder first tears large materials into smaller pieces, and then the downstream crusher and sorting equipment continue the recycling process.
Haoxing Machinery can provide suitable twin shaft shredder configurations according to the customer's material type, feeding size, required output size and production capacity. The cutter thickness, blade material, shaft structure, motor power and chamber size can be selected according to different recycling applications.
The price of the HX-1200 twin shaft shredder depends on machine configuration, cutter design, motor power, reducer model, chamber size and production capacity. If the customer needs a complete recycling system, the project can also include conveyor, crusher, separator, dust collector and electric control system.
Haoxing Machinery focuses on the design and manufacturing of twin shaft shredders, metal crushers and complete recycling production lines. If you need a twin shaft shredder for scrap metal, metal drums, industrial waste or mixed recycling materials, our engineers can recommend a suitable machine model and processing solution.
