Eddy Current Separator Factory Production Photos

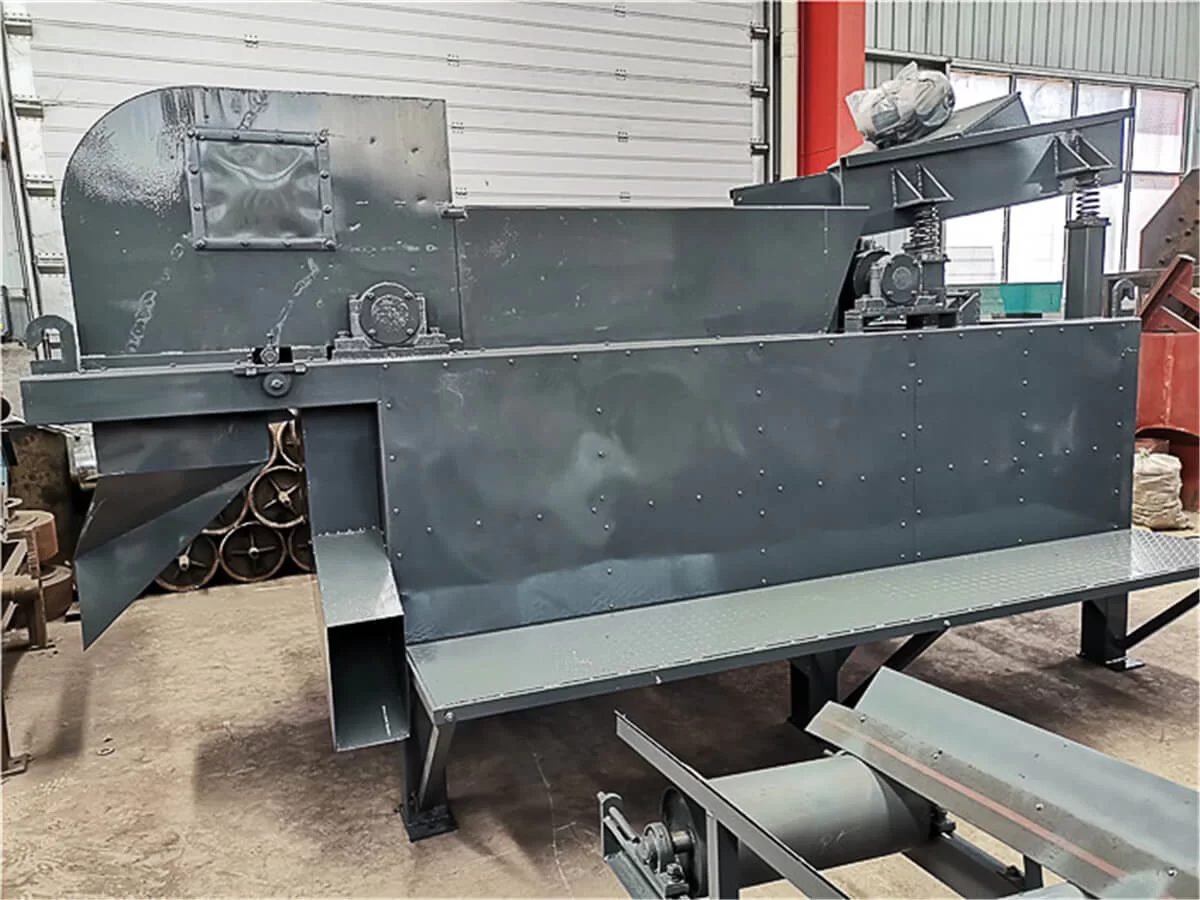

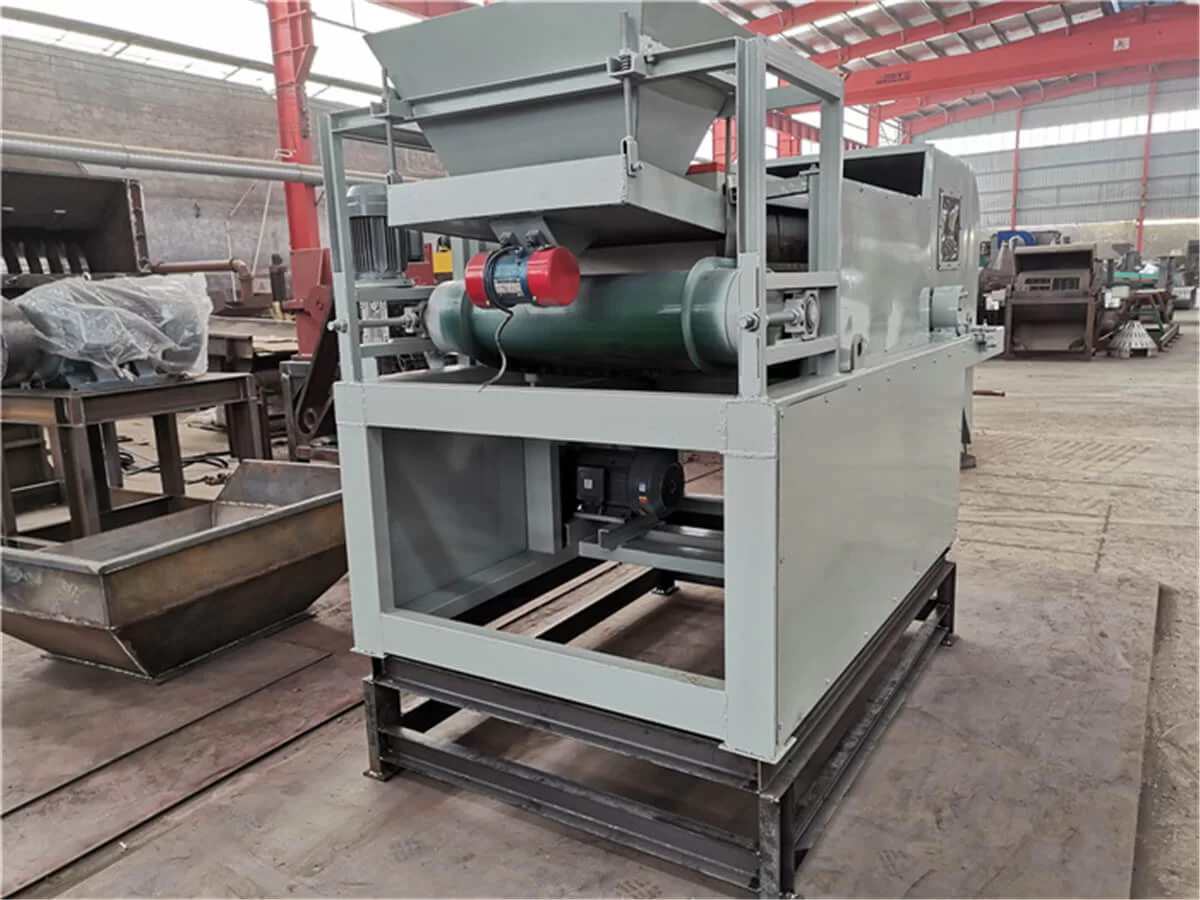

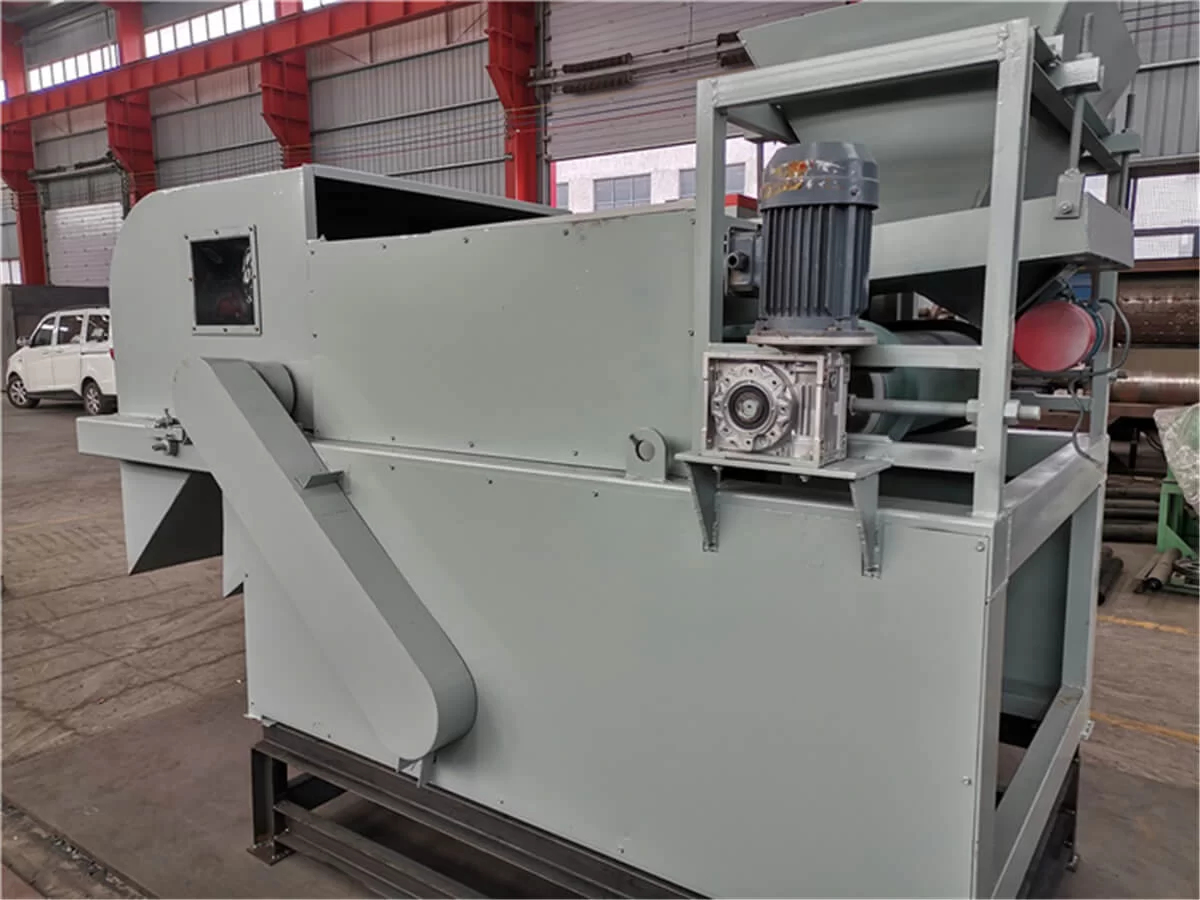

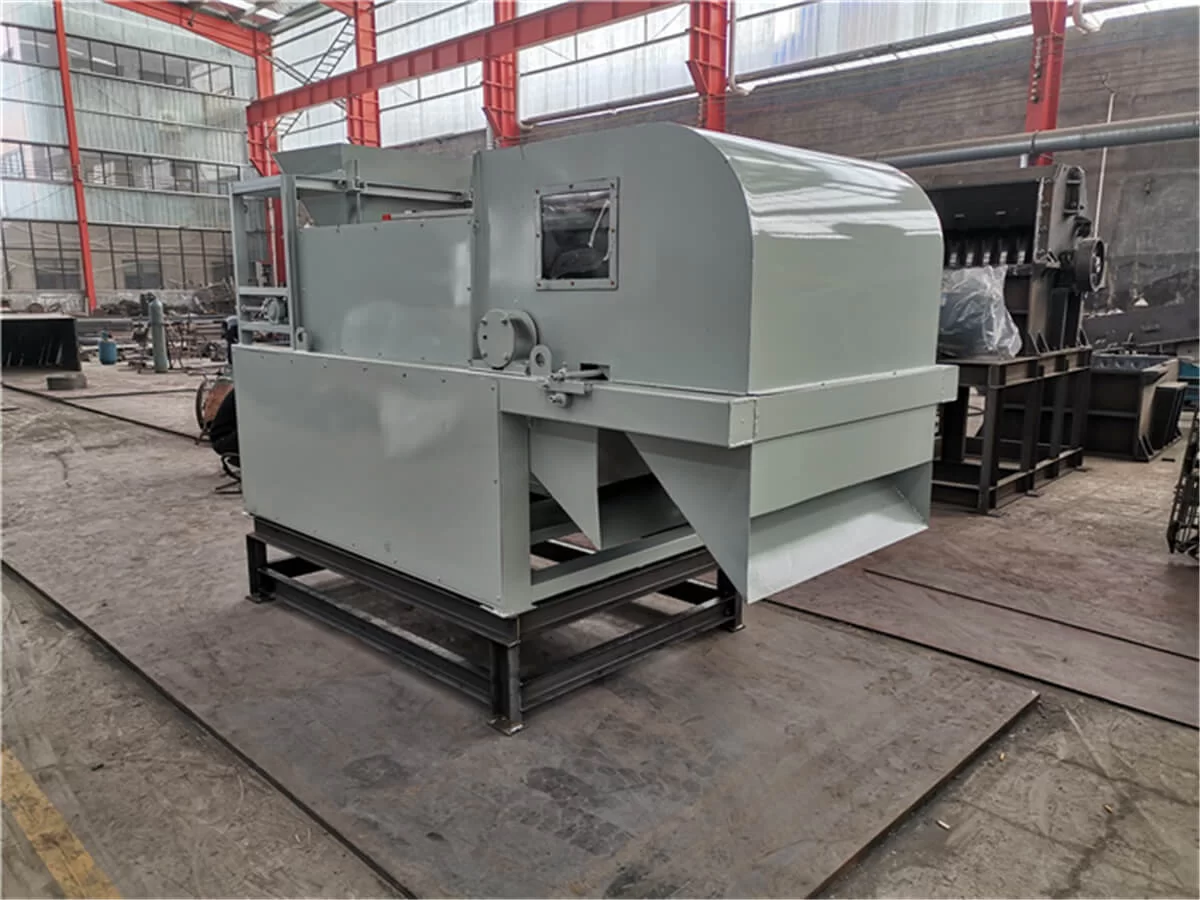

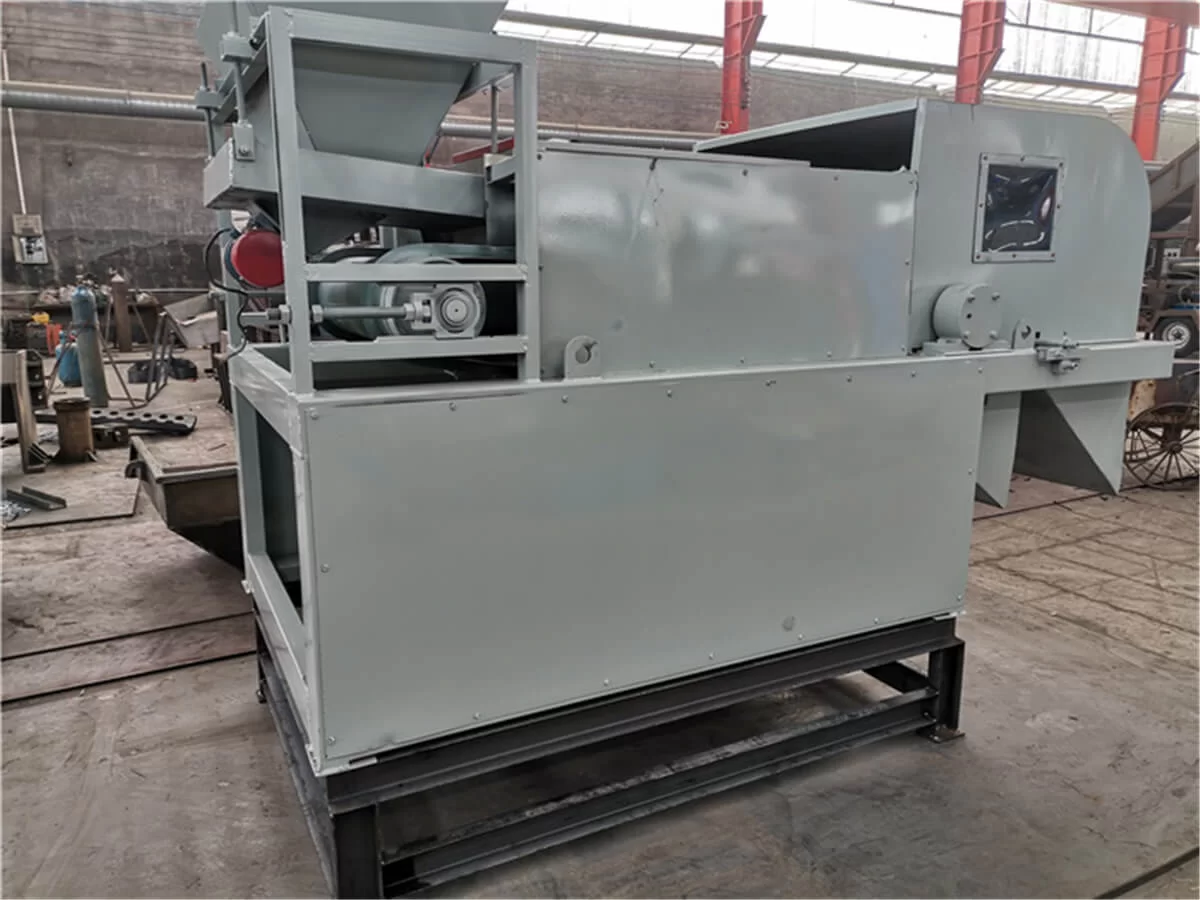

An eddy current separator is an important machine in metal recycling and waste sorting systems. It is mainly used to separate non ferrous metals such as aluminum and copper from mixed waste materials. This group of photos shows the real production site of eddy current separators in the manufacturer’s workshop, including different views of manufacturing, assembly and finished equipment.

Real Workshop Photos Show the Manufacturing Process

During the production of an eddy current separator, the machine frame, conveyor system, separation roller, electric control system and protective structure need to be carefully processed and assembled. Real workshop photos show the complete production process from parts manufacturing to final machine assembly.

Compared with simple product renderings, real factory photos can better show the manufacturer’s processing capability, assembly quality and equipment details. Customers can clearly see the machine structure, material quality, welding, painting, conveyor belt design, separation area and overall manufacturing level.

Used for Non Ferrous Metal Separation

Eddy current separators are widely used in scrap metal recycling, shredded scrap steel sorting, municipal solid waste treatment, electronic waste recycling, aluminum plastic separation, waste appliance recycling and industrial waste processing. The machine can separate aluminum, copper and other non ferrous metals from plastics, rubber, wood, glass, fabric and other non metallic materials.

In a scrap metal recycling line, materials may still contain aluminum, copper and other valuable metals after shredding and magnetic separation. An eddy current separator can be used as a downstream sorting machine to improve non ferrous metal recovery and increase the value of the whole recycling line.

Compact Structure for Different Recycling Lines

An eddy current separator usually consists of a conveyor system, high speed magnetic rotor, separation drum, machine frame, protective cover, motor system and electric control cabinet. When materials are fed into the separation area, non ferrous metals generate induced eddy currents under the high speed alternating magnetic field and are thrown forward by repulsive force, achieving effective separation from other materials.

According to different material types and capacity requirements, the eddy current separator can work together with a twin shaft shredder, scrap metal crusher, belt conveyor, magnetic separator, trommel screen, air separator and dust removal system to form a complete recycling and sorting line.

Factory Photos Help Customers Understand Equipment Details

This group of eddy current separator production photos shows the machine appearance, internal structure, workshop environment and assembly details from different angles. Customers can better understand whether the machine has a strong frame structure, reasonable conveyor design, clear separation area and standardized production process.

For customers who plan to purchase metal sorting equipment, real factory photos help build trust and make it easier to evaluate the actual manufacturing strength of the supplier. Whether customers need a single eddy current separator or a complete waste recycling line, factory production photos are useful for showing equipment quality and production capability.

Materials That Can Be Processed

The eddy current separator can be used for sorting many types of mixed waste materials containing non ferrous metals, such as:

• Shredded scrap metal residue

• Aluminum and copper mixed materials

• Used beverage cans and aluminum waste

• Electronic waste

• Waste appliance shredded materials

• Aluminum plastic mixtures

• Municipal solid waste sorting materials

• Industrial solid waste

• Automotive shredder residue

• Metal and non metal mixed waste

Main Advantages

• Suitable for separating aluminum, copper and other non ferrous metals

• Improves non ferrous metal recovery rate

• Suitable for downstream sorting after scrap metal shredding

• Can work with shredders, magnetic separators and conveyors

• Compact structure and stable operation

• Customizable according to material and capacity requirements

• Suitable for recycling companies and solid waste treatment projects

Customized Eddy Current Separation Solutions

Different customers have different material compositions, feeding sizes, processing capacities and sorting requirements. Therefore, the eddy current separator should be properly selected according to the actual project. The manufacturer can provide equipment selection, production line layout, conveyor system configuration and combined magnetic separation and eddy current separation solutions.

If you need to process shredded scrap metal, aluminum and copper mixtures, electronic waste, municipal solid waste or industrial solid waste, an eddy current separator can help improve non ferrous metal recovery value and optimize the performance of the whole recycling line.
