Color Steel Tile Shredder

Introduction to the Main Structure of Color Steel Tile Shredder

Haoxing Machinery's Color Steel Tile Shredder is a heavy-duty dual-shaft shear shredder specifically designed for processing large, light-gauge ferrous scrap. Operating on the principle of intermeshing blade shearing, tearing, and extrusion, the machine efficiently reduces bulky materials such as color steel tiles, waste oil drums, discarded bicycle frames, and sheet metal scrap into uniform strips or chunks. The reduced material occupies less space, facilitating easier transport and storage, and is ready for direct steelmaking or further sorting. The complete system comprises a feeding conveyor, shredding unit, discharge conveyor, sorting system, dust collection system, and electrical control cabinet, enabling fully automated continuous production.

Display of Main Machine and Supporting Equipment Production Line for Color Steel Tile Shredder

HXSS1200 Color Steel Tile Shredder and Production Line Operation Video：

HXSS1200 Color Steel Tile Shredder Shipping Video：

HXSS2000 Color Steel Sheet Shredder Front, Side, and Elevation Structure Diagram

The Color Steel Tile Shredder employs a dual-shaft shear shredding mechanism:

1. Feeding: Bulky scrap is loaded into the spacious feed hopper via feeding conveyor or manual input. The oversized hopper accepts large items without restriction, allowing single-pass shredding.

2. Shear Shredding: Inside the chamber, two parallel shafts driven by gear motors rotate in opposite directions. High-alloy intermeshing blades mounted on the shafts apply intense shear, tear, and compressive forces, progressively breaking down light-gauge scrap into smaller strips or pieces.

3. Discharge & Sorting: Properly sized fragments fall through the cutter clearance onto a discharge conveyor. Optional magnetic separators can be integrated to remove ferrous metals from contaminants, enhancing product purity.

4. Dust Collection: An integrated dust collection system captures any minimal particulate generated during shredding, ensuring a clean, environmentally friendly operation.

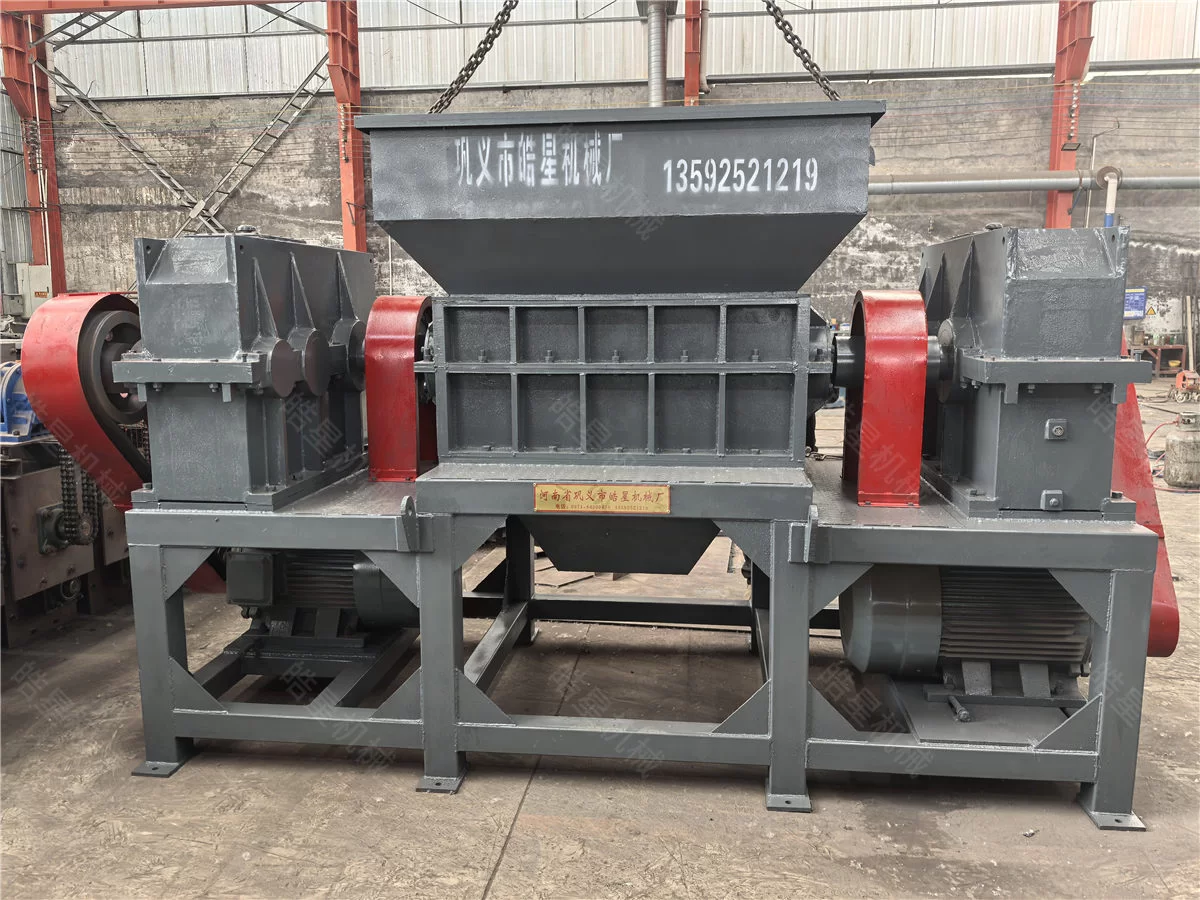

HXSS1200 Color Steel Tile Shredder Shredding Chamber Structure

1. High-Alloy Intermeshing Blades for Superior Shredding
   Blades are precision-made from high-alloy steel in an intermeshing configuration, delivering excellent cutting performance on hard, thin materials like color steel sheets and drums while offering extended wear life.

2. Energy Efficient & Low Operating Cost
   Driven by gear motors, the shredder consumes approximately 20% less electricity than comparable metal crushers. Low energy consumption and high efficiency translate to significantly reduced long-term operating costs.

3. Smooth Operation & Low Noise
   The machine starts smoothly and operates with minimal noise. A robust foundation design further dampens vibration and sound, improving the working environment.

4. Reinforced Housing for Extreme Durability
   The shredder housing features dense stiffener plate reinforcement, providing exceptional structural rigidity and impact resistance for stable, safe operation under continuous heavy loads.

5. Optional Conveyor Feeding for Enhanced Productivity
   The system supports integration with a conveyor feeding device, enabling automatic, continuous material intake, reducing manual labor, and significantly boosting overall line efficiency.

6. Unrestricted Feed Size & High Adaptability
   The generously sized feed opening accepts large items for single-pass shredding without pre-cutting or flattening. Processing capacity ranges from 3 to 10 t/h, making it ideal for high-volume processing of bulky light-gauge scrap.

Parameter description diagram for Color Steel Tile Shredder：

Note: Capacity varies based on material thickness, hardness, and output size requirements. Custom configurations and integrated sorting/dust collection systems are available upon request.

VI. Applications

• Light-gauge scrap processing at metal recycling yards.

• Car body and component shredding at ELV dismantling facilities.

• Bicycle and motorcycle frame shredding at specialized recycling centers.

• Volume reduction of appliance housings at e-waste recycling plants.

• Steel mill feedstock pre-processing.

• Industrial container (oil drum, paint bucket) recycling.
