Project Summary

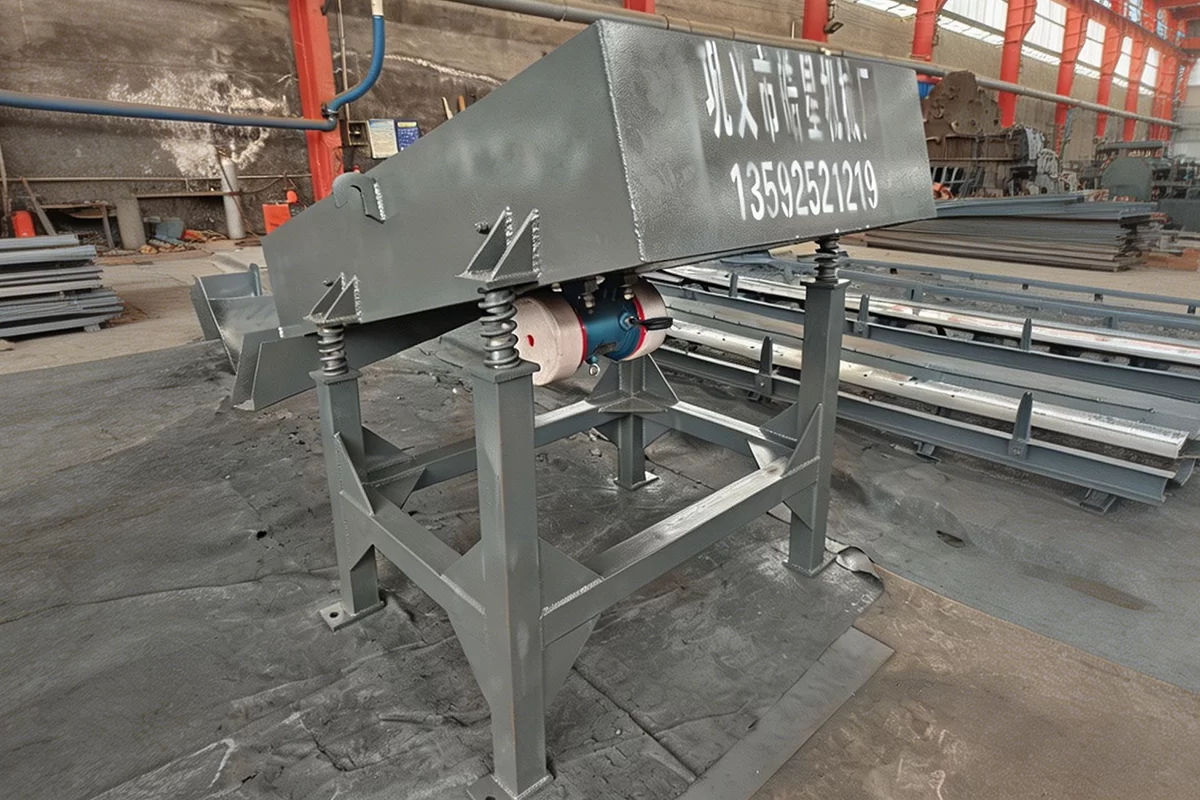

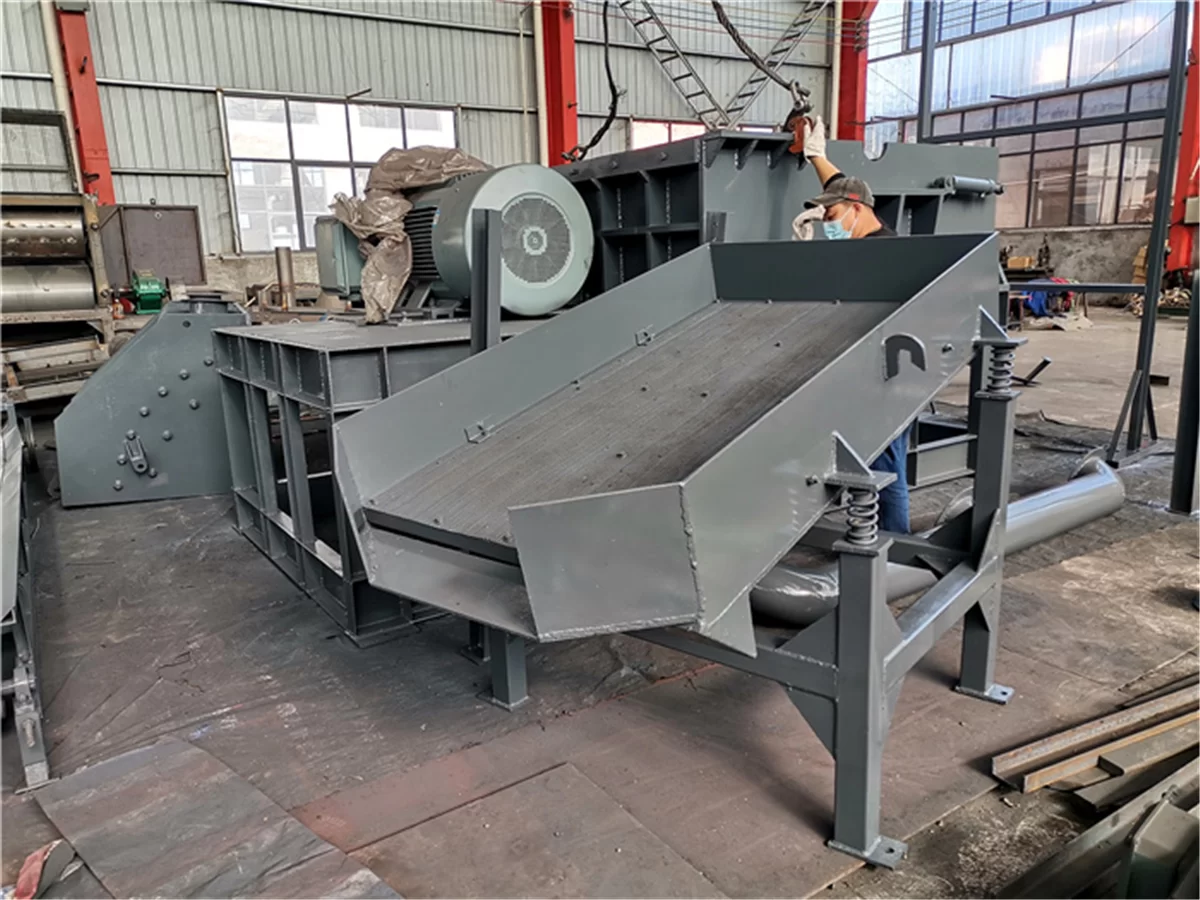

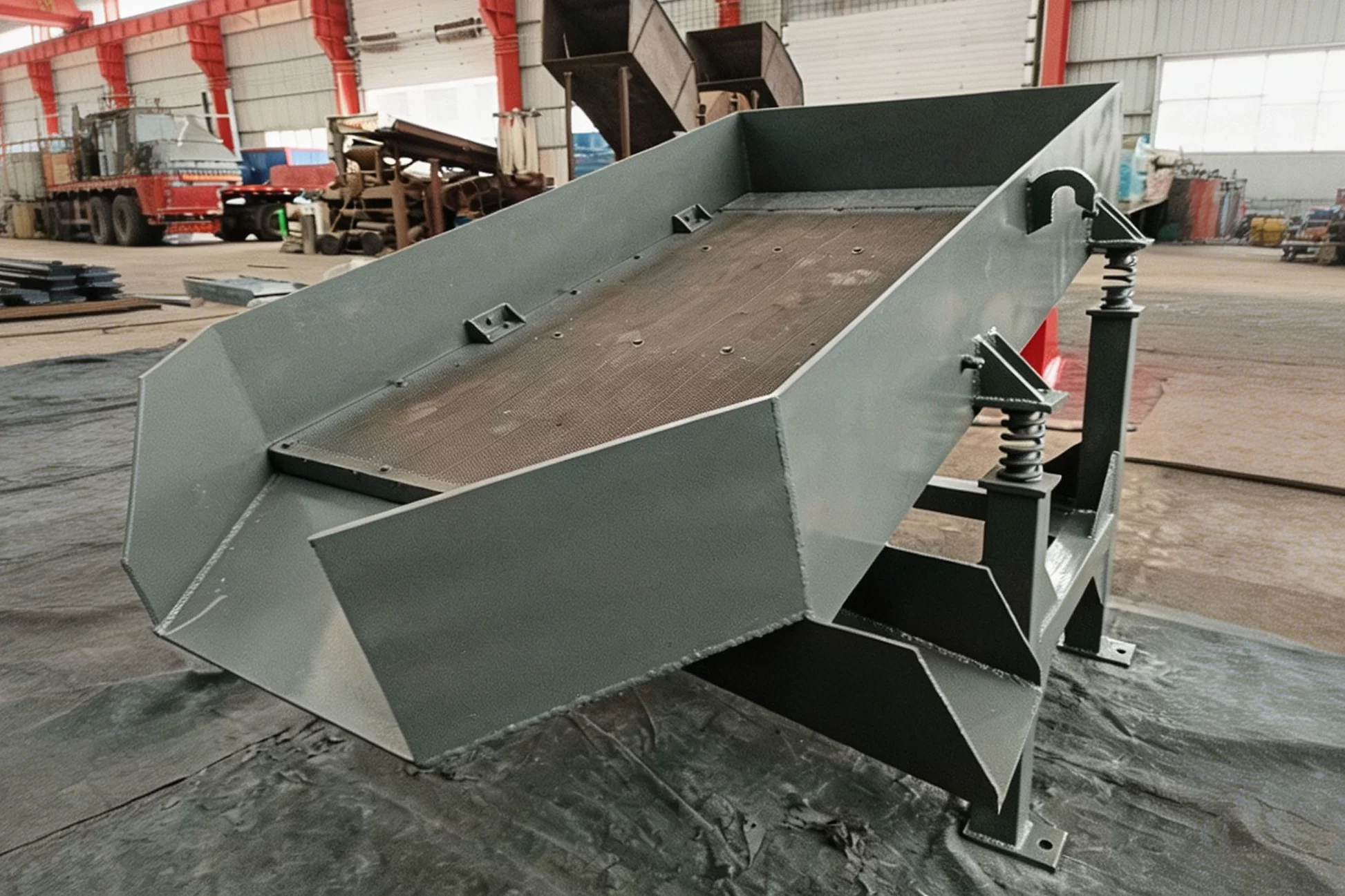

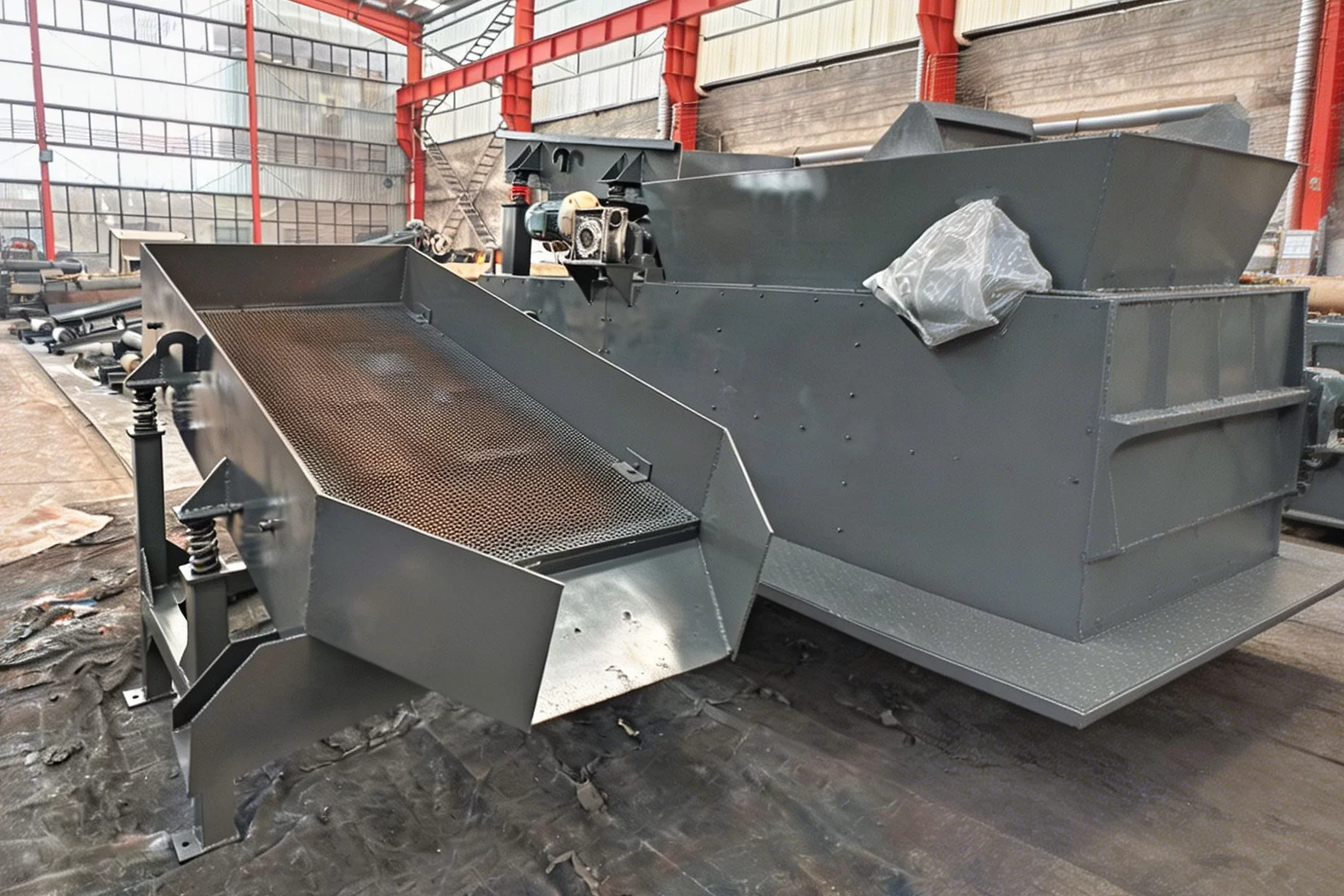

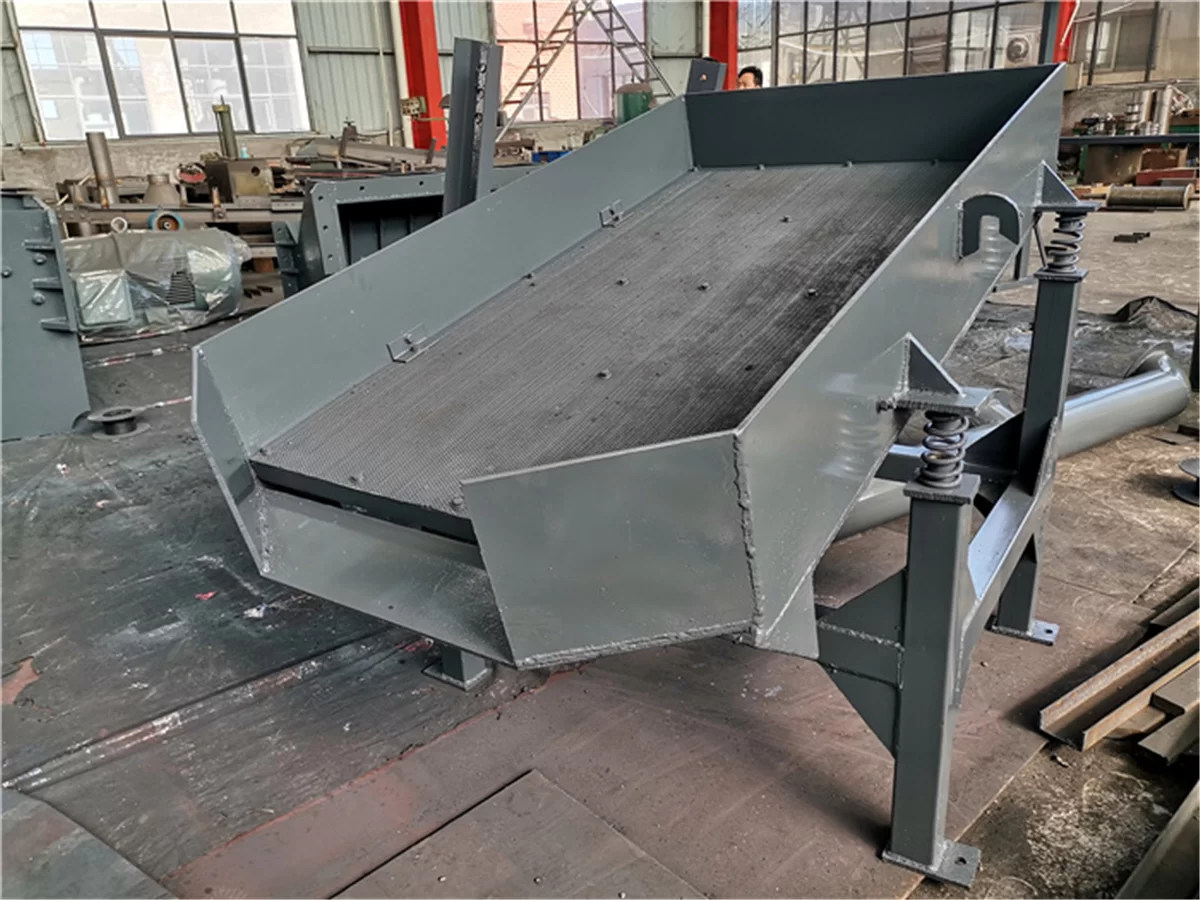

Factory photos of a vibrating screen used in a 1200 scrap steel crushing and sorting line, showing the screen box, mesh surface, spring support and vibration motor for material screening after crushing.
Vibrating Screen for 1200 Scrap Steel Crushing and Sorting Line Factory Photos
These factory photos show a vibrating screen used in a 1200 scrap steel crushing and sorting line. In a scrap metal recycling system, the vibrating screen is an important auxiliary machine used after crushing to separate materials by particle size and improve the efficiency of downstream sorting.
The vibrating screen shown in the photos includes a welded screen box, screen mesh surface, spring support system, vibration motor and steel support frame. It can be used together with a scrap steel crusher, chain conveyor, magnetic separator, eddy current separator and discharge conveyor.
What These Photos Show
The photos mainly show the screen body, mesh surface, spring supports, vibration motor and outlet area. The screen box is built with a welded steel structure to support continuous screening work in scrap metal recycling lines.
The screen mesh surface is used to separate fine materials, small particles and larger pieces after crushing. According to the customer’s material type and final sorting requirement, the screen mesh size can be customized.
Function in a Scrap Metal Crushing Line
After scrap steel, light metal scrap or mixed metal waste is crushed by the 1200 scrap steel crusher, the output material may contain different particle sizes. The vibrating screen helps classify the crushed material before magnetic separation, eddy current separation or manual sorting.
This screening process can improve material flow, reduce the load on downstream equipment and make the whole recycling line more stable.
Main Structure
1. Screen Box
The screen box is the main working body of the vibrating screen. It holds the screen mesh and guides materials during screening.
2. Screen Mesh Surface
The screen mesh separates crushed materials according to particle size. Different mesh openings can be selected according to the required output size.
3. Spring Support
The spring support system absorbs vibration and helps maintain stable screening movement.
4. Vibration Motor
The vibration motor provides the vibrating force required for material movement and separation.
5. Steel Support Frame
The support frame keeps the vibrating screen stable and provides the installation base for the screening unit.
Suitable Applications
This vibrating screen can be used in:
- 1200 scrap steel crushing lines
- Scrap metal crushing and sorting lines
- Light metal scrap recycling lines
- Paint bucket crushing lines
- Car body panel recycling lines
- Mixed metal waste sorting systems
Related Equipment
A complete scrap metal crushing and sorting line can include a scrap steel crusher, chain plate conveyor, vibrating screen, magnetic separator, eddy current separator, dust collection system and discharge conveyor.
Contact Us
If you need a vibrating screen, scrap steel crusher or complete scrap metal crushing and sorting line, please send us your material photos, feeding size, required capacity and final sorting requirement. Our engineers can recommend a suitable equipment configuration for your recycling project.
