Project Overview
Factory photos of eddy current separator production and semi finished machines, showing the frame structure, drum parts, assembly process and manufacturing details of non ferrous metal separation equipment.
An eddy current separator is widely used in metal recycling lines to separate non ferrous metals from mixed materials. It is commonly used for aluminum, copper and other non ferrous metal recovery after crushing, screening and magnetic separation.
In this article, we share real factory workshop photos of eddy current separator production and semi finished machines. These photos help customers better understand the manufacturing process, machine structure and equipment quality before choosing a recycling machine supplier.
Factory Production Site of Eddy Current Separator
The production site shows different parts of the eddy current separator being processed and assembled in the workshop. From machine frame welding to component installation, each step affects the stability and long term operation of the equipment.
A reliable eddy current separator requires a strong frame structure, accurate assembly and stable running parts. The workshop photos allow customers to see the real production process instead of only viewing finished product pictures.

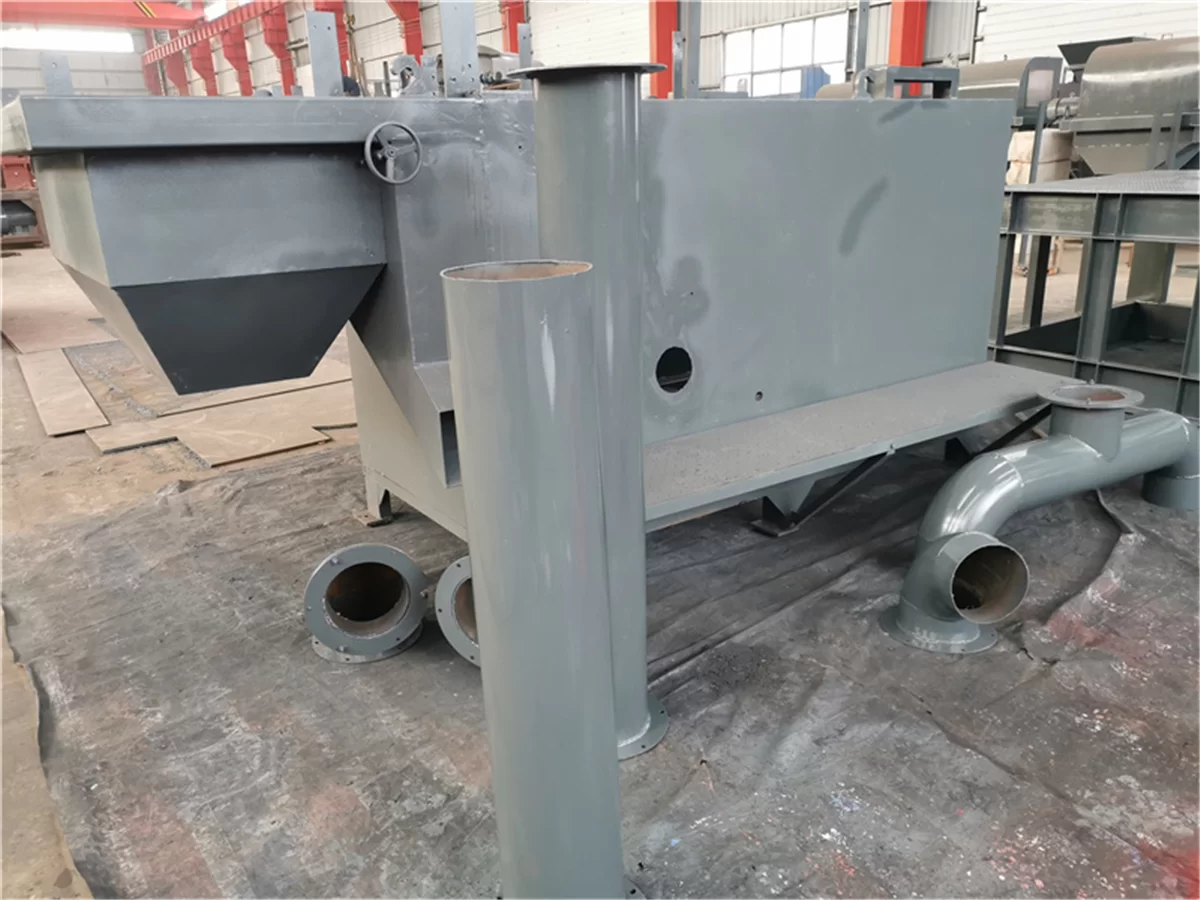

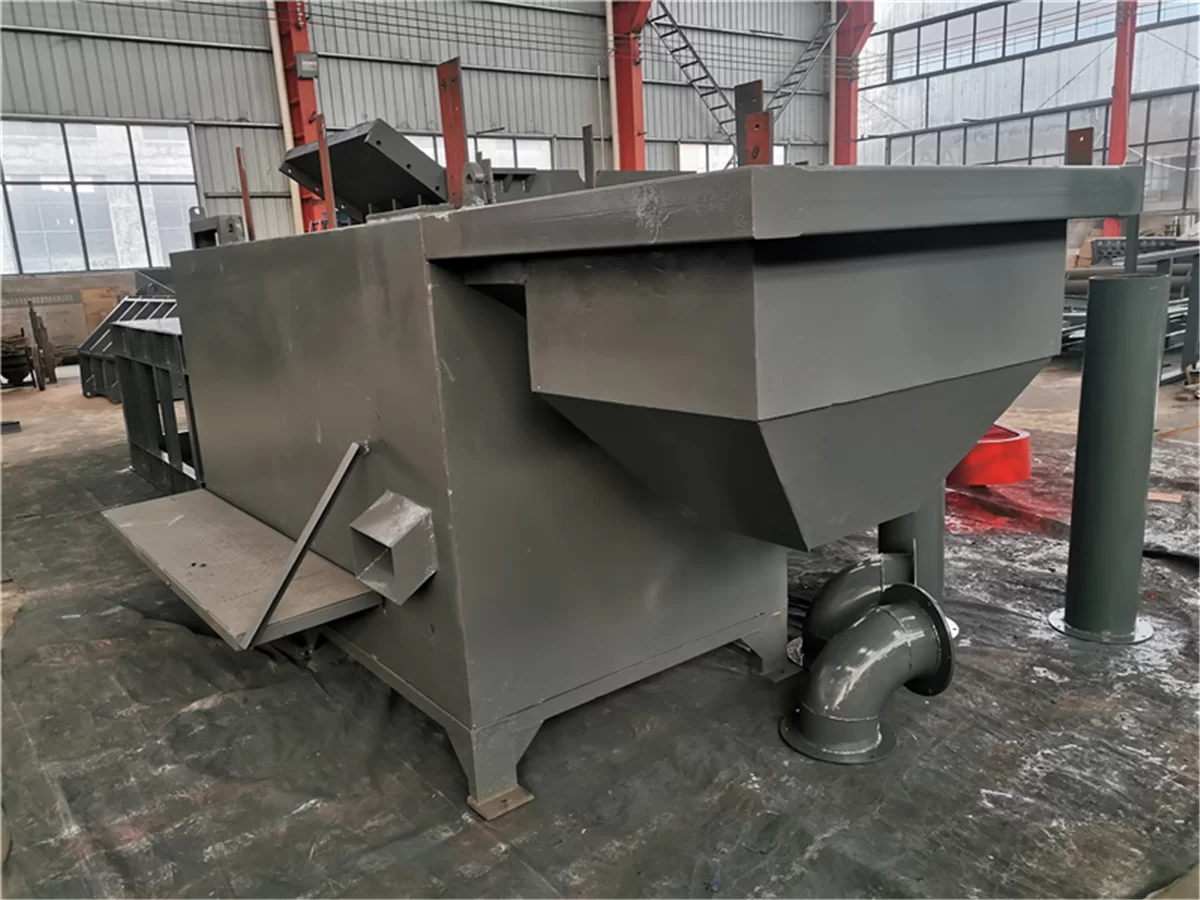

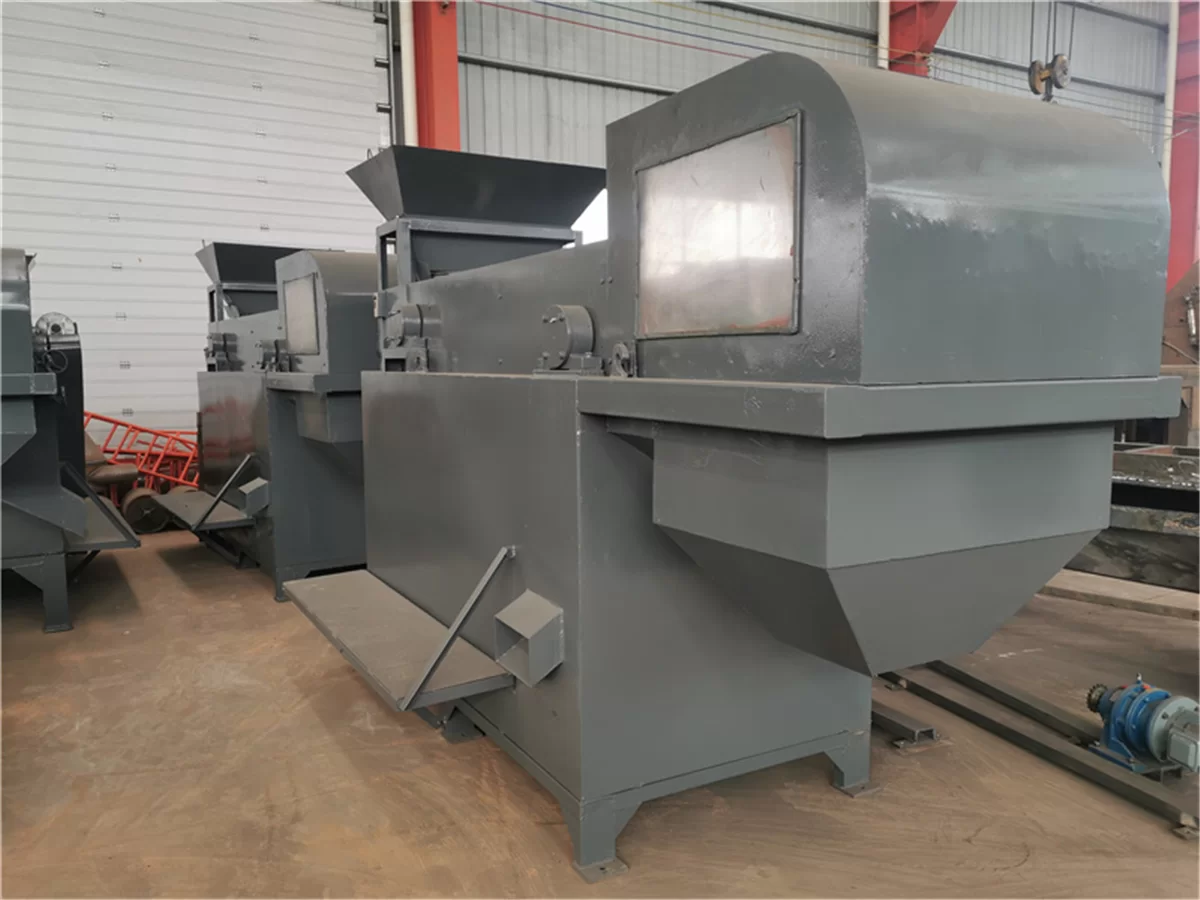

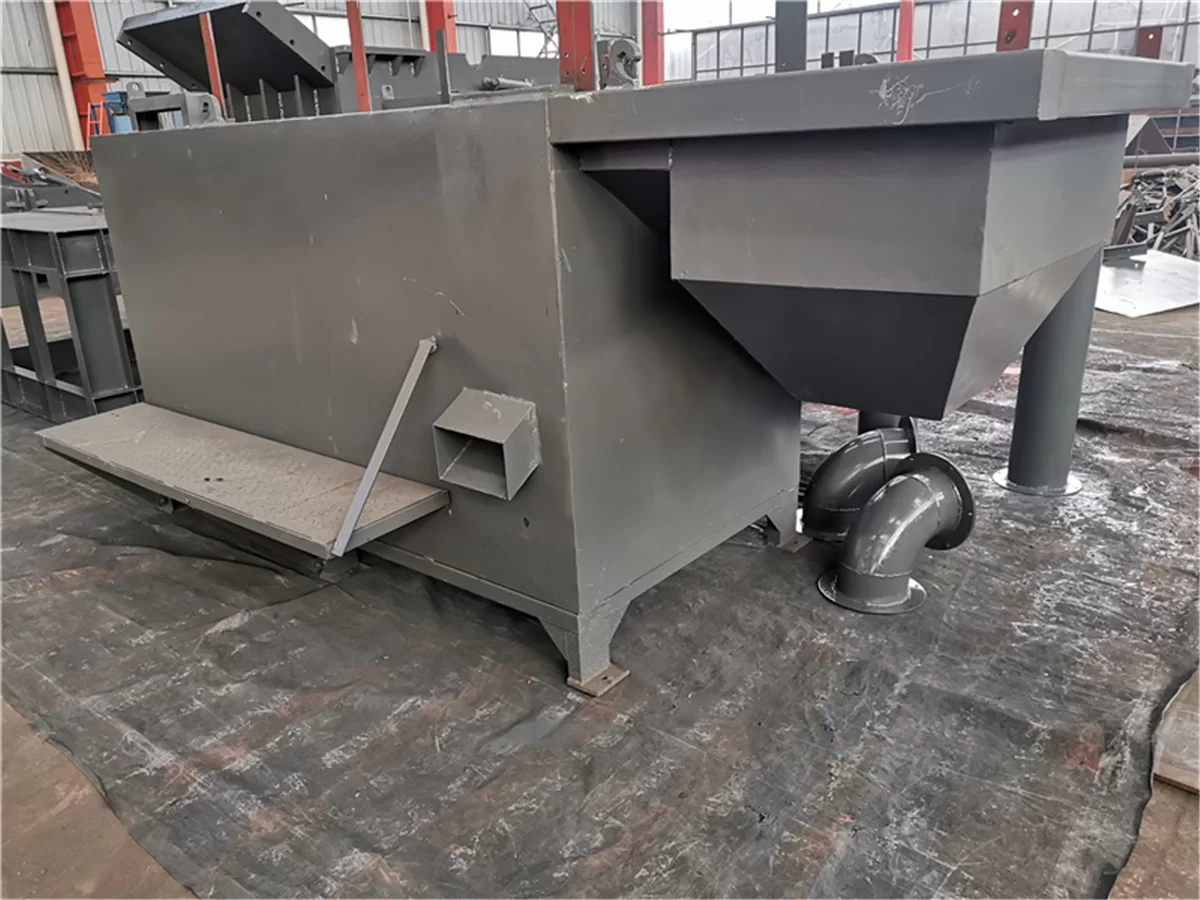

Semi Finished Machine Structure
Semi finished eddy current separators can show more internal structure details. Before final painting and delivery, customers can clearly see the machine frame, support structure, belt system, drum position and installation space.
These semi finished photos are useful because they show how the machine is built from the inside. For industrial recycling equipment, structure quality is very important. A strong machine body can help the separator work steadily in continuous production.
Key Parts of the Eddy Current Separator
The eddy current separator is usually composed of several main parts, including the machine frame, magnetic rotor, belt conveyor, driving system, adjustment device and electrical control system.
The magnetic rotor is one of the key parts of the machine. When the equipment is running, it creates a high speed changing magnetic field to separate non ferrous metals from mixed materials. The belt conveyor carries materials through the separation area, and different materials are separated according to their physical properties.
Application in Recycling Lines
Eddy current separators are often used in scrap metal recycling, waste aluminum recycling, aluminum plastic separation, crushed metal sorting and solid waste recycling projects. They can be matched with crushers, shredders, magnetic separators, conveyors and dust removal systems to form a complete recycling production line.
Common materials include:
Crushed aluminum
Copper pieces
Aluminum cans
Waste wires
Mixed metal waste
Non ferrous metal materials
With proper production line design, the eddy current separator can help improve metal recovery rate and reduce manual sorting work.
Why Factory Photos Are Important
Many customers want to see real workshop photos before purchasing recycling equipment. Compared with simple product descriptions, factory photos can show more direct details, such as welding quality, frame strength, parts installation and production capacity.
Semi finished machine photos are especially helpful because they show the real structure before the equipment is fully covered or painted. This helps customers check whether the manufacturer pays attention to equipment details and production quality.
Choose a Reliable Separator Manufacturer
When choosing an eddy current separator manufacturer, customers should consider machine structure, separation performance, material adaptability, production experience and after sales service. A professional manufacturer can provide suitable machine models and production line solutions according to the material type and output requirement.
Our factory provides eddy current separators and complete recycling solutions for scrap metal and solid waste processing projects. If you need more machine photos, working videos, technical parameters or a customized separation line, please contact us for more information.
