Factory photos of 1600 scrap steel crusher frames and spare parts stock area, showing heavy-duty welded bases, feeding boxes and crusher body structures prepared in the workshop for scrap steel crushing lines.

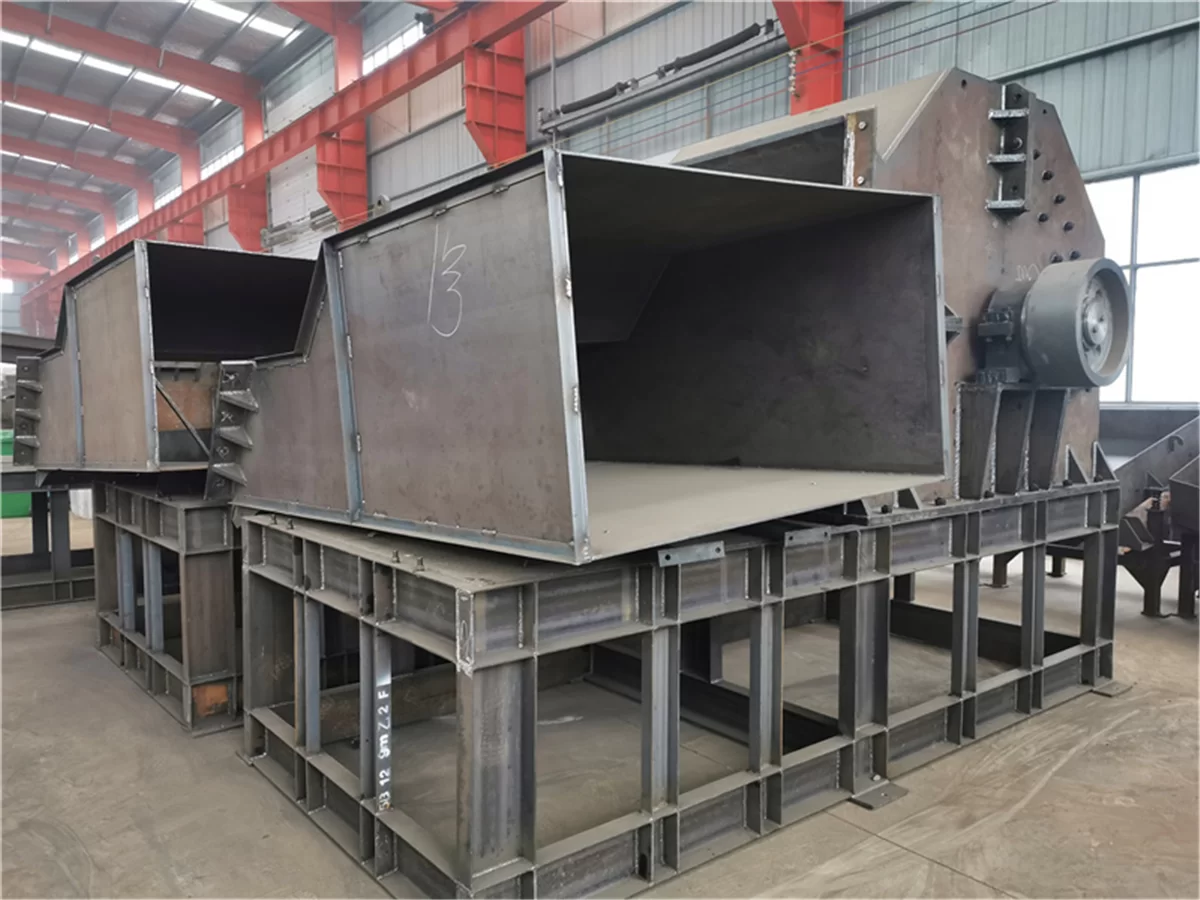

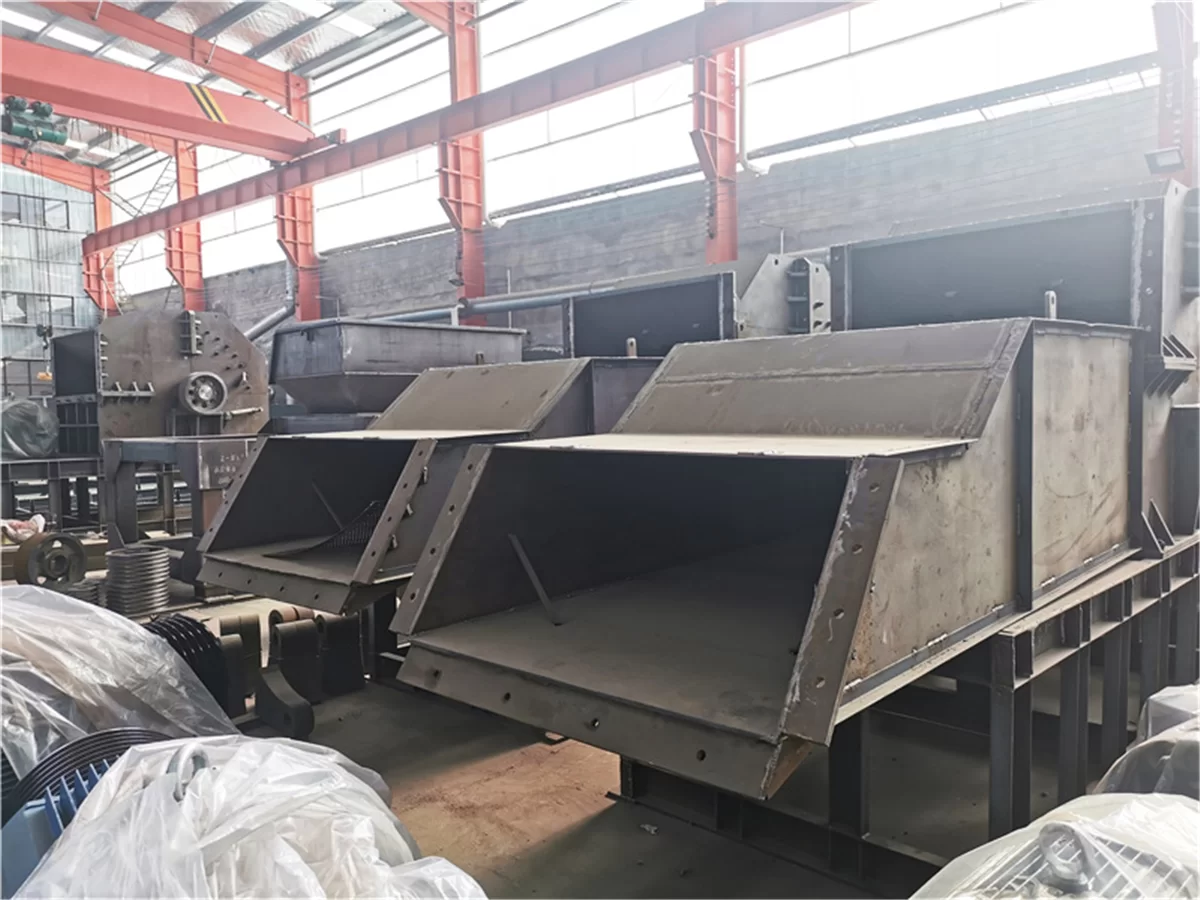

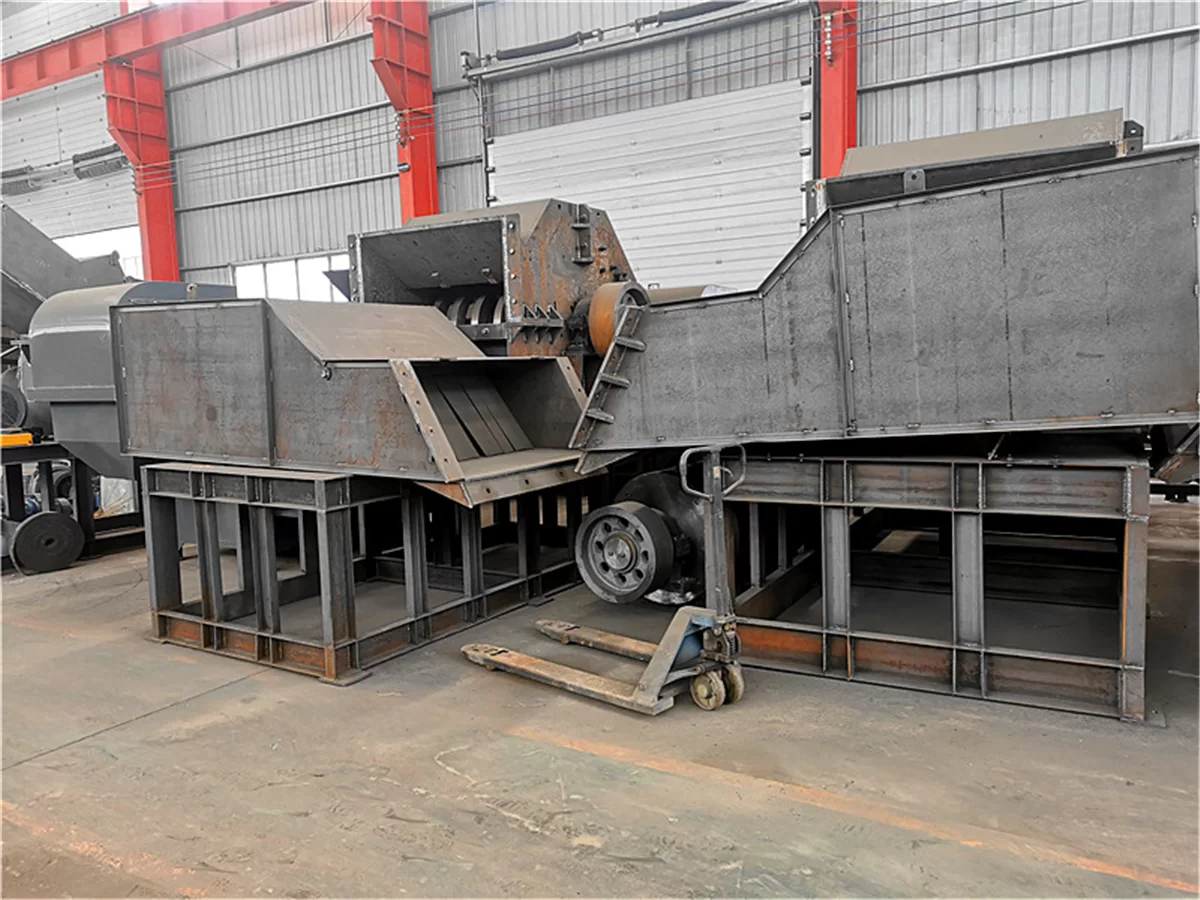

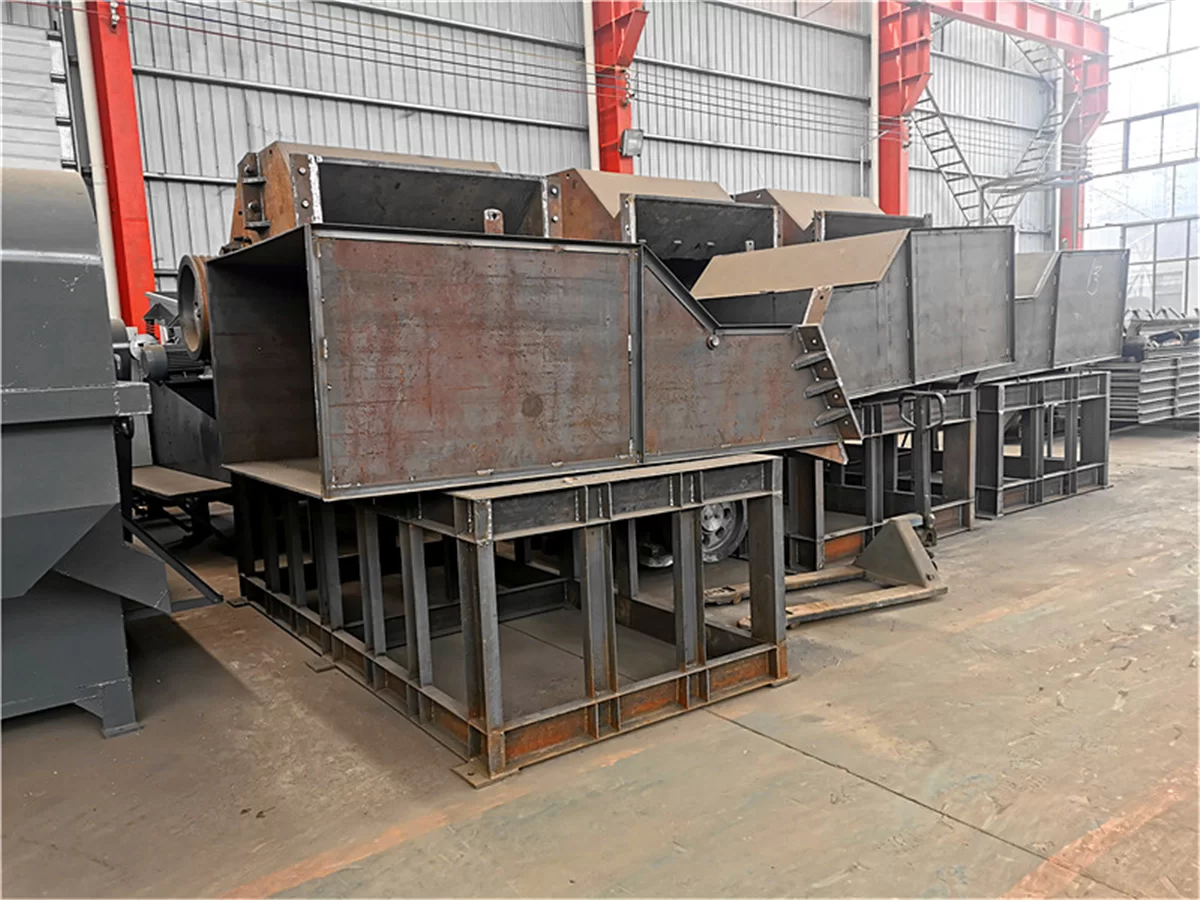

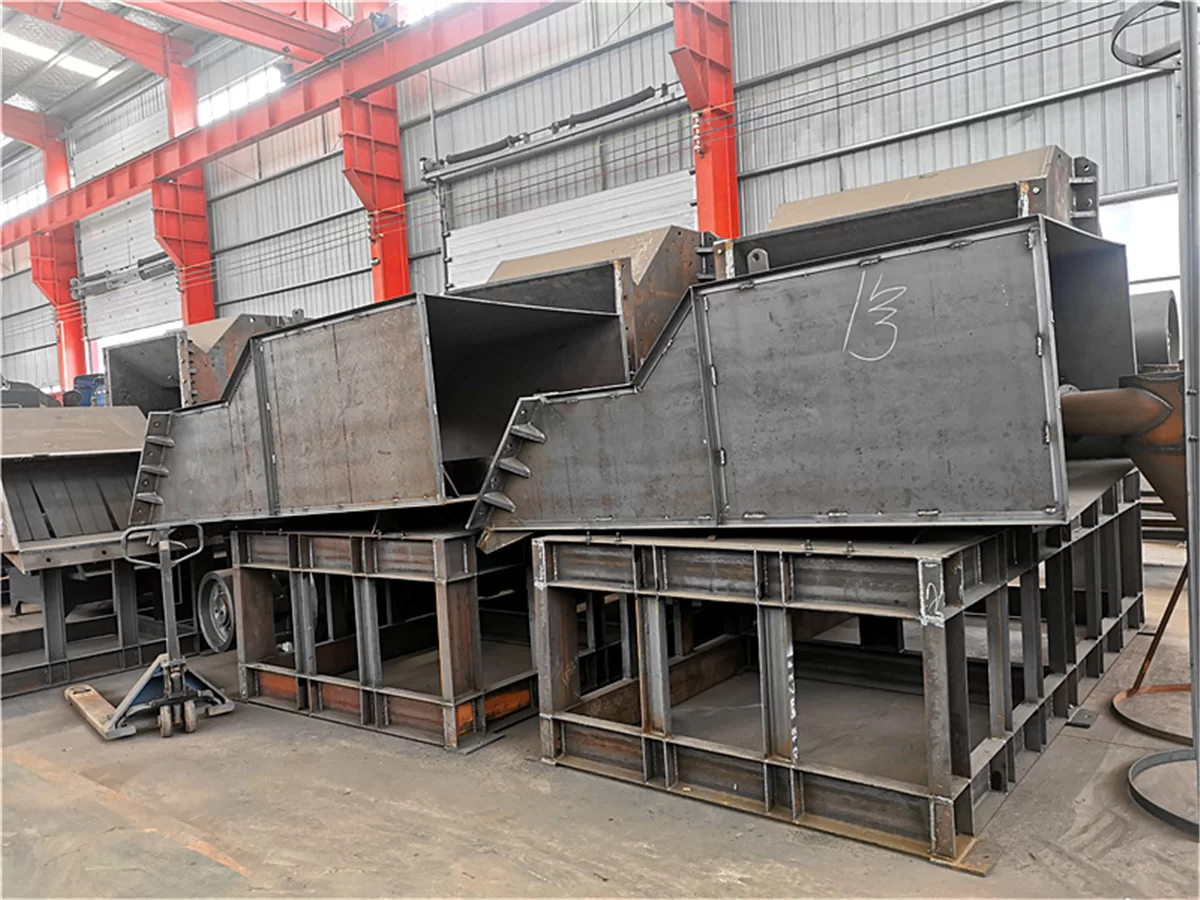

1600 Scrap Steel Crusher Frame and Spare Parts Stock Area Factory Photos
These factory photos show the stock area for 1600 scrap steel crusher frames and structural parts in the Haoxing Machinery workshop. The photos mainly show heavy-duty welded bases, feeding boxes, crusher body frames and semi-finished crusher structures prepared for later assembly.
For scrap steel crushing equipment, the frame and base structure are very important. The machine must handle heavy impact, continuous feeding and strong vibration during operation. A reinforced welded frame helps support the crusher chamber, rotor system, motor, transmission parts and other heavy components.
What These Photos Show
The photos show multiple scrap steel crusher bodies and structural parts arranged in the workshop. These parts include feeding box structures, base frames, side plates, support beams and heavy-duty welded sections. Some parts are still in the semi-finished stage and will be further processed, assembled, painted and tested before delivery.
Heavy-Duty Crusher Frame
The crusher frame is the foundation of the whole machine. A strong frame helps improve equipment stability and reduce vibration during crushing. For a 1600 scrap steel crusher, the frame must be strong enough to support continuous operation with scrap steel, light metal scrap, car body panels, steel sheets and mixed metal waste.
Feeding Box and Crusher Body Structure
The feeding box guides scrap materials into the crushing chamber. A properly designed feeding structure helps improve feeding efficiency and reduce material blockage. The crusher body structure also provides support for the rotor, hammer heads, liner plates and upper cover.
Workshop Stock and Production Preparation
Keeping key crusher frames and structural parts in stock helps shorten production time and improve delivery efficiency. When a customer confirms an order, these prepared parts can be quickly assembled with motors, rotors, hydraulic opening devices, electrical systems and conveyors according to the final configuration.
Suitable Applications
The 1600 scrap steel crusher can be used for:
- Scrap steel recycling
- Light metal scrap crushing
- Car body panel crushing
- Steel sheet processing
- Paint bucket crushing
- Mixed ferrous metal recycling
- Scrap metal crushing and sorting lines
Related Equipment
A complete scrap steel crushing line can include a scrap steel crusher, chain plate conveyor, discharge conveyor, magnetic separator, vibrating screen, eddy current separator and dust collection system. Haoxing Machinery can provide customized solutions according to the customer’s material type, capacity requirement and final output size.
Contact Us
If you need a 1600 scrap steel crusher or a complete scrap metal recycling line, please send us your material photos, feeding size, required capacity and final output requirements. Our engineers can recommend a suitable crusher model and production line configuration.
