Project Overview
Project Summary
Factory photos of the 1600 scrap steel crusher base, upper cover, hydraulic opening device and motor installation area, showing the heavy-duty welded structure and maintenance-friendly design for scrap steel crushing lines.

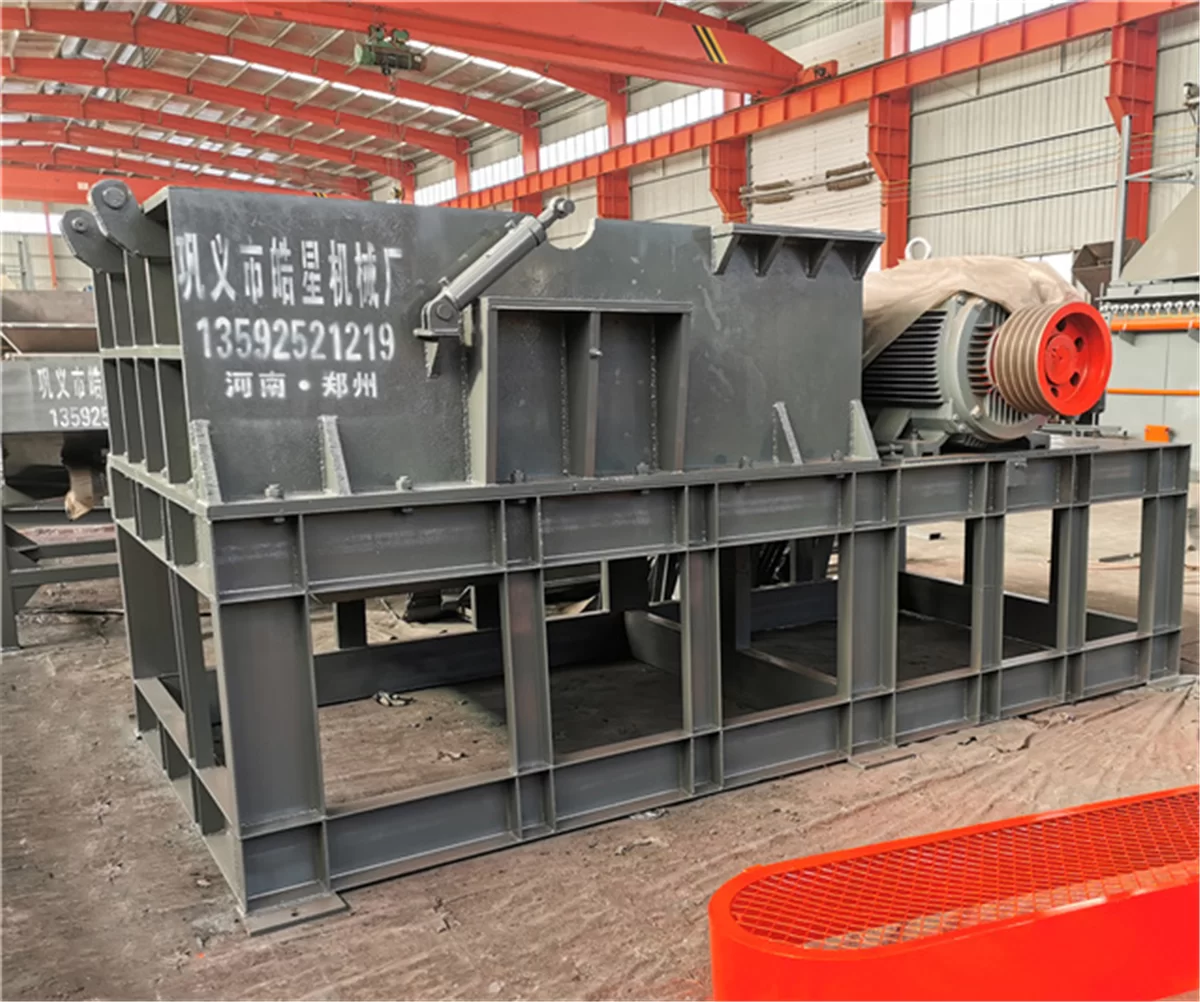

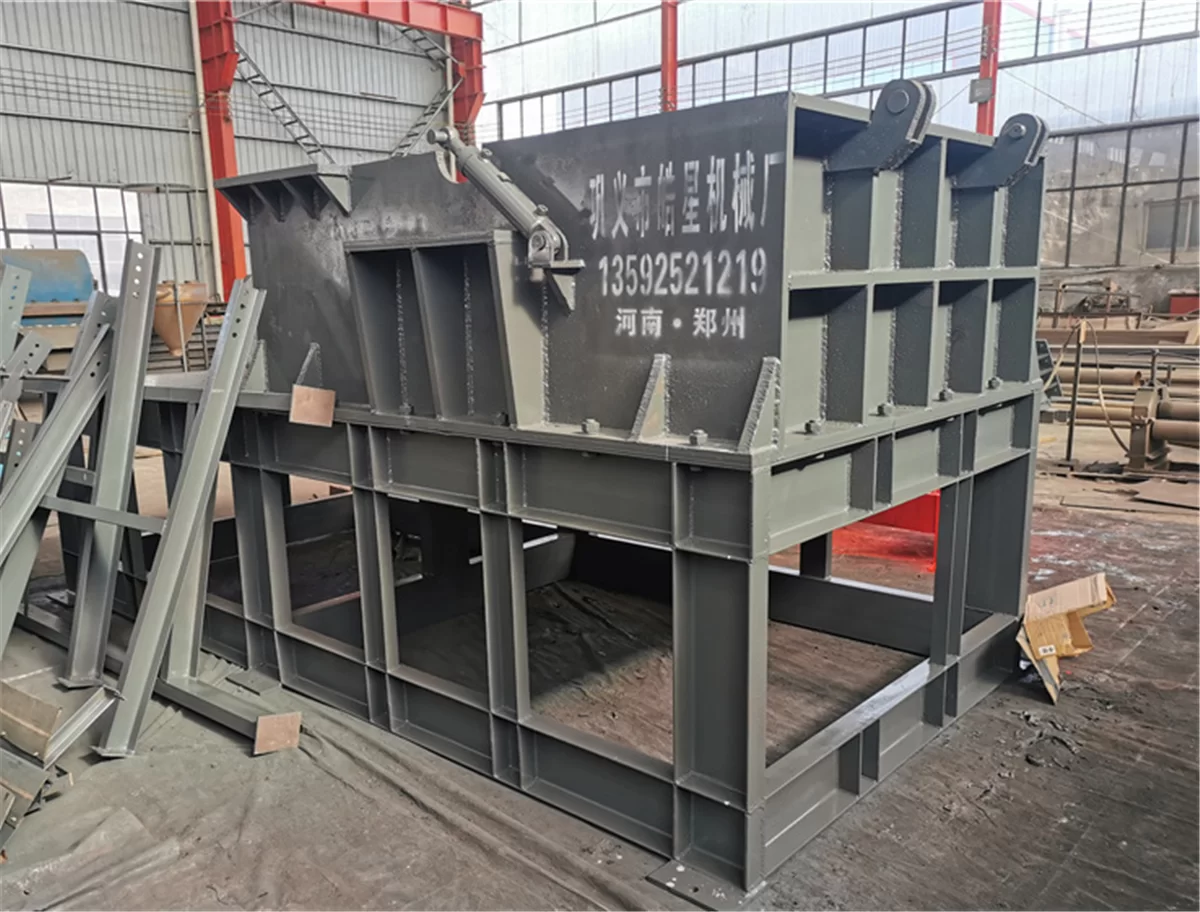

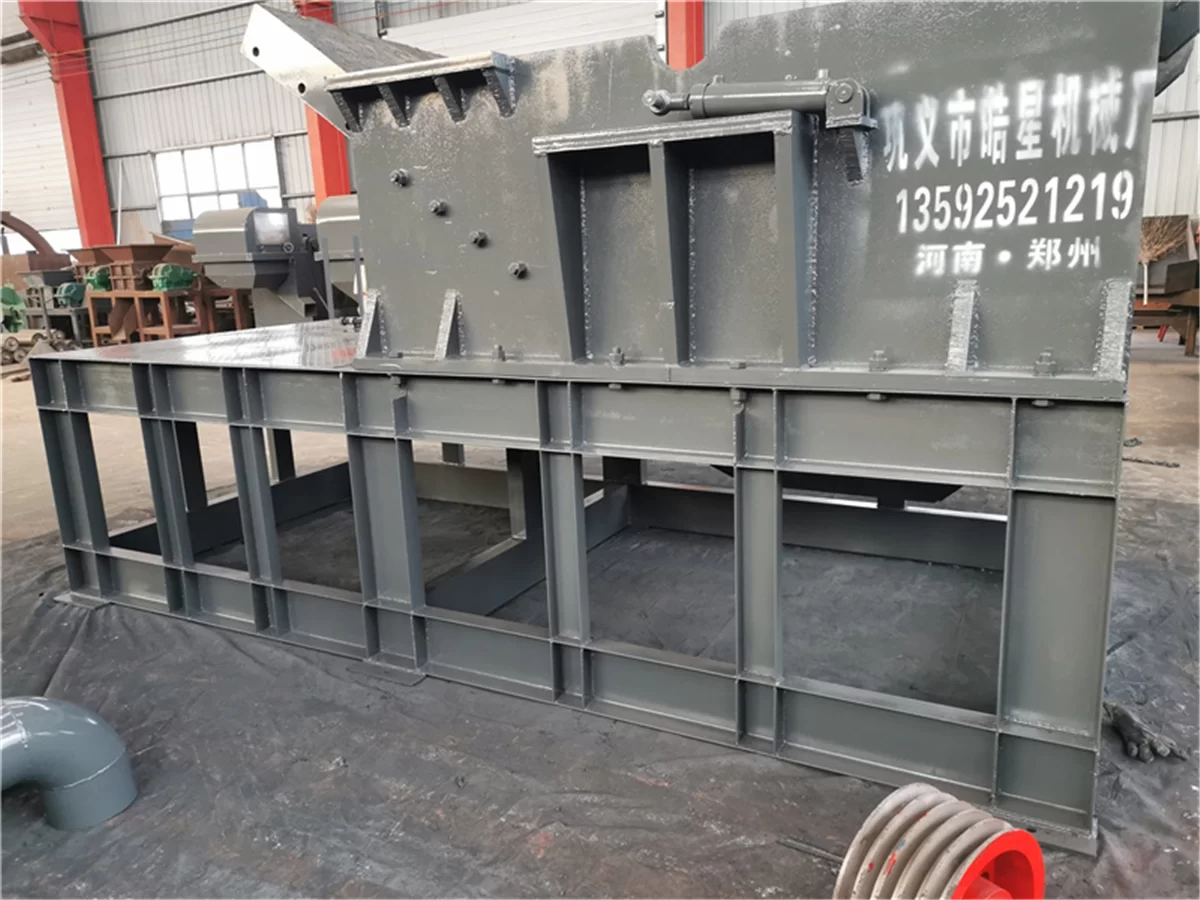

1600 Scrap Steel Crusher Base, Upper Cover and Hydraulic Opening Device Factory Photos
These factory photos show the base structure, upper cover, hydraulic opening device and motor installation area of a 1600 scrap steel crusher. These structural parts are important for the strength, stability, maintenance convenience and long-term operation of the crusher.
The 1600 scrap steel crusher is designed for processing scrap steel, light metal scrap, car body panels, steel sheets, paint buckets and mixed ferrous metal waste. During operation, the machine must withstand strong impact, vibration and continuous material feeding. Therefore, a heavy-duty base and reinforced upper cover are very important for stable crushing performance.
What These Photos Show
The photos mainly show the following structural details:
1. Heavy-Duty Crusher Base
The base of the 1600 scrap steel crusher is made with a reinforced welded steel structure. The strong base helps support the crusher body, rotor system, motor and other heavy components. A stable base can reduce vibration and improve the reliability of the whole crushing line.
2. Upper Cover Structure
The upper cover is an important part of the crushing chamber. It helps form a closed crushing space and protects the internal rotor, hammer heads and liner plates during operation. A strong upper cover also improves safety and helps keep the crushing process more stable.
3. Hydraulic Opening Device
The hydraulic opening device is installed on the crusher body to assist with opening the upper cover. This design makes maintenance, inspection and replacement of wear parts more convenient. When operators need to check the rotor, hammer heads, liner plates or screen area, the hydraulic opening device can reduce manual labor and improve maintenance efficiency.
4. Motor Installation Area
Some photos also show the electric motor installation position beside the crusher body. The motor provides power for the crusher and works together with the transmission system to drive the rotor. Proper motor installation and alignment are important for stable operation and longer service life.
Why This Structure Matters
For scrap steel crushing, the machine often handles irregular and heavy materials. A strong welded base, reinforced cover and maintenance-friendly hydraulic opening system help improve the crusher’s durability and reduce downtime.
The hydraulic opening structure is especially useful for daily maintenance. It allows easier access to the crushing chamber and helps customers check key wear parts more safely and efficiently.
Suitable Applications
This 1600 scrap steel crusher can be used for:
- Scrap steel recycling
- Light metal scrap crushing
- Car body panel crushing
- Steel sheet processing
- Paint bucket crushing
- Mixed ferrous metal recycling
- Scrap metal crushing and sorting lines
Related Equipment
The 1600 scrap steel crusher is usually used together with a chain plate conveyor, discharge conveyor, magnetic separator, vibrating screen, eddy current separator and dust collection system. Haoxing Machinery can provide complete scrap steel crushing and sorting solutions according to the customer’s material type, capacity requirement and final output size.
Contact Us
If you need a 1600 scrap steel crusher or a complete scrap metal recycling line, please send us your material photos, feeding size, required capacity and final output requirements. Our engineers can recommend a suitable machine model and production line configuration.
