Factory Dispatch Spotlight: Haoxing HXPS1600 Metal Crusher with Chain Plate Conveyor Loaded for Shipment
Shipment Overview
Haoxing Machinery recently completed final assembly and quality inspection of a HXPS1600 Metal Crusher system at our Gongyi production base. This robust hammer mill unit, paired with a heavy-duty chain plate conveyor for infeed handling, has been carefully loaded onto transport vehicles and is now ready for dispatch to the customer's recycling facility. The accompanying photographs capture the equipment during the loading process, showcasing the scale and solid construction of the HXPS1600 as it prepares for its journey to the job site.
Equipment Configuration in This Shipment
| Equipment | Model/Specs | Quantity | Remarks |
|---|---|---|---|
| Chain Plate Conveyor (Infeed) | LB1200×10m, 11kW | 1 unit | Heavy-duty slat conveyor for bulky metal scrap |
| Metal Crusher | HXPS1600, 280kW | 1 unit | Hammer mill with hydraulic lid opener |
| Discharge Belt Conveyor | B1000×12m, 7.5kW | 1 unit | Transports crushed material to next stage |
| Overband Magnetic Separator | CX800, 4kW | 1 unit | Removes ferrous contaminants |
| Pulse Jet Baghouse Dust Collector | DMC-200, 15kW | 1 unit | Captures airborne dust during operation |
| Centralized PLC Control Cabinet | Automated | 1 set | Full line control and monitoring |
Why Chain Plate Conveyor for Metal Scrap Feeding?
Metal scrap—especially heavy, irregular pieces like baled steel, cast iron, and mixed demolition waste—demands a feeding solution that can withstand extreme impact and abrasion. The customer selected the LB1200 chain plate conveyor for the following reasons:
Impact Tolerance: Welded steel slats absorb the shock of heavy scrap dropped from loaders without deformation or damage.
Cut Resistance: Sharp metal edges that would quickly shred a rubber belt are easily handled by the chain plate surface.
Reliable Traction: Positive chain drive ensures consistent, slip-free feeding into the crusher, maintaining steady throughput.
Low Downtime: Individual slats can be replaced independently if damaged, minimizing maintenance interruptions.
Pre-Shipment Quality Assurance
Before loading, the entire HXPS1600 system underwent thorough factory acceptance testing at our facility. Key verification steps included:
Rotor dynamic balancing test to ensure smooth, vibration-free operation.
Hydraulic lid opener functional check for convenient maintenance access.
Chain plate conveyor drive alignment and speed calibration.
PLC system I/O verification and safety interlock testing.

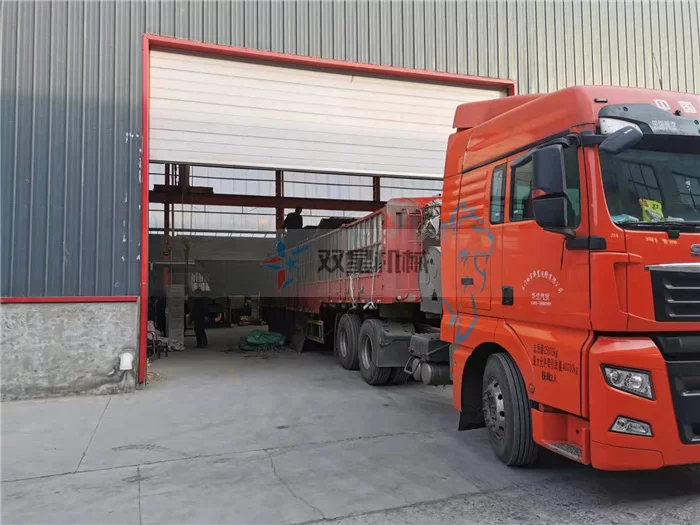

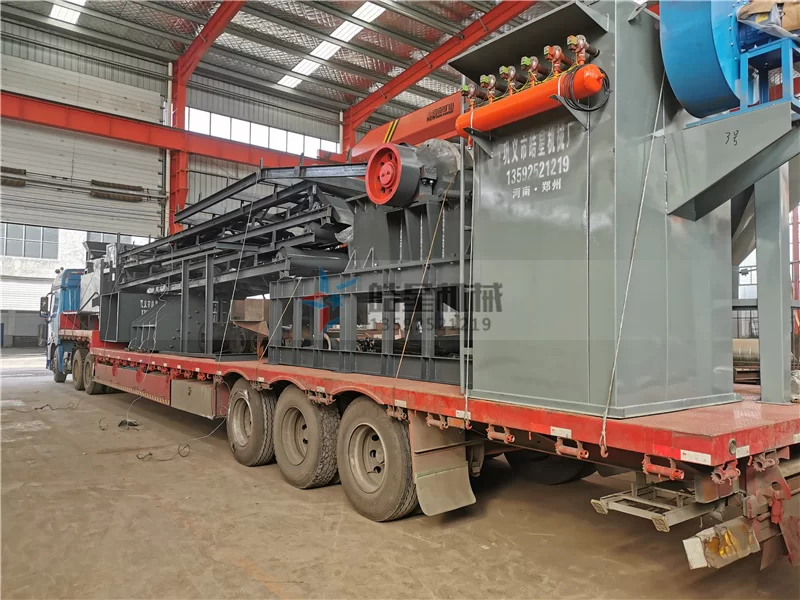

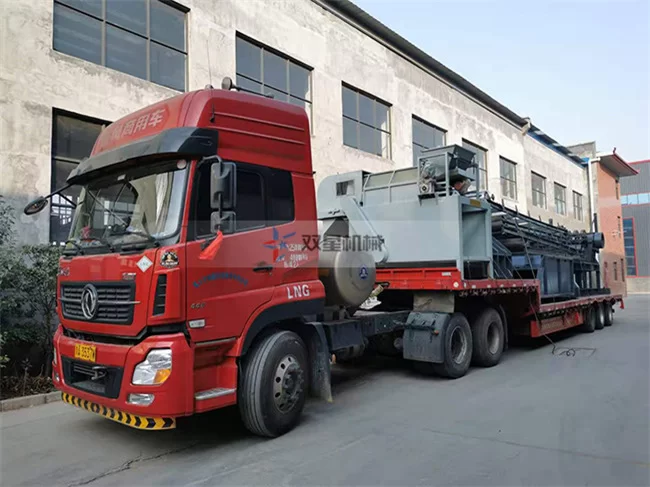

The photographs show the equipment securely fastened to flatbed trailers, with protective coverings applied to critical components. The distinctive Haoxing orange finish is clearly visible, reflecting our commitment to robust industrial design.
Expected On-Site Performance
Processing Capacity: Designed to handle 15–20 tons per hour of mixed metal scrap, including steel, iron, and aluminum.
Output Granule Size: Adjustable screen grate allows output size from 5–20 mm, producing dense, uniform metal granules.
Material Purity: Integrated magnetic separation removes ferrous and non-metallic impurities from the crushed product.
Operational Efficiency: Automated controls and robust construction reduce manual intervention and maintenance frequency.
Commitment to Reliable Equipment Delivery
This shipment of the HXPS1600 metal crusher with chain plate conveyor demonstrates Haoxing Machinery's capability to manufacture and deliver complete, heavy-duty recycling systems. From precision fabrication at our factory to secure loading and transport, every step is managed to ensure the equipment arrives ready for installation and productive operation. We look forward to this system contributing to our customer's metal recycling success.
