Factory photos of a magnetic drum separator used in a scrap metal recycling line, showing the standalone magnetic roller, belt conveyor magnetic separation structure and discharge connection for separating ferrous metals after crushing.
Magnetic Drum Separator for Scrap Metal Recycling Line Factory Photos
These factory photos show a magnetic drum separator used in a scrap metal recycling line. The equipment is designed to separate ferrous metals from crushed scrap metal materials after the crushing process.
The photos include a standalone magnetic drum and several views of the magnetic drum installed on a belt conveyor separation structure. This type of magnetic separation unit is commonly used after a scrap steel crusher, metal crusher or shredding system to improve material purity before further screening or sorting.
What These Photos Show

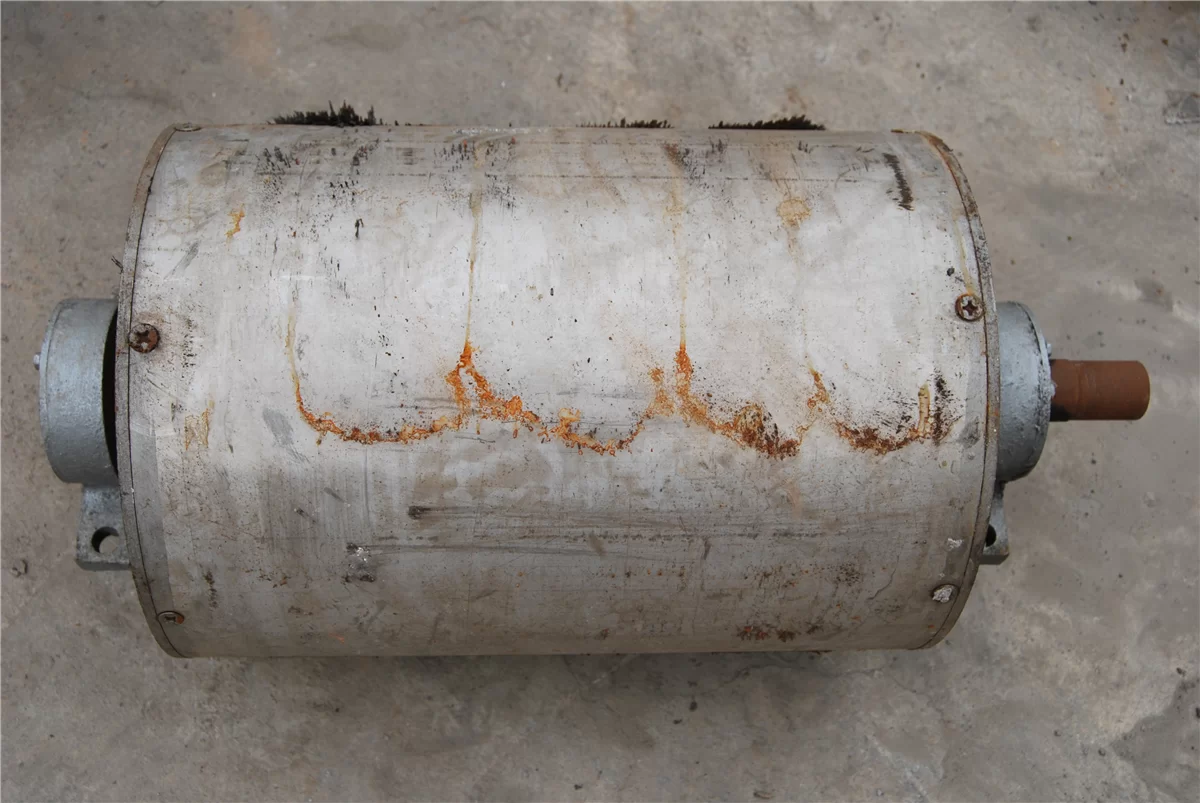

The first photo shows the magnetic drum as an individual component. Fine iron particles can be seen attached to the surface of the magnetic drum, which helps show the magnetic attraction effect.

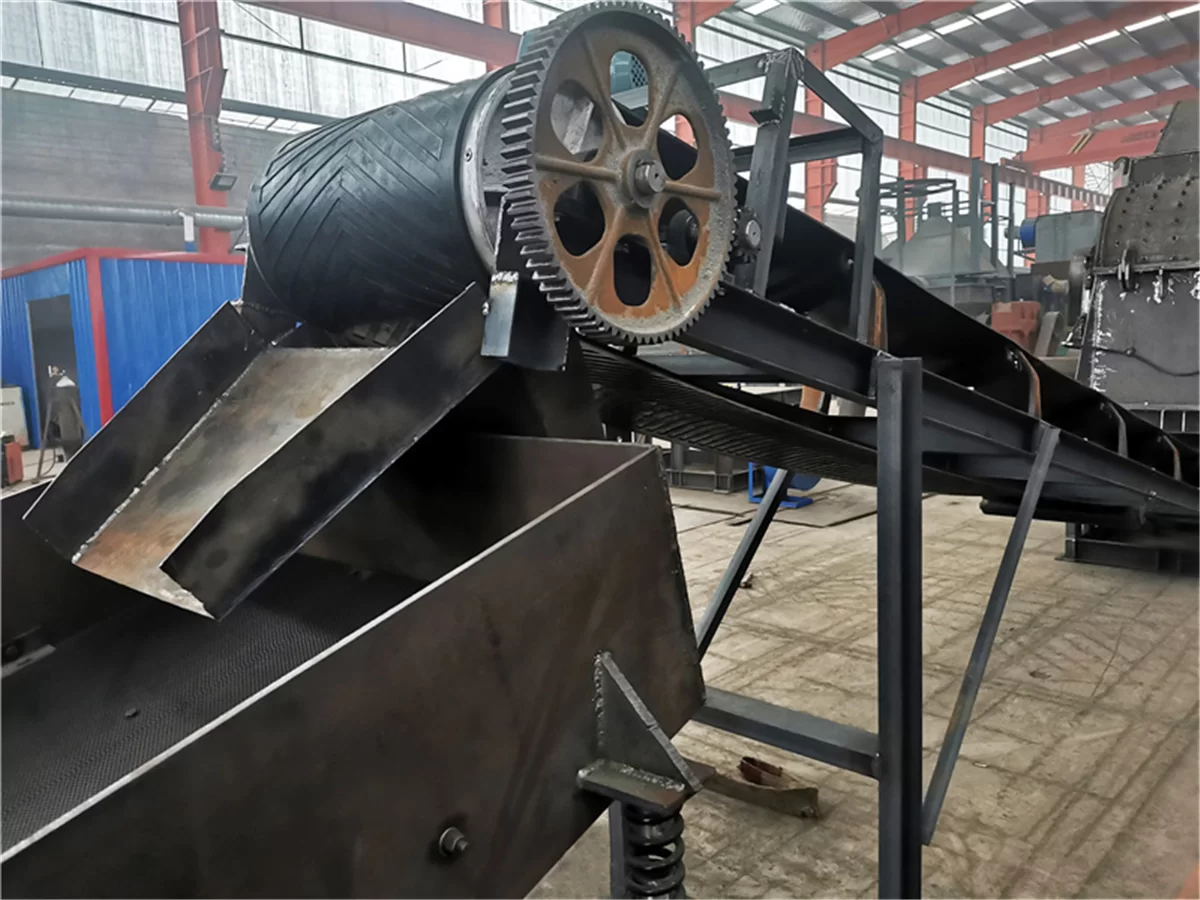

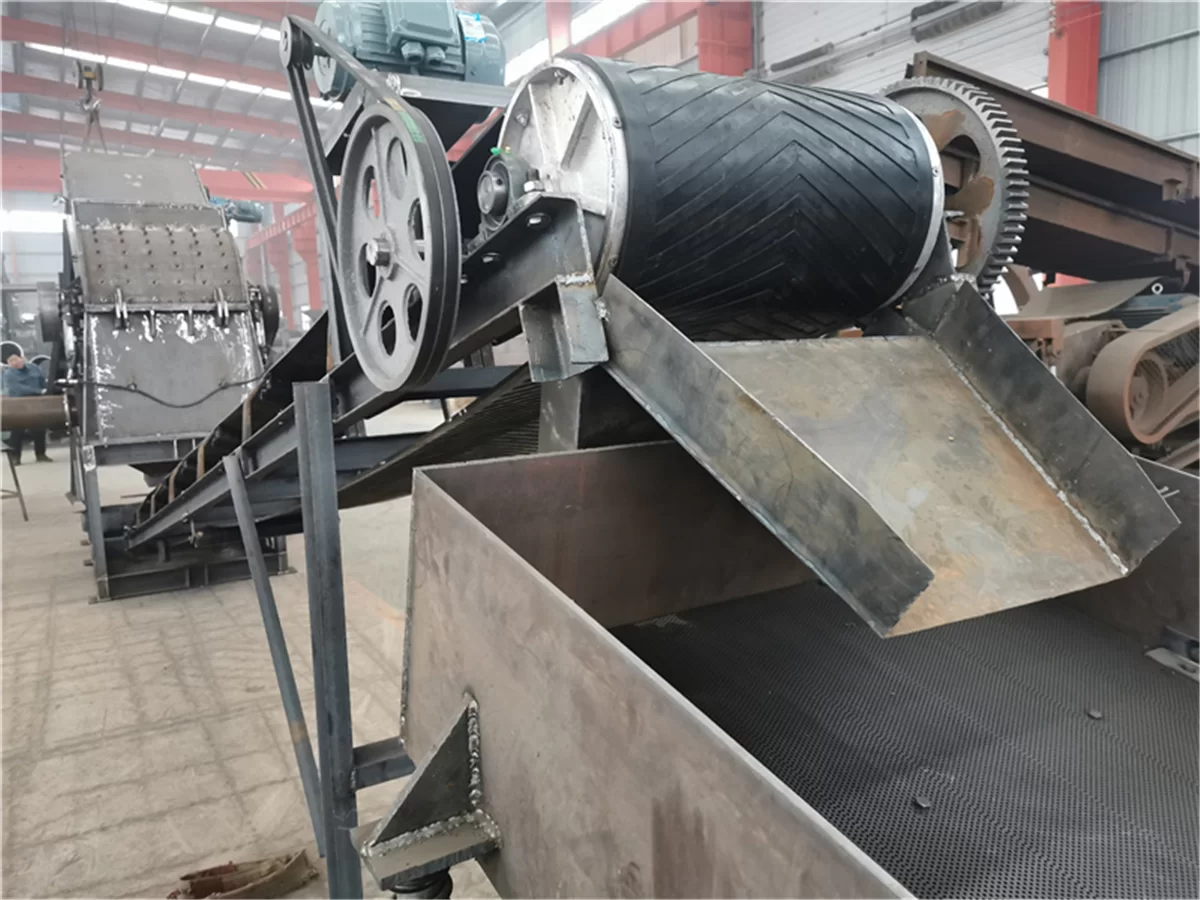

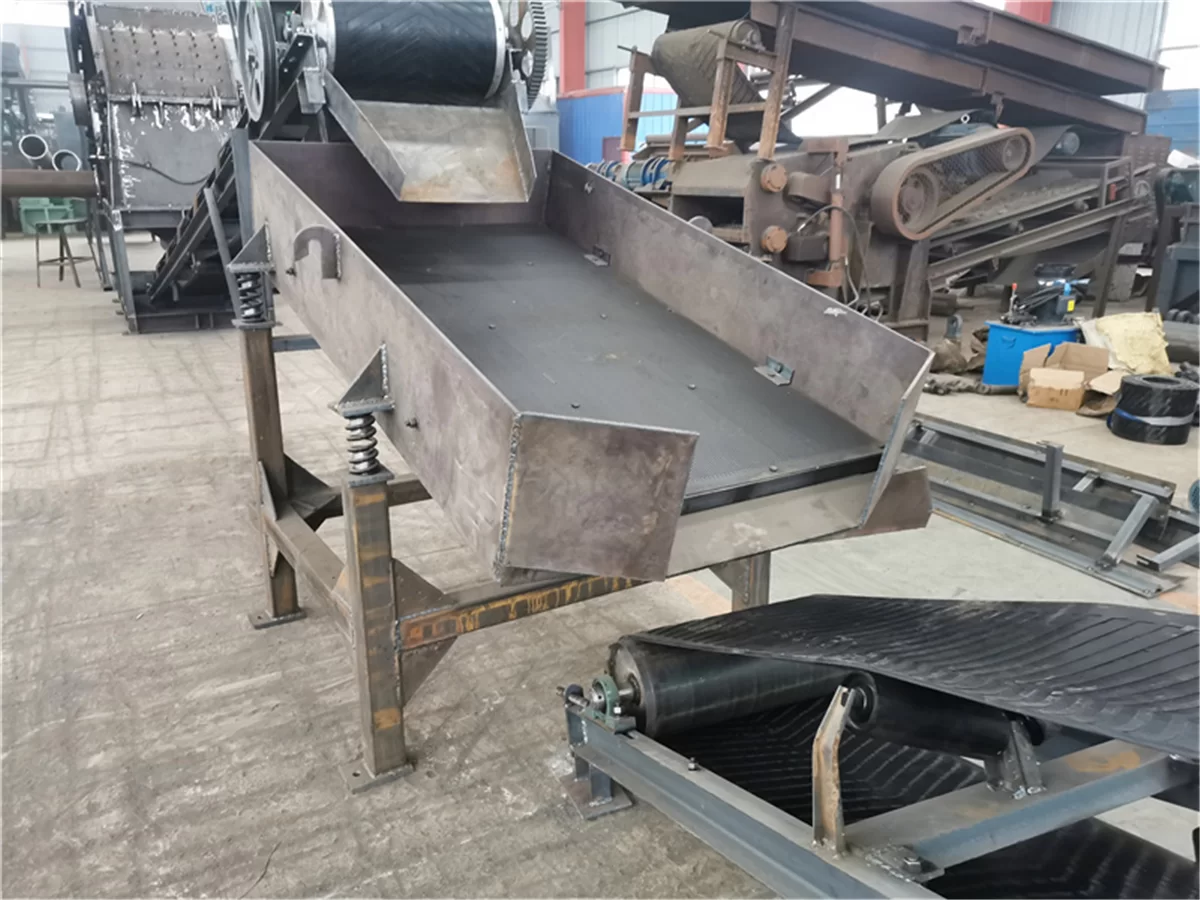

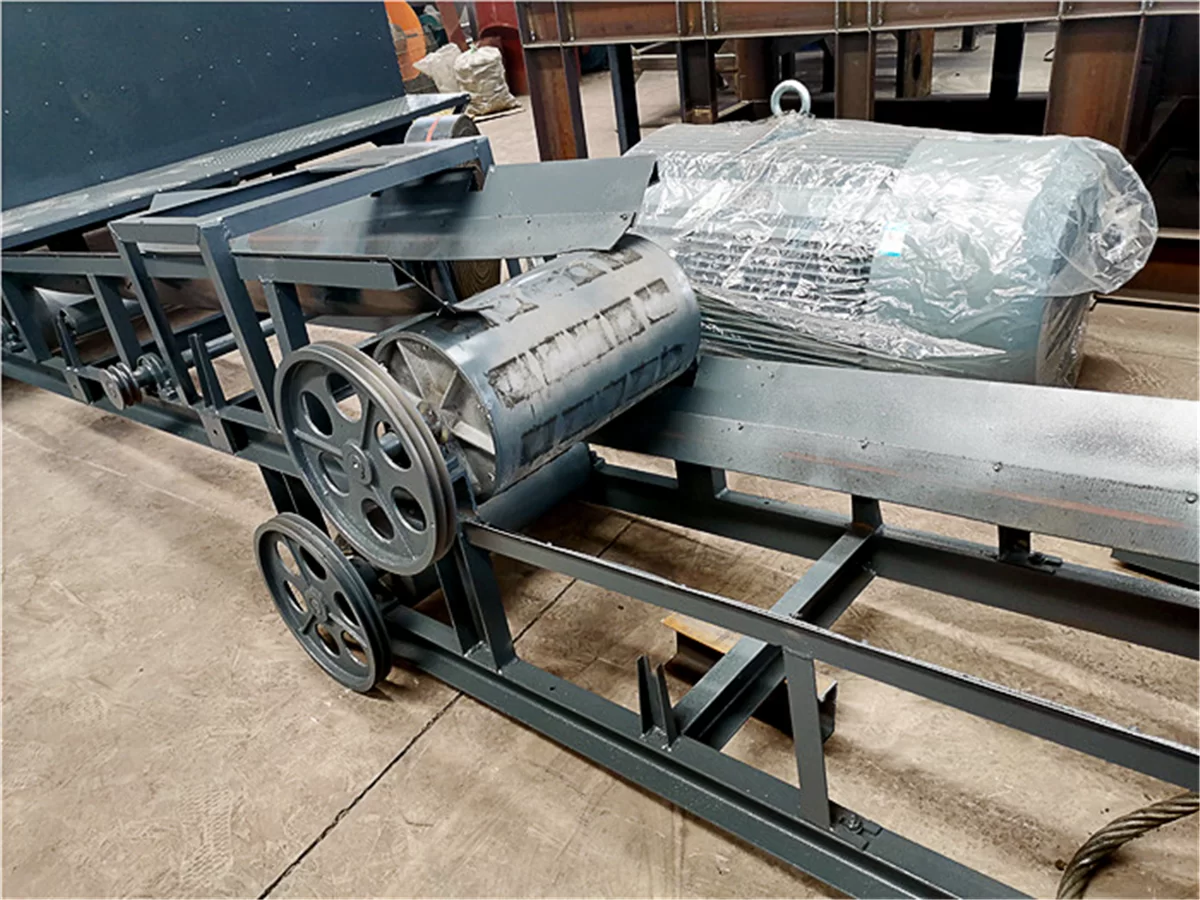

The other photos show the magnetic drum installed with a conveyor belt structure. During operation, crushed materials are conveyed through the magnetic separation area. Ferrous metals are attracted by the magnetic drum and discharged separately, while non-magnetic materials continue to the next processing stage.
Function of the Magnetic Drum Separator
The magnetic drum separator is used to separate iron and steel from mixed crushed materials. After scrap steel, light metal scrap, paint buckets, car body panels or mixed metal waste are crushed, the output may contain ferrous metals, non-ferrous metals, rubber, plastic, dust and other impurities.
The magnetic drum attracts ferrous materials and helps separate them from non-magnetic materials. This process can improve material cleanliness, reduce impurities and prepare the material for downstream screening, eddy current separation or manual sorting.
Belt Conveyor Magnetic Separation Structure
When the magnetic drum is installed on the conveyor structure, it works together with the belt to guide materials through the separation area. This layout is suitable for continuous production lines and helps maintain stable material flow.
In some recycling lines, the material after magnetic separation can be connected to downstream screening equipment for particle size classification. This helps improve the overall sorting efficiency of the complete scrap metal recycling system.
Suitable Applications
This magnetic drum separator can be used in:
- Scrap metal recycling lines
- Scrap steel crushing and sorting lines
- Light metal scrap processing lines
- Paint bucket crushing lines
- Car body panel recycling lines
- Mixed metal waste sorting systems
Related Equipment
A complete scrap metal recycling line can include a scrap steel crusher, chain plate conveyor, magnetic drum separator, vibrating screen, eddy current separator, dust collection system and discharge conveyor.
Haoxing Machinery can provide customized recycling solutions according to the customer’s raw material, capacity requirement and final output standard.
Contact Us
If you need a magnetic drum separator, metal sorting equipment or a complete scrap metal recycling line, please send us your material photos, feeding size, required capacity and final sorting requirement. Our engineers can recommend a suitable equipment configuration for your project.
