Project Overview
This Factory Workshop article shows real photos of a baled scrap shredder, including the feeding opening, shredding knife box, gear reducer motor, connection between reducer and shredding box, and bottom power motor. These details help customers understand the structure and configuration of a baled scrap metal shredder.
In scrap metal recycling yards, many materials are not loose scrap. They are compressed into dense metal bales, commonly called baled scrap. These materials are compact, heavy and irregular in shape, so the shredder must have a strong feeding structure, heavy-duty shredding box, stable torque and reliable drive system.
This Factory Workshop article shows real photos of a baled scrap shredder. The photos include the feeding opening, shredding knife box, gear reducer motor, the connection between the reducer and shredding box, and the bottom power motor. These details help customers understand the real structure of a baled scrap shredder before purchasing.
Large Feeding Opening for Baled Scrap
The feeding opening is one of the first details customers check when choosing a baled scrap metal shredder. For compressed scrap metal bales, the feeding area must be wide and strong enough to receive materials from a forklift, grab crane or conveyor.
A suitable feeding opening helps reduce material blockage and improves continuous feeding efficiency. For scrap yards, recycling plants and metal processing lines, stable feeding is the first step to improving the whole production process.
Suggested image caption:

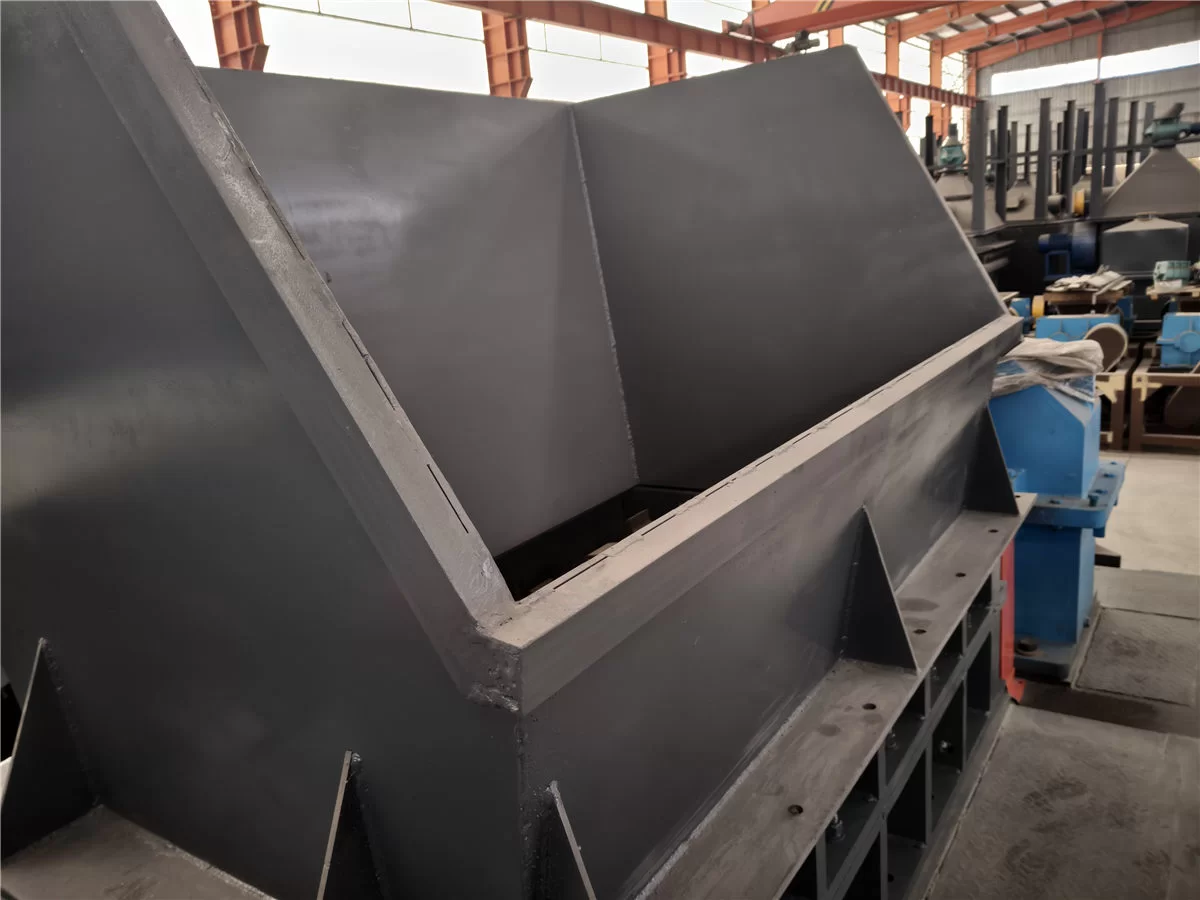

Feeding opening photo: The baled scrap shredder uses a wide feeding design for continuous loading of scrap metal bales.
Heavy-Duty Shredding Box
The shredding box is the core working part of a scrap metal bale shredding machine. After baled scrap enters the shredding chamber, the cutter shafts and blades tear, shear and separate the compressed metal materials.
Compared with loose light scrap, baled scrap creates stronger impact during shredding. Therefore, the shredding box must be strong enough for long-term operation. From the workshop photo, the structure is compact and solid, suitable for processing compressed scrap metal materials.
This type of metal bale shredder can be used for:
Scrap steel bales
Tinplate bales
Color steel sheet bales
Aluminum scrap bales
Metal offcut bales
Light scrap metal bundles
Car shell bales
Mixed scrap metal bales from recycling yards
Suggested image caption:

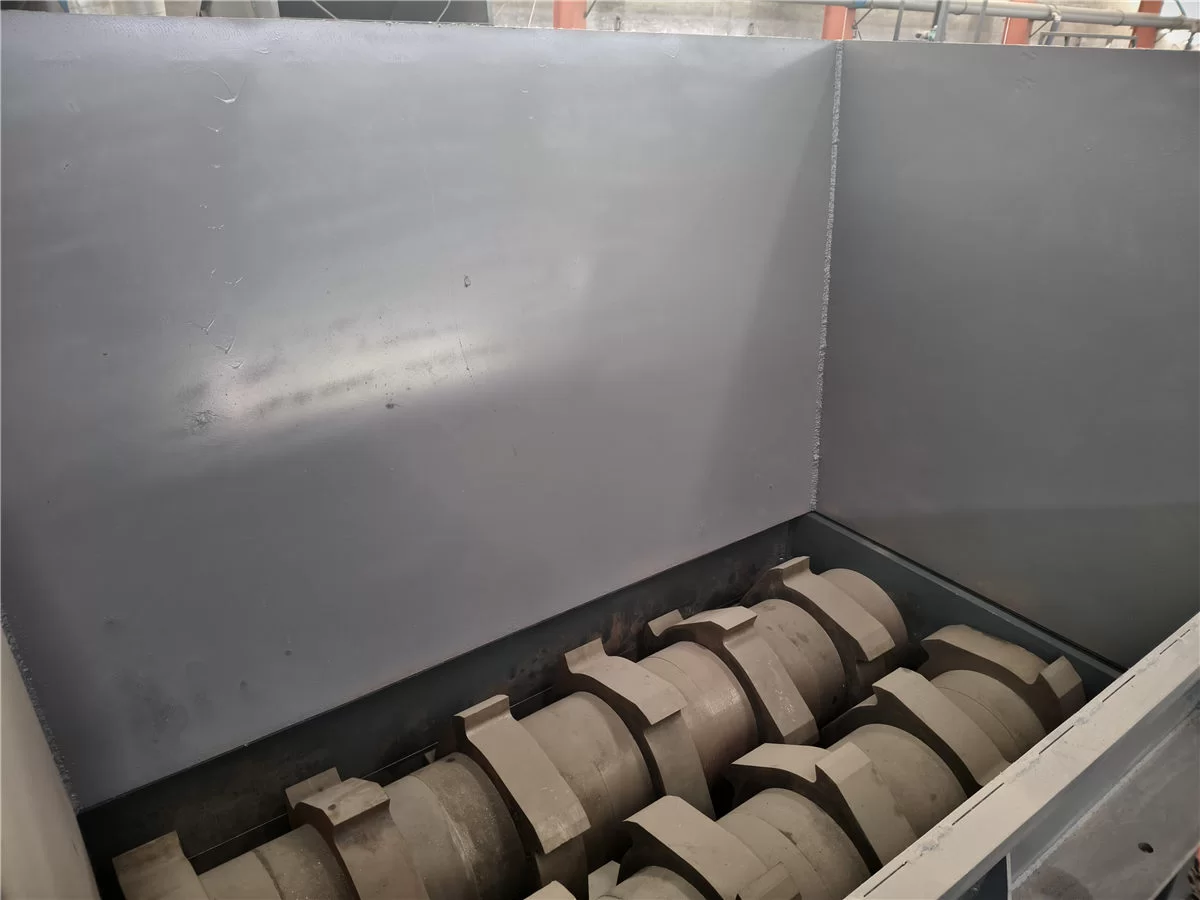

Shredding box photo: Heavy-duty shredding chamber designed for baled scrap, scrap metal bales and compressed metal materials.
Gear Reducer Motor for Stable Torque
A baled scrap shredder does not rely only on high speed. It needs low speed and high torque to bite into dense metal bales. The gear reducer motor lowers the rotating speed and increases output torque, helping the cutter shafts work more steadily.
The reducer motor shown in the photo is arranged in a compact position, which is convenient for inspection and maintenance. For a baled scrap metal shredder, the matching of motor power and reducer torque is very important. If the torque is not enough, the machine may stop, jam or lose processing efficiency. Stable torque helps the shredder handle tough scrap materials more smoothly.
Suggested image caption:
Gear reducer motor photo: The reducer motor provides stable torque for shredding baled scrap and compressed metal materials.
Connection Between Reducer and Shredding Box
The connection between the reducer motor and the shredding box is an important part of the transmission system. Power is transferred from the motor to the reducer and then to the cutter shafts inside the shredding box.
A stable connection helps reduce vibration, noise and power loss during operation. From the workshop photo, the transmission layout is clear and compact. This design is helpful for daily checks, maintenance and long-term use.
For customers, this detail is worth checking. The performance of a scrap metal bale shredding machine depends not only on the machine size, but also on the matching of the shredding box, reducer, motor and frame.
Suggested image caption:

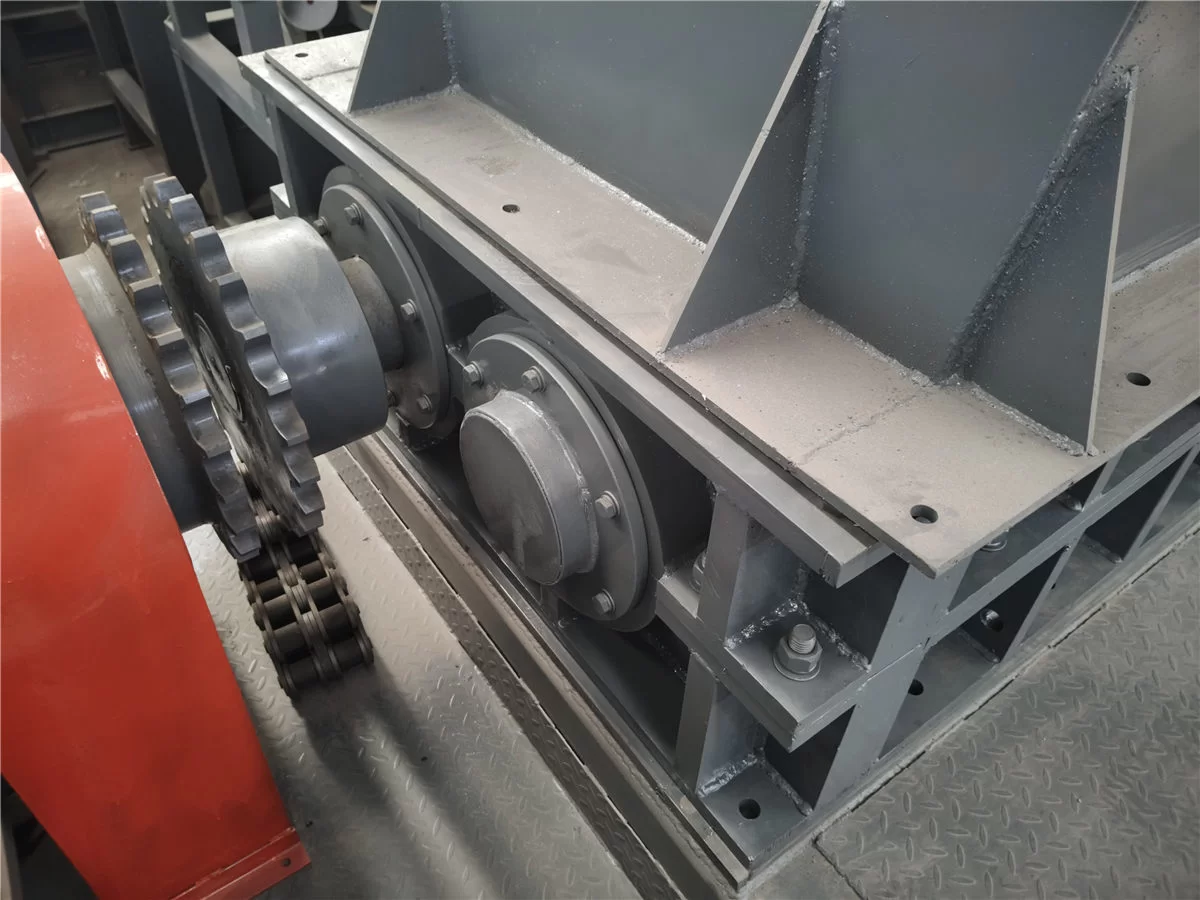

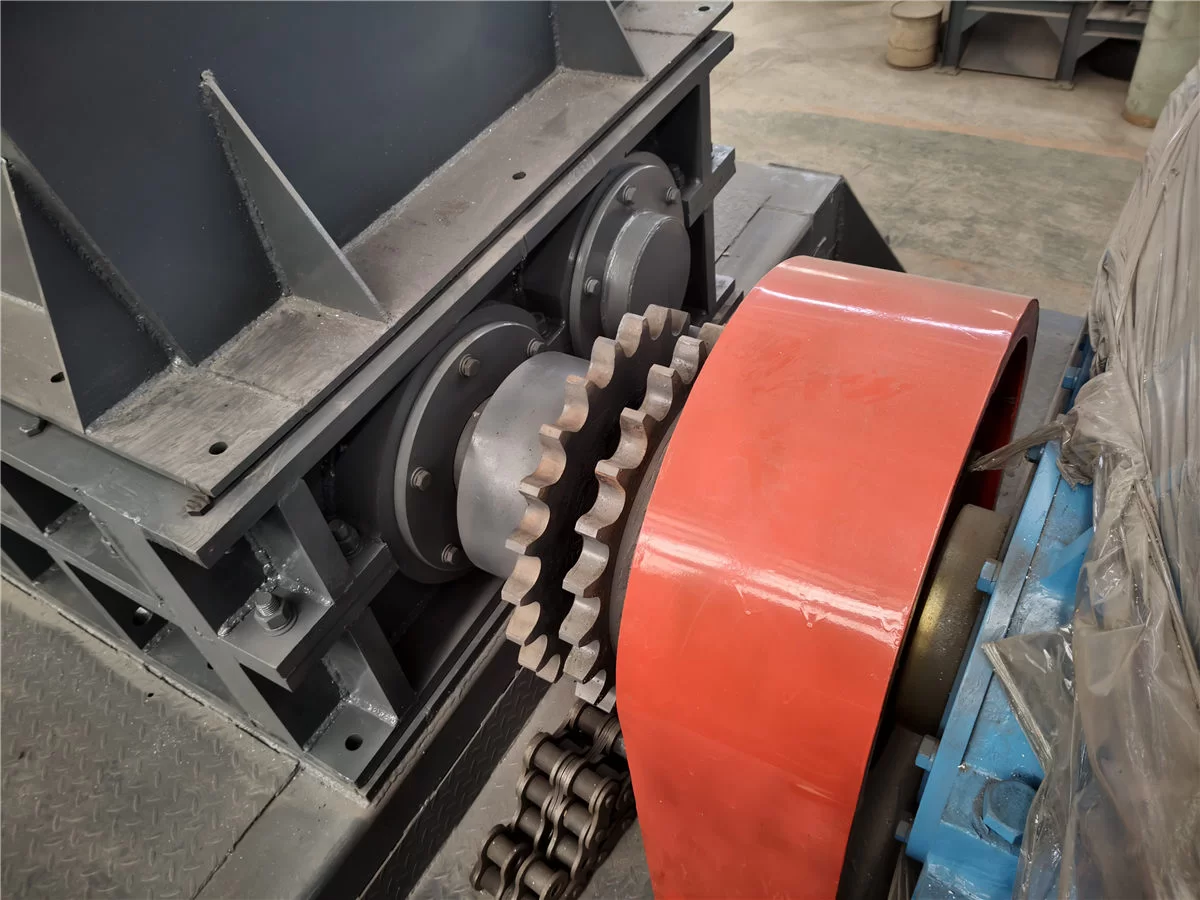

Reducer and shredding box connection photo: Compact transmission structure for stable power transfer to the cutter shafts.
Bottom Power Motor Details
The bottom photo shows the power motor installation area of the shredder. A stable motor base helps the machine run smoothly and makes the whole structure stronger.
The power motor is the main source of continuous operation. According to different capacity requirements, the shredder can be equipped with different motor powers. For baled scrap processing, choosing the right motor power is important. It should meet the shredding demand while also considering energy consumption and long-term operation cost.
Suggested image caption:

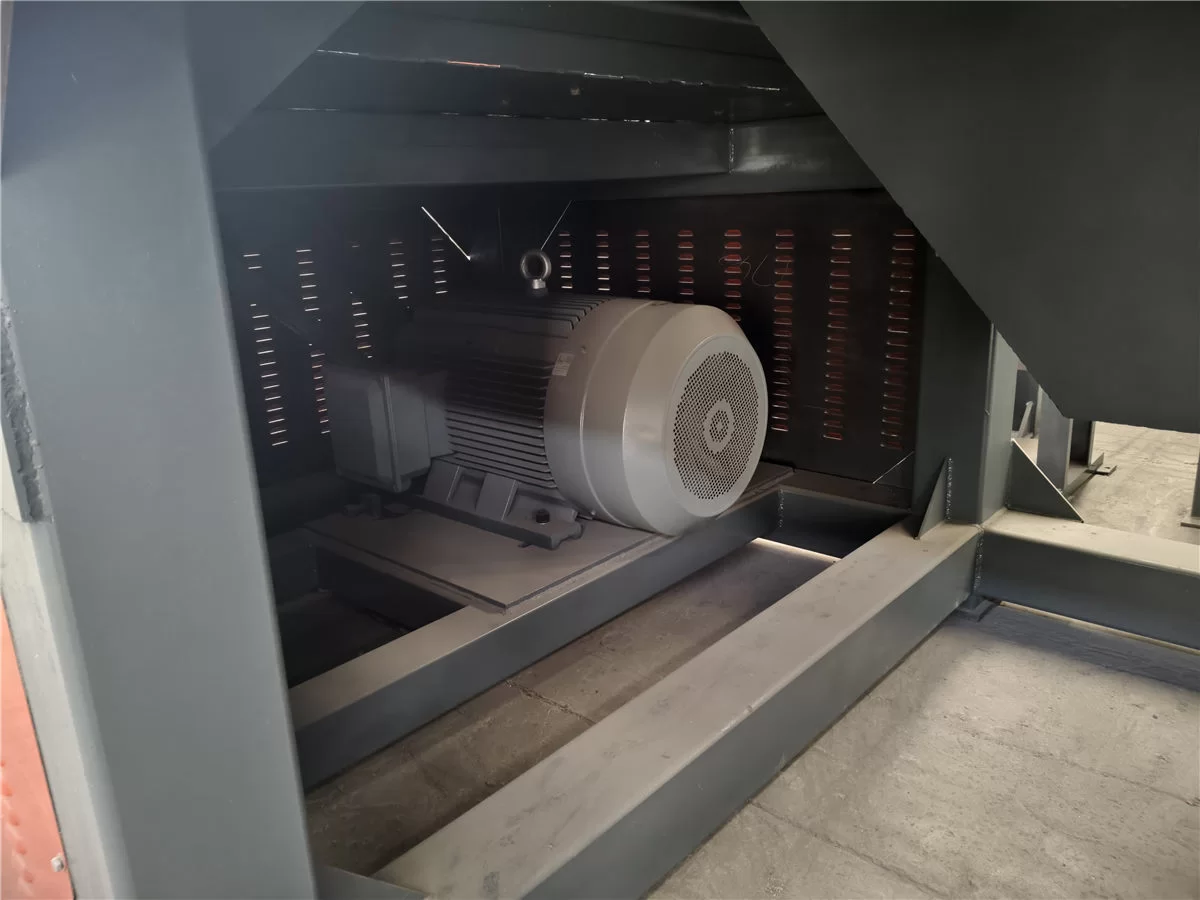

Bottom power motor photo: The power motor is installed firmly to support continuous operation of the baled scrap shredder.
Suitable Applications
This baled scrap shredder is suitable for many recycling applications, including:
Scrap metal recycling yards
Metal bale processing plants
Scrap sorting centers
Recycling equipment projects
Pre-shredding before scrap metal crushing lines
Aluminum, steel sheet and light scrap bale processing
Recycling machinery dealers and project contractors
If the main raw materials are baled scrap, scrap metal bales or compressed metal bundles, a light-duty shredder may not be suitable for continuous operation. A heavy-duty metal bale shredder can improve shredding efficiency and reduce equipment failure during long-term use.
Why Factory Workshop Photos Matter
Before purchasing a machine, many customers want to see not only the full equipment photo, but also the real details of key parts. Compared with rendered images or promotional pictures, workshop photos are more direct and reliable.
The feeding opening, shredding box, gear reducer motor, transmission connection and bottom power motor are all important parts of a baled scrap shredder. These real photos help customers better understand the machine structure and choose the right model according to their own materials.
If you are looking for a machine to process baled scrap, scrap metal bales, metal scrap bundles or compressed scrap materials, please contact us for a suitable equipment solution, capacity recommendation and quotation.
